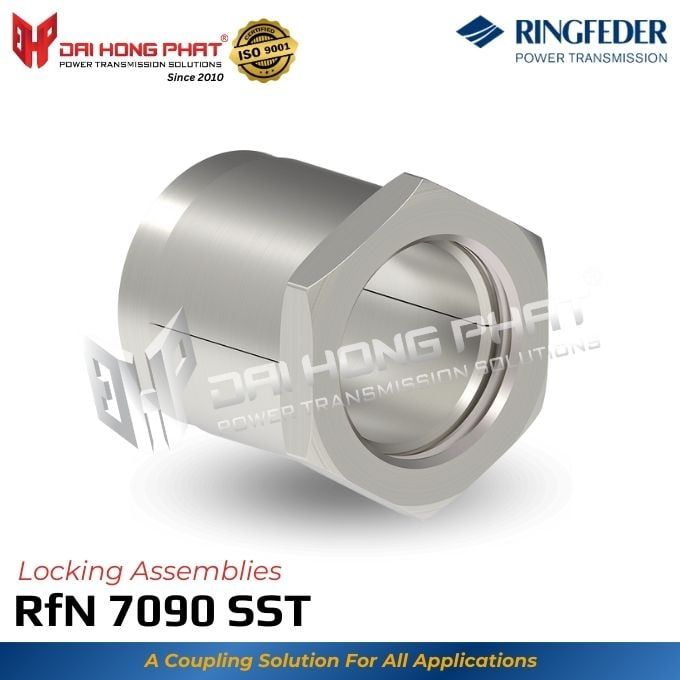

Quick Locking Assemblies RfN 7090 SST

Key Features of Quick Locking Assemblies RfN 7090 SST

The Ringfeder RfN 7090 SST is designed to enable precise axial and radial positioning of components with minimal effort. It also known as "khóa trục RfN 7090 SST". Thanks to its advanced engineering, this coupling allows for accurate adjustments and alignments in just a few seconds, requiring only simple operations. Its ease of use and high precision make it ideal for applications that demand exact positioning, ensuring optimal performance and reliability of your machinery.

The RfN 7090 SST's robust design and user-friendly features provide a reliable solution for achieving precise alignment and positioning in various industrial settings. Whether used in high-speed applications or under heavy loads, this coupling ensures consistent and accurate results, contributing to the efficiency and longevity of your equipment.

- Available in 18 different sizes, it offers versatility and adaptability for various industrial needs.

- The self-centering feature ensures that the components are perfectly aligned, reducing the risk of misalignment and enhancing operational efficiency.

- Specifications Breakdown:

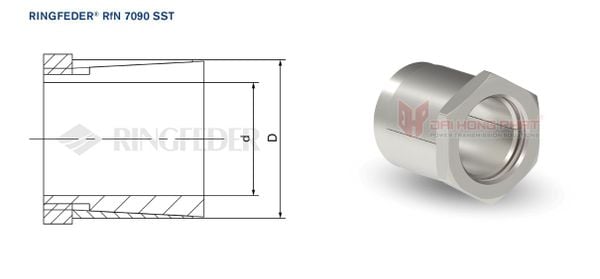

+ Inner Diameter (d): 4 to 20 mm, allows the product to accommodate different shaft sizes, making it suitable for various types of machinery.

+ Outer Diameter (D): 8 to 28 mm, ensures compatibility with different equipment configurations, providing a snug fit and stable connection.

+ Overall Length (L): 15 to 28 mm, allows for flexibility in installation, making the product suitable for systems with different spatial constraints.

+ Torque (T): 3 to 31 Nm, ensures that the product can handle various high-torque applications, providing reliable performance and durability.

Learn more: The development of Locking Assemblies

Product Specifications of Quick Locking Assemblies RfN 7090 SST

RfN 7090 SST Catalogue	RfN 7090 SST Installation Instruction

Why Choose Ringfeder’s RfN 7090 SST Series?

Ringfeder RfN 7090 SST is widely used in the medical field:
- Ringfeder RfN is designed to suit medical applications that require compact dimensions and high precision.
- Thanks to the operating mechanism through a central nut, the installation and disassembly process becomes simple and quick.
- The design of Ringfeder RfN ensures that adverse deformations are minimized, helping to protect and increase the service life of related components.
The RfN 7090 SST is also used in high-tech applications such as: reducers, conveyor rollers, hybrid motors, drive chains, packaging machines, and linear slide rails.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder RfN 7090 SST throughout Vietnam.

Choosing the Quick Locking Assemblies RfN 7090 SST means investing in a solution that seamlessly blends precision, durability, and cost-efficiency. Designed to meet the demands of industrial equipment and mechanical systems, this product guarantees exceptional performance and reliability.

In Vietnam, Dai Hong Phat Corp proudly serves as the authorized distributor for Ringfeder Germany's locking assemblies, ensuring access to genuine, high-quality products backed by professional support and expertise.

---------------------------------------------------------------------------------------
