Key Features of Locking Assemblies RfN 7003

Locking Assemblies RfN 7003 - Two-Part Series with Slotted Single Taper as well as without Flange

Wide Range of Sizes:
- Inner Diameter (d): 19-400 mm
- Outer Diameter (D): 47-495 mm
- Overall Length (L): 34-137 mm

High Torque Capacity:
- Supports torque from 355 Nm to an impressive 512,625 Nm, making it ideal for demanding power transmission tasks.

Precision Engineering:
- The self-centering feature ensures accurate positioning.
- The slotted design accommodates larger tolerances, making installation efficient and precise.

Ease of Installation and Removal:
- The hub aligns slightly towards the screw head during mounting.
- Disassembly requires only a few release screws, saving time and effort.

Enhanced Durability:
- Optimized flange geometry minimizes deformation, outperforming standard products in maintaining integrity under load.

Locking Assemblies RfN 7003 product Specifications

RfN 7003 Catalogue	RfN 7003 Installation Instruction

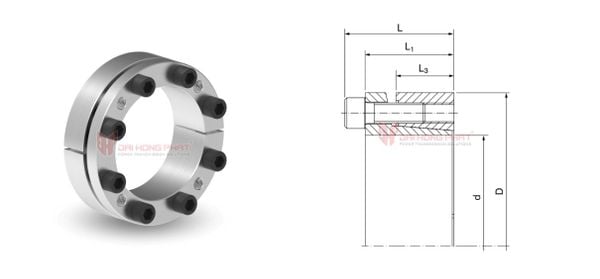

Dimensions [mm]				Transmissible torques [Nm]		Locking screws
d x D	L	L1	L3	T	TA	nSc	DG
19x47	34	28	17	355	14	5	M6
20x47	34	28	17	360	14	5	M6
22x47	34	28	17	400	14	5	M6
24x50	34	28	17	440	14	5	M6
25x50	34	28	17	560	14	6	M6
28x55	34	28	17	625	14	6	M6
30x55	34	28	17	650	14	6	M6
32x60	34	28	17	950	14	8	M6
35x60	34	28	17	1050	14	8	M6
38x65	34	28	17	1140	14	8	M6
40x65	34	28	20	1200	14	8	M6
42x75	41	33	20	2030	35	7	M8
45x75	41	33	20	2180	35	7	M8
48x80	41	33	20	2330	35	7	M8
50x80	41	33	20	2430	35	7	M8
55x85	41	33	20	3050	35	8	M8
60x90	41	33	20	3350	35	8	M8
65x95	50	40	20	4080	35	8	M8
70x110	50	40	20	6280	70	8	M10
75x115	50	40	24	6680	70	8	M10
80x120	50	40	24	7130	70	8	M10
85x125	50	40	24	8750	70	9	M10
90x130	50	40	24	9080	70	9	M10
95x135	50	40	24	10580	70	10	M10
100x145	56	44	26	13380	125	8	M10
110x155	56	44	26	14580	125	8	M10
120x165	56	44	26	17880	125	9	M12
130x180	64	52	34	25950	125	12	M12
140x190	68	54	34	26950	190	9	M14
150x200	68	54	34	32950	190	10	M14
160x210	68	54	34	37950	190	11	M14
170x225	78	64	44	44950	190	12	M14
180x235	78	64	44	46950	190	12	M14
190x250	78	64	44	64059	190	15	M14
200x260	78	64	44	67430	190	15	M14
220x285	88	72	50	82211	290	12	M16
240x305	88	72	50	112106	290	15	M16
260x325	88	72	50	145737	290	16	M16
280x355	102	84	60	168715	400	16	M16
300x375	102	84	60	203362	400	18	M16
320x405	121	101	74	287020	580	18	M20
340x425	121	101	74	355785	580	21	M20
360x455	137	115	86	395461	780	18	M22
380x475	137	115	86	487003	780	21	M22
400x495	137	115	86	512635	780	21	M22

Why Choose Locking Assemblies RfN 7003?

The Locking Assemblies RfN 7003 are ideal for industries seeking robust and economical solutions. From machinery manufacturing to power transmission systems, these assemblies deliver consistent performance, even in high-stress environments. Their innovative design not only enhances functionality but also extends the lifespan of connected components.

Authorized distributor for Ringfeder Germany In Viet Nam

By choosing the Locking Assemblies RfN 7003, you invest in a solution that combines precision, durability, and cost-efficiency. Whether for industrial equipment or mechanical systems, this product ensures optimal performance and reliability.

In Viet Nam, Dai Hong Phat is an authorized distributor for locking assambly Ringfeder Germany.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
