Locking Assemblies RfN 7005

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Features of Locking Assemblies RfN 7005

The Locking Assemblies RfN 7005 series, referred to as khớp khóa trục RfN 7005 in Vietnamese, offers a versatile and cost-effective solution for secure and efficient hub connections.

- Self-Centering Design: Guarantees precise alignment, minimizing wear and extending the lifespan of the components.

- Wide Inner Diameter Range: Compatible with shafts measuring from 25 mm to 600 mm in diameter.

- Durable Outer Diameter Range: Fits hubs with diameters ranging between 55 mm and 695 mm.

- Compact Overall Length: Available in overall lengths from 46 mm to 224 mm, perfect for applications with limited space.

- High Torque Capacity: Capable of handling torque from 649 Nm up to an impressive 1.8 Mio. Nm, making it ideal for heavy-duty use.

Locking Assemblies RfN 7005 product Specifications:

RfN 7005 Catalogue	RfN 7005 Installation Instruction

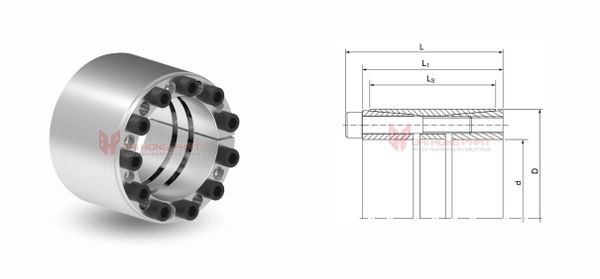

Dimensions [mm]			T	TA	Fax	Gw
dxD	L	L1	[Nm]		[KN]	[kg]
25x55	46	40	649	17	64	0.5
28x55	46	40	875	17	64	0.5
30x55	46	40	950	17	64	0.5
35x60	60	54	1300	17	74	0.7
38x65	61	55	1600	17	84	1.1
40x65	61	55	1680	17	84	1.1
42x75	62	54	2800	41	135	1.2
45x75	62	54	3050	41	135	1.1
48x80	74	66	3700	41	155	1.5
50x80	74	66	3950	41	155	1.4
55x85	74	66	4900	41	174	1.5
60x90	74	66	5900	41	193	1.6
65x95	74	66	6450	41	193	1.7
70x110	90	80	10950	83	313	3.1
75x115	90	80	11700	83	313	3.3
80x120	90	80	13750	83	344	3.5
85x125	90	80	16000	83	375	3.6
90x130	90	80	16900	83	375	3.8
95x135	90	80	17820	83	375	4
100x145	114	102	25725	145	561	6.1
110x155	114	102	30850	145	655	7.1
120x165	114	102	39275	145	774	10
130x180	130	116	50300	230	903	10.6
140x190	130	116	63200	230	967	11.2
150x200	130	116	72550	230	1032	11.9
160x210	130	116	82550	230	1221	17.6
170x225	165	149	103800	360	1308	18.5
180x235	165	149	117800	360	1395	21.4
190x250	165	149	132600	360	1400	22.4
200x260	165	149	140000	360	1570	26.6
220x285	166	150	173000	360	1820	28.7
240x305	162	146	218000	360	1920	31.2
260x325	162	146	250000	360	2550	46.8
280x355	197	177	360000	690	2850	49.7
300x375	197	177	428000	690	3000	60.5
320x405	197	177	534000	690	3140	63.9
340x425	197	177	670000	690	3730	86.8
360x455	224	202	742000	930	3900	91
380x475	224	202	852000	930	4260	97
400x495	224	202	894000	930	4260	100
420x515	224	202	937000	930	4260	105
440x535	224	202	980000	930	4260	109
460x555	224	202	1200000	930	5000	114
480x575	224	202	1240000	930	5000	119
500x595	224	202	1390000	930	5330	122.5
520x615	224	202	1440000	930	5330	128
560x655	224	202	1590000	930	5680	131
580x675	224	202	1705000	930	5680	138
600x695	224	202	1760000	930	5860	139

Why Choose Ringfeder’s RfN 7005 Series?

Three piece, self-centering, slitted locking assemblies for highest bending moments and torques. During assembly a minor axial displacement of the hub occurs. The front and rear thrust rings are separately released through release threads.

The RfN 7005 Locking Assemblies are widely used across various industries, including:

- Crusher

- Lifting machine

- Machine Tools

Authorized Distributor for Ringfeder Germany in Vietnam

Choosing the Locking Assemblies RfN 7005 means investing in a solution that seamlessly blends precision, durability, and cost-efficiency. Designed to meet the demands of industrial equipment and mechanical systems, this product guarantees exceptional performance and reliability.

In Vietnam, Dai Hong Phat proudly serves as the authorized distributor for Ringfeder Germany's locking assemblies, ensuring access to genuine, high-quality products backed by professional support and expertise.

---------------------------------------------------------------------------------------
