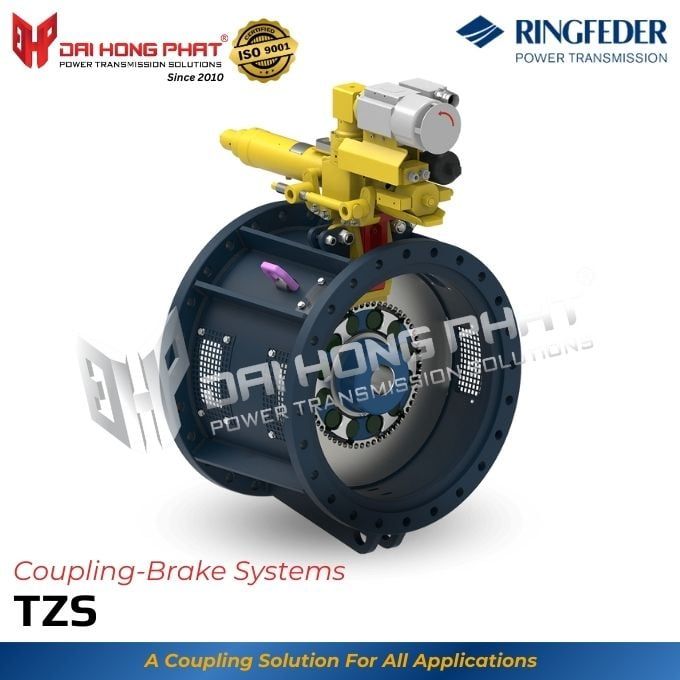

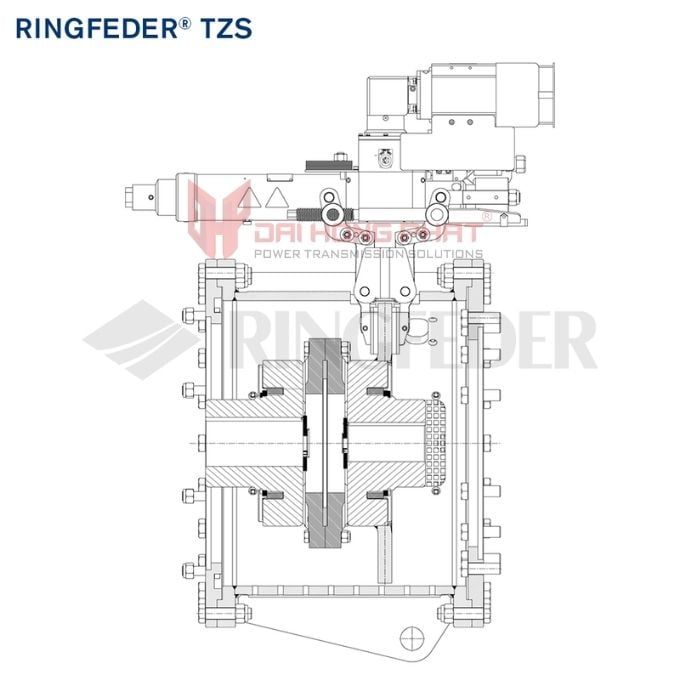

General Overview of the Coupling-Brake Systems TZS
The torsionally flexible, individually configurable Coupling-Brake Systems RINGFEDER® TZS – developed and continuously advanced from the industrial brake business of the former TÜSCHEN & ZIMMERMANN GMBH & CO. KG – combine the highest safety standards with innovative technology. Torsionally flexible, modular Coupling-Brake Systems equipped with robust RINGFEDER® Elastomer Couplings, ensuring highly reliable operation in mining and conveying applications such as chain and belt conveyors.
- Applications: Ideal for conveyor drives in underground and surface mining, heavy industry, plant engineering, and power transmission systems
- Two Brake System Options: Safe and controlled braking using either the fail-safe electromechanical brake TZF EL-SA or the manual clamping device TZC
- Structures: Highly flexible and customizable modular design including coupling, brake disc, brake unit, cover, and optional add-ons

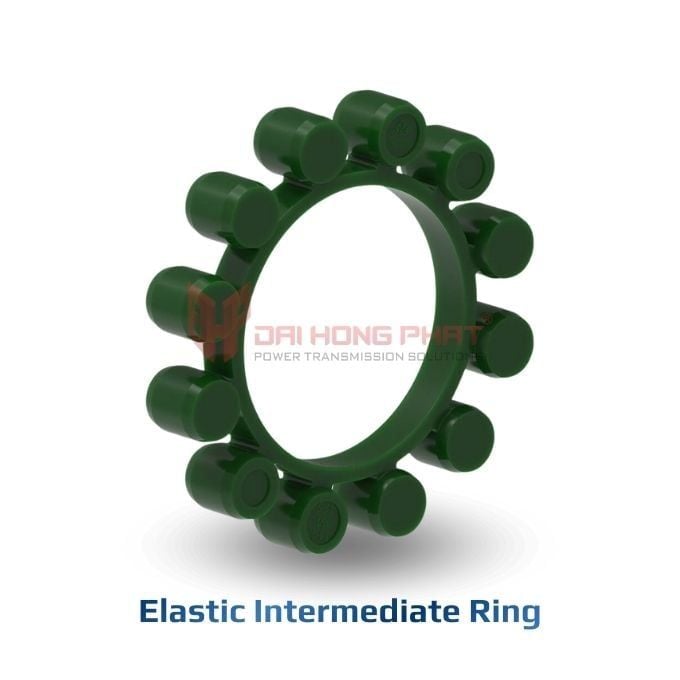

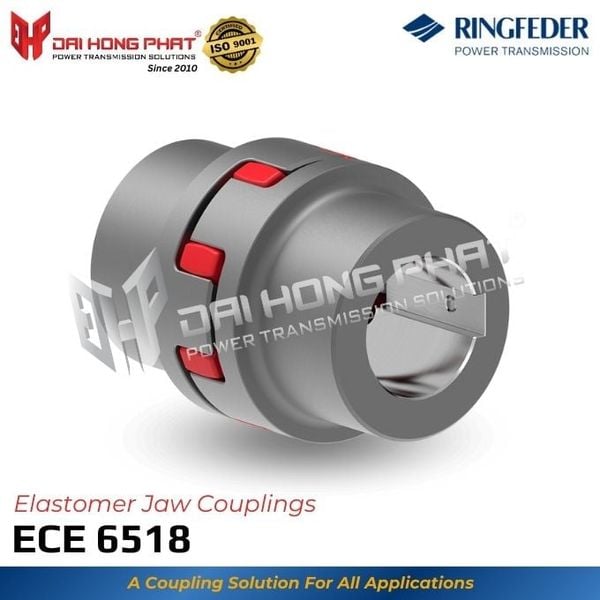

- Excellent shock and vibration damping with compensation for axial, radial, and angular misalignment via the integrated elastomer jaw coupling
- Optional configuration with hydrodynamic coupling
- ATEX compliant according to 2014/34/EU and DIN EN ISO 80079-36:2016 for use in explosion-hazard areas
Classification of Coupling-Brake Systems
Users can choose between two different brake systems:
- Electromechanical Function Brake TZF EL-SA
- Manual Clamping Device TZC

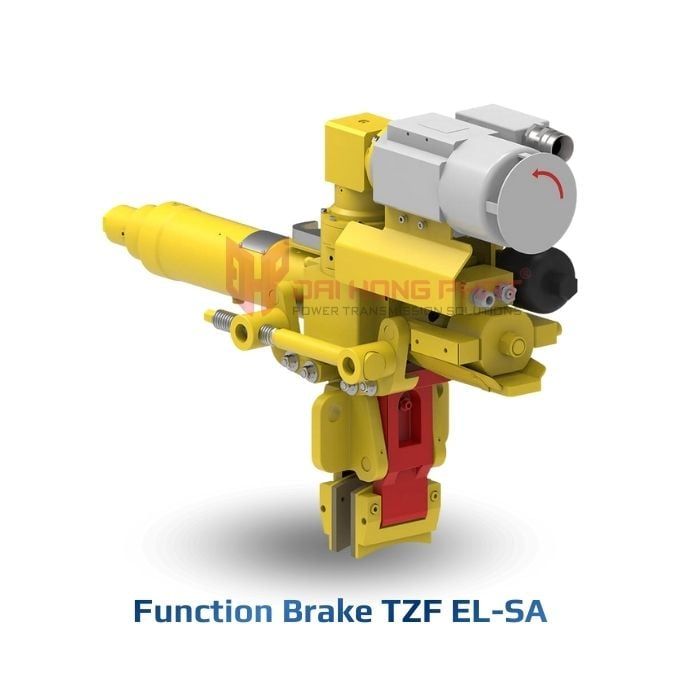

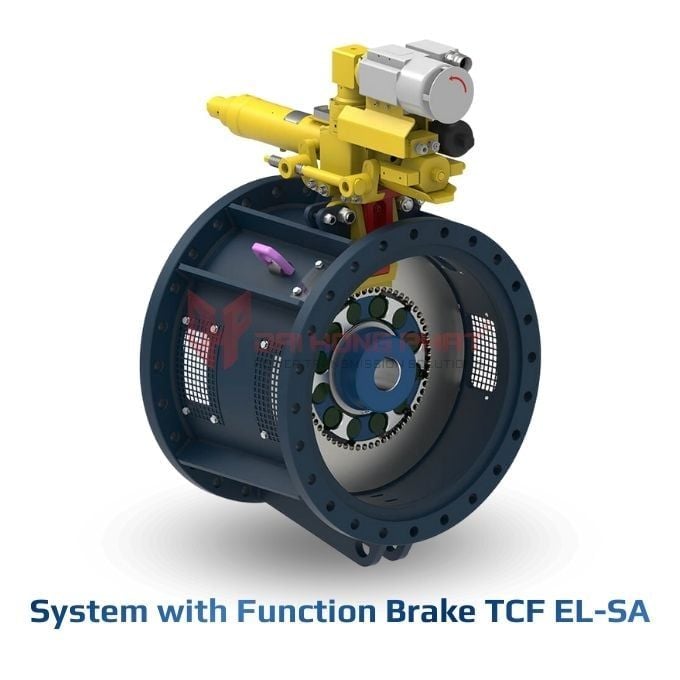

The electromechanical function brake TZF EL-SA with fail-safe functionality is electrically actuated and enables controlled braking and holding based on the proven spring-applied principle.

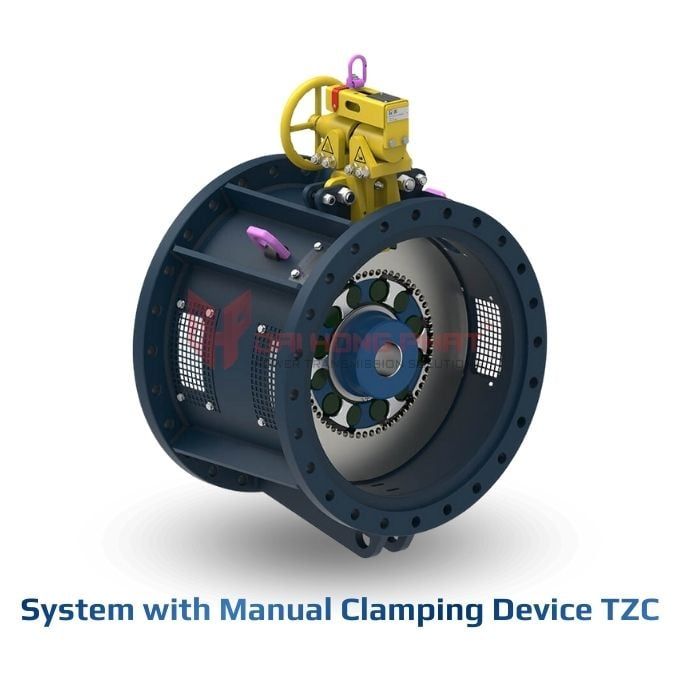

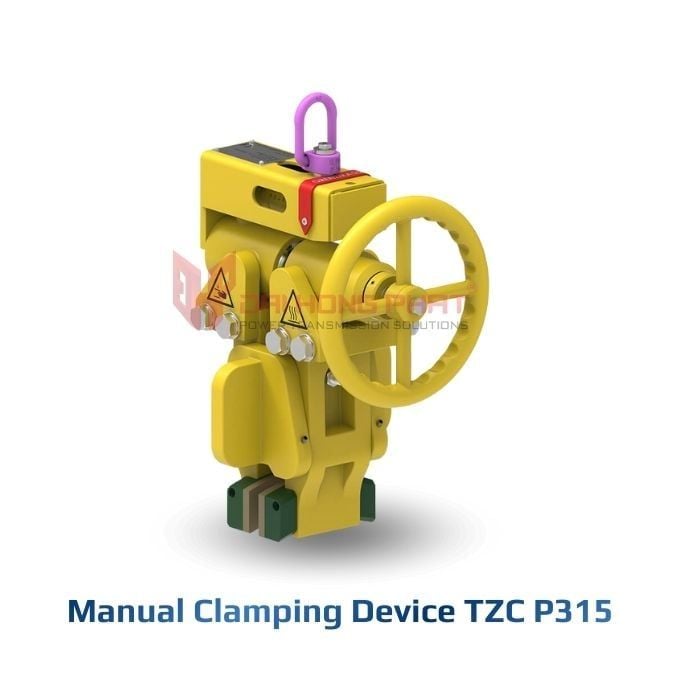

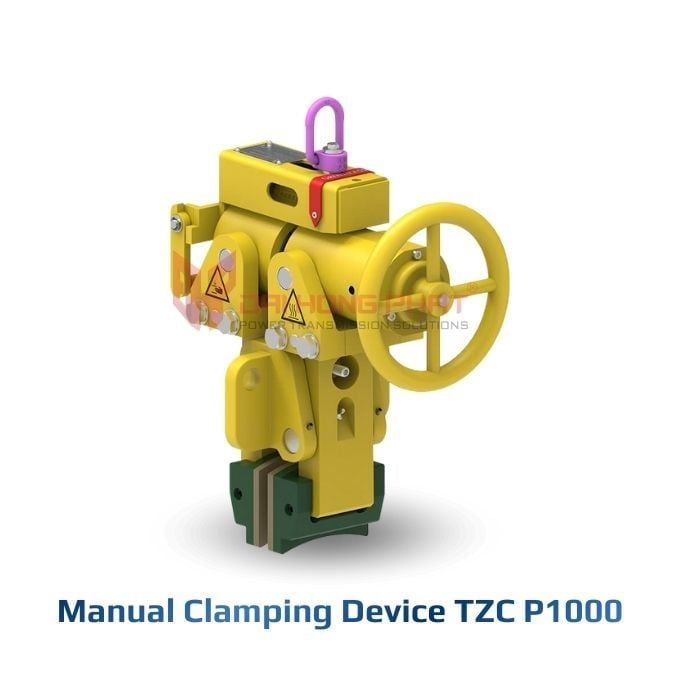

The manual clamping device TZC is a hand-operated chain tensioning and locking mechanism for chain scraper conveyors and other drive and conveying systems.
Learn more about: The electromechanical function brake TZF EL-SA
Learn more about: The manual clamping device TZC

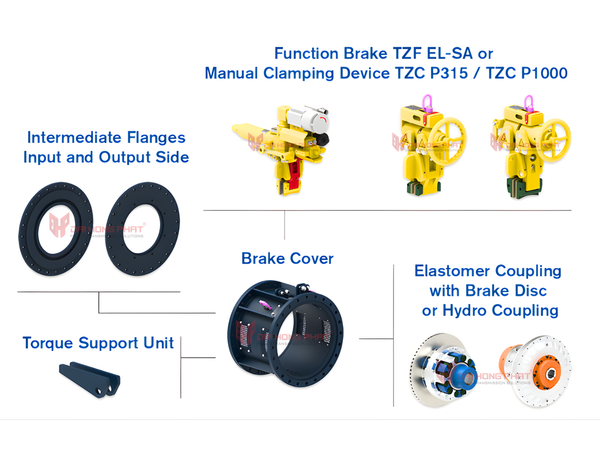

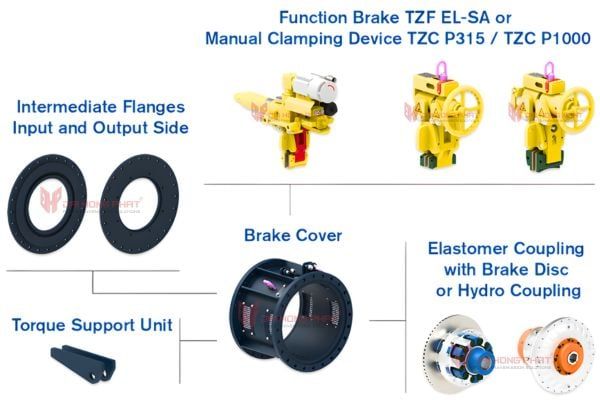

Modular System Design of Ringfeder TZS

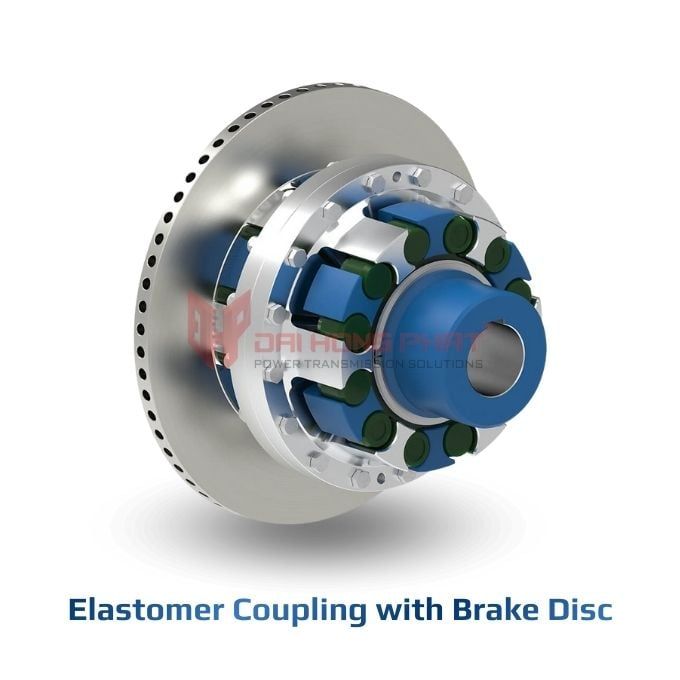

1) Coupling Module - Elastomer Coupling with brake disc - Optional Hydrodynamic Coupling - Torsionally flexible for smooth start-up & shock absorption
2) Brake Disc - Internally ventilated design - High heat-dissipation capability - Optional toothed versions available
3) Brake System Options - TZF EL-SA Electromechanical Functional Brake Spring-applied fail-safe principle Electrical actuation (400 V / 1000 V) Extremely reliable for critical emergency stop functions - TZC Manual Clamping Device Manually operated No external power supply required Ideal for chain scraper conveyors and heavy drive units | 4) Brake Cover - Protective design - Space for sensors, ventilation, and additional modules
5) Intermediate Flanges (Input & Output) - High precision machining - Robust mounting interface for motor and gearbox
6) Torque Support Unit - Prevents reaction torque - Reduces load on surrounding structural components
7) Optional Sensors - Position sensors - Brake monitoring sensors - Temperature and speed feedback |

Main Areas of Use
RINGFEDER® TZS systems are engineered for critical drive positions where both power transmission and braking safety are equally important.
- Underground and surface mining conveyors
- Chain scrapers, belt conveyors, and inclined conveyors
- Crushers, mills, and heavy processing machinery
- Lift and hoist systems
- Material handling equipment
- Power transmission systems in heavy industry
- General mechanical & plant engineering
Why Choose RINGFEDER® Coupling-Brake Systems TZS?
RINGFEDER® is globally recognized for delivering premium power-transmission solutions designed for maximum reliability, safety, and performance in heavy-duty industrial environments. The TZS Coupling-Brake Systems stand out thanks to their modular design, superior damping characteristics, fail-safe braking technology, and proven durability in the harshest mining and conveying applications.
