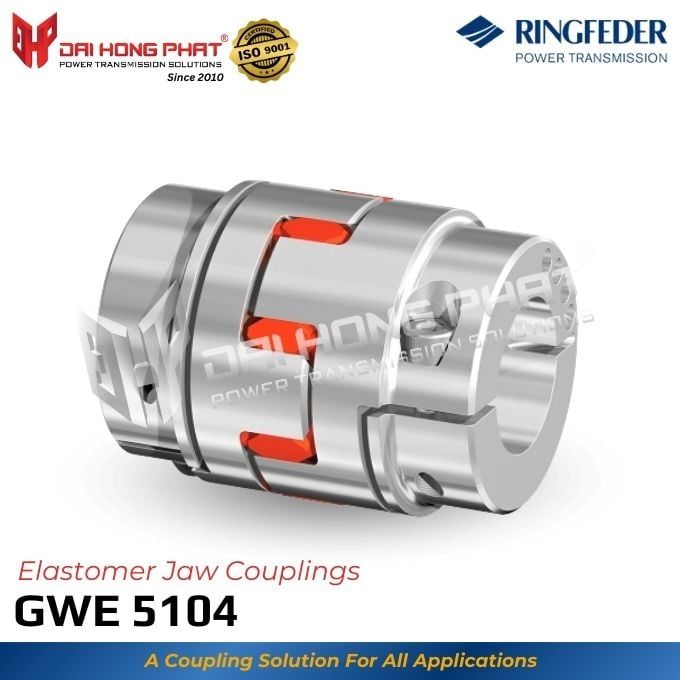

Elastomer Jaw Couplings GWE 5104

Ringfeder Elastomer Jaw Couplings GWE 5104 series feature clamp hubs and adhere to high international standards. For sizes up to 19, they include two axially slit (single-slit) clamp hubs, and for sizes 24 and above, two axially and radially slit (double-slit) clamp hubs. These hubs ensure high concentricity and incorporate an elastomer spider available in different Shore hardness levels. The shaft tolerance should fall within the fit range of 'g6' to 'h7'.

The couplings stand out for their special damping properties, making them highly reliable and effective in various applications. And it has Vietnamese name "khớp nối servo GWE 5104"

- GWE 5104 has 10 different sizes, from 14 to 75.

- Bore Diameter (d): 5-95 mm, this wide range accommodates various shaft sizes, ensuring versatility in different mechanical systems.

- Outer Diameter (D): 30-160 mm, suitable for diverse hub sizes, offering compatibility with multiple applications.

- Overall Length (L): 35-210 mm, provides a variety of length options, ensuring flexibility to meet specific requirements and contribute to stable and secure connections.

- Rotational Speed (nmax): 2,350-13,000 1/min, capable of handling a broad range of high rotational speeds, making it ideal for applications requiring rapid motion.

- Torque (T): 4.8-1,920 Nm, supports a wide range of torque values from low to very high, making it suitable for various industrial applications demanding precise force transmission.

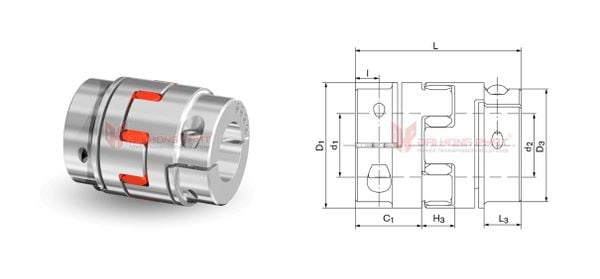

GWE 5104 servo coupling product specifications

GWE 5104 Catalogue	GWE 5104 Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings GWE 5104?

The GWE 5104 features low mass achieved through aluminum hubs and optimized vibration damping via different elastomer spider hardness levels. It includes standard red elastomer spiders (98 Shore A up to size 55 and 95 Shore A from size 65), meets market standard installation spaces, is puncture-proof and electrically insulating, and offers optional keyways in accordance with DIN 6885-1.

Ringfeder GWE 5104 is used for encoders, servo motors, in precision drives, grinding and milling machines, packaging machines, woodworking equipment, conveyor equipment, machine tools, textile machines, drilling rigs, etc.

Dai Hong Phat Corp is a premier specialist in providing all Ringfeder Servo Coupling GWE 5104 products throughout Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to offering authentic, high-quality Ringfeder GWE 5104 servo couplings at the most competitive prices. Additionally, we maintain a significant inventory to ensure that goods are readily available in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
