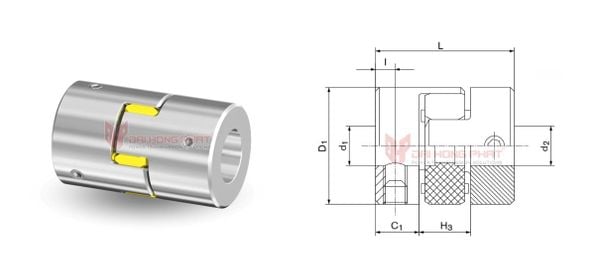

Elastomer Jaw Couplings GWE 5102

The RINGFEDER^® Elastomer Jaw Couplings GWE 5102 - a compact miniature coupling designed for low torque and narrow installation spaces. Instead of clamping hubs, the coupling halves are fixed to the shaft using threaded pins. The shaft tolerance should lie within the fitting range of 'g6' to 'h7'. Two threaded pins offset by 120° create the necessary contact pressure between the coupling hub and the shaft to transmit torque.

Available in different Shore hardness levels, the elastomer spiders ensure the RINGFEDER^® GWE 5102 miniature coupling is electrically insulating and vibration damping, no matter the version chosen. It also known as "khớp nối servo GWE 5102".

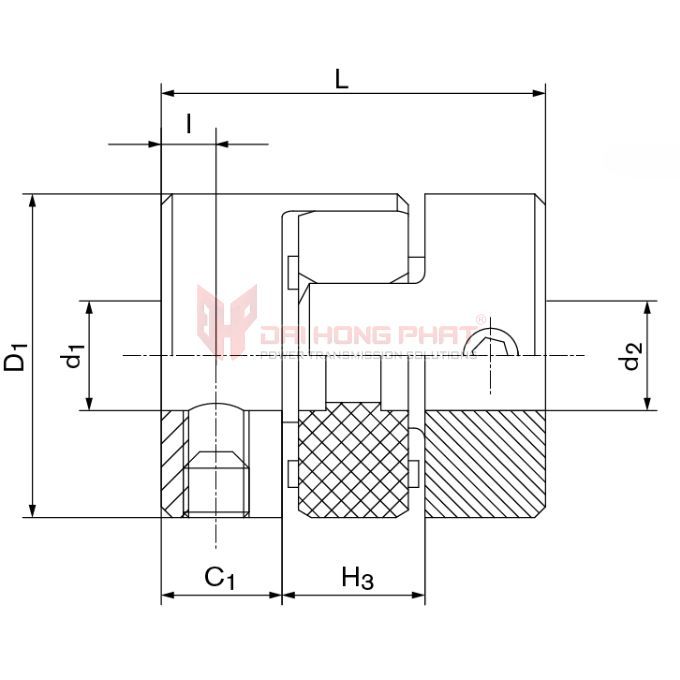

- Bore Diameter (d): 2-48 mm, this range accommodates various shaft sizes, enhancing versatility in multiple mechanical systems.

- Outer Diameter (D): 10-80 mm, suitable for compact hub sizes, ensuring compatibility with diverse applications.

- Overall Length (L): 15-114 mm, offers different length options to meet specific requirements, contributing to stable and secure connections.

- Rotational Speed (nmax): 5,900-47,500 1/min, capable of handling a broad range of very high rotational speeds, making it ideal for applications requiring rapid and precise motion.

- Torque (T): 0.5-190 Nm, supports a range of low to moderately high torque values, making it suitable for various industrial applications demanding precise force transmission.

GWE 5102 Servo Coupling Product Specifications

Why Choose Ringfeder Elastomer Jaw Coup­lings GWE 5102?

The function of the coupling to transmit torque and damp impact that occurs, as well as balancing out unavoidable mis- alignments, is enabled through the joining of two hubs and the filling of the created free space with an elastic sprocket. The GWE jaw couplings are backlash-free in order to also achieve a high level of positioning precision in reverse operation.

Applications of the GWE 5102 include encoders, precision drives, feed drives, grinding and milling spindles, and machine tools. It is also used in packing machines, robotics, transfer lines, multi-spindle heads, wood processing equipment, and textile machinery.

Dai Hong Phat Corp is a premier specialist in providing all Ringfeder Servo Coupling GWE 5102 products throughout Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to offering authentic, high-quality Ringfeder GWE 5102 servo couplings at the most competitive prices. Additionally, we maintain a significant inventory to ensure that goods are readily available in large quantities.

---------------------------------------------------------------------------------------
