Elastomer Jaw Couplings GWE 5103.1

The Ringfeder GWE 5103.1 series stands out for its compact design and backlash-free performance. It includes two single-slit long coupling hubs with high concentricity and an elastomer spider available in different Shore hardness levels. The shaft tolerance should be within the fit range of 'g6' to 'h7'.

The elastomer spider ensures a backlash-free, puncture-proof, damped, and electrically insulated elastic jaw coupling. It also known as "khớp nối servo GWE 5103.1".

- GWE 5103.1 has 3 sizes from 5 to 9

- Bore Diameter (d): 2-11 mm, this small range accommodates miniature shaft sizes, enhancing versatility in precision mechanical systems.

- Outer Diameter (D): 10-20 mm, suitable for very compact hub sizes, offering compatibility with small-scale applications.

- Overall Length (L): 15-30 mm, provides various length options to meet specific requirements, contributing to stable and secure connections in compact systems.

- Rotational Speed (nmax): 19,000-38,000 1/min, capable of handling very high rotational speeds, making it ideal for applications requiring rapid and precise motion.

- Torque (T): 0.5-3 Nm, supports a range of low torque values, making it suitable for fine industrial applications demanding precise force transmission.

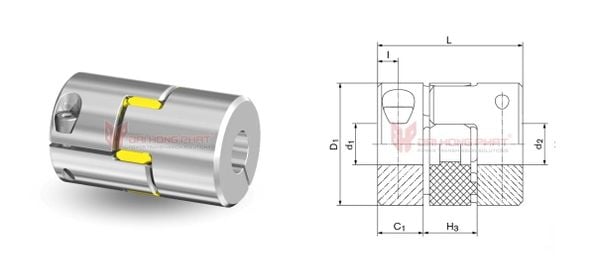

GWE 5103.1 Servo Coupling Product Specifications

GWE 5103.1 Catalogue	GWE 5103.1 Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings GWE 5103.1?

Each hub on the Ringfeder GWE 5103.1 elastomer jaw coupling features concave jaws, enabling torque transmission, impact damping, and misalignment balancing through the elastic sprocket. The GWE couplings are backlash-free, ensuring high positioning precision due to the pre-tensioning of elastomer buffers. Different Shore hardness levels allow optimization of the drive line for rotary oscillation, with detailed technical data available for the sprockets.

Applications of the GWE 5103.1 include encoders, precision drives, feed drives, grinding and milling spindles, and machine tools. It is also used in packing machines, robotics, transfer lines, multi-spindle heads, wood processing equipment, and textile machinery. Additionally, it finds applications in conveying equipment, linear motion systems, measuring equipment and control technology, as well as test rigs.

Dai Hong Phat Corp is a premier specialist in providing all Ringfeder Servo Coupling GWE 5103.1 products throughout Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to offering authentic, high-quality Ringfeder GWE 5103.1 servo couplings at the most competitive prices. Additionally, we maintain a significant inventory to ensure that goods are readily available in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
