Elastomer Jaw Couplings ECE 6518

0₫

ECE 6518 - 38

ECE 6518 - 42

ECE 6518 - 48

ECE 6518 - 55

ECE 6518 - 65

ECE 6518 - 75

ECE 6518 - 90

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

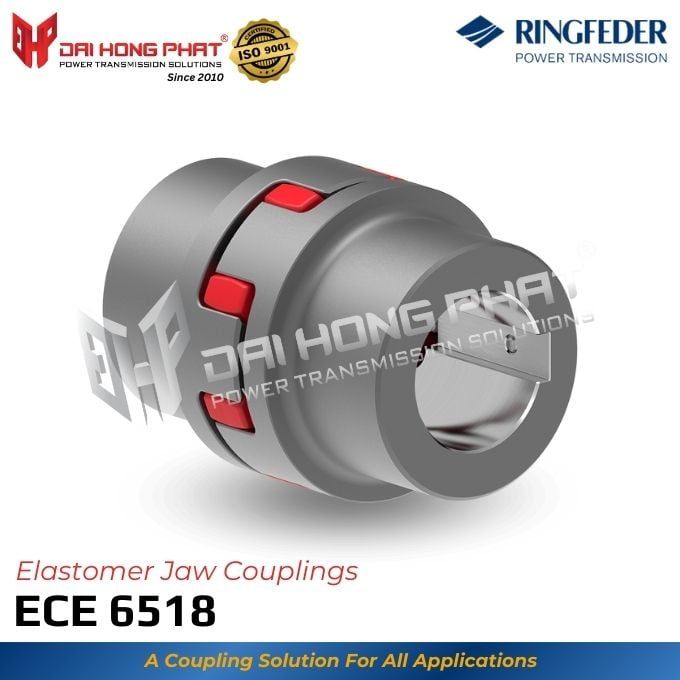

Key Characteristics of the Elastomer Jaw Couplings ECE 6518

Ringfeder ECE 6518 Elastomer Jaw Couplings are engineered for strong torque transmission, vibration damping and reliable performance in a wide range of industrial applications. Below are the core characteristics of this coupling series:

Cast iron housings, providing strong mechanical strength, long lifespan and stable operation under continuous load.
The elastomer spider (polyurethane) is designed for high flexibility, shock absorption and noise reduction — ensuring smooth power transmission.
Available in sizes 38–55 with hardness 92 Sh-A (Yellow spider)
and sizes 65–90 with hardness 98 Sh-A (Red spider) — suitable for different vibration levels and load conditions.
Manufactured according to precision fit standards, helping maintain stable alignment, reducing backlash and increasing overall coupling efficiency.

These characteristics make Ringfeder ECE 6518 a durable and dependable coupling solution for demanding industrial operations requiring high reliability.

Learn more about: Application of Elastomer Jaw Couplings

Product Specifications of Elastomer Jaw Couplings ECE 6518

ECE 6518 Catalogue	ECE 6518 Installation Instruction

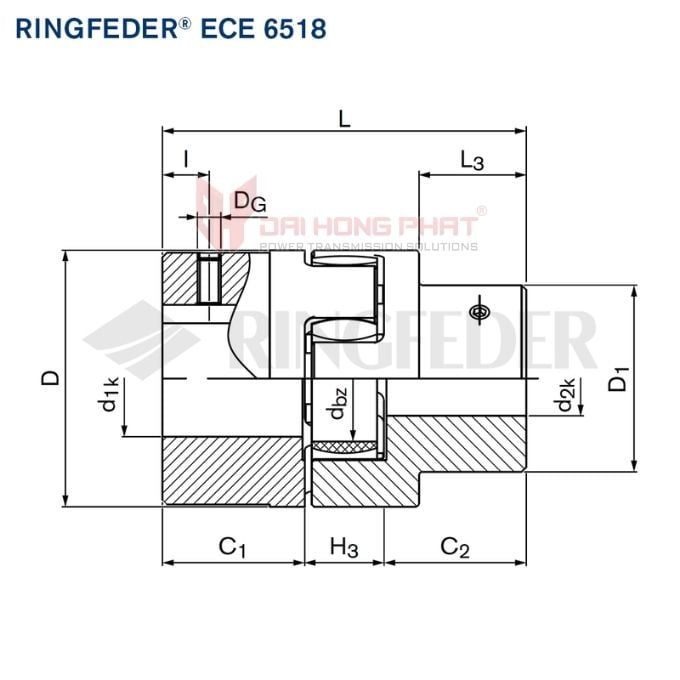

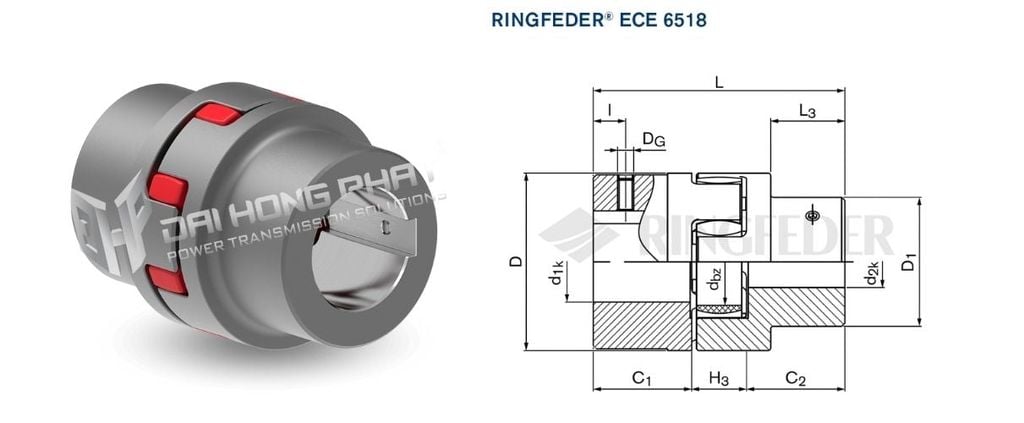

Couplings Size	Hub Design	T_KN [Nm]	Dimenssions [mm]				Gw [kg]
Couplings Size	Hub Design	T_KN [Nm]	dkmin-dkmax	D	D1	L	Gw [kg]

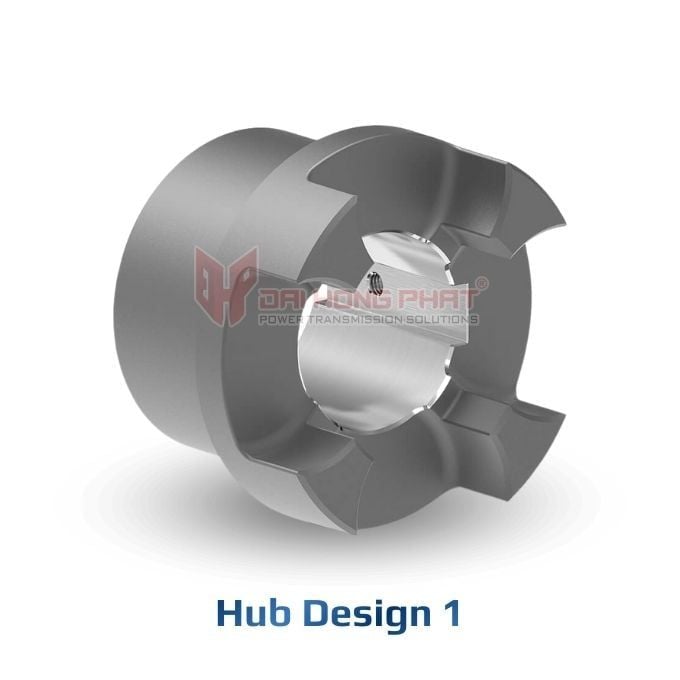

ECE 6518 - 38	1	190	12 - 40	80	66	114	2

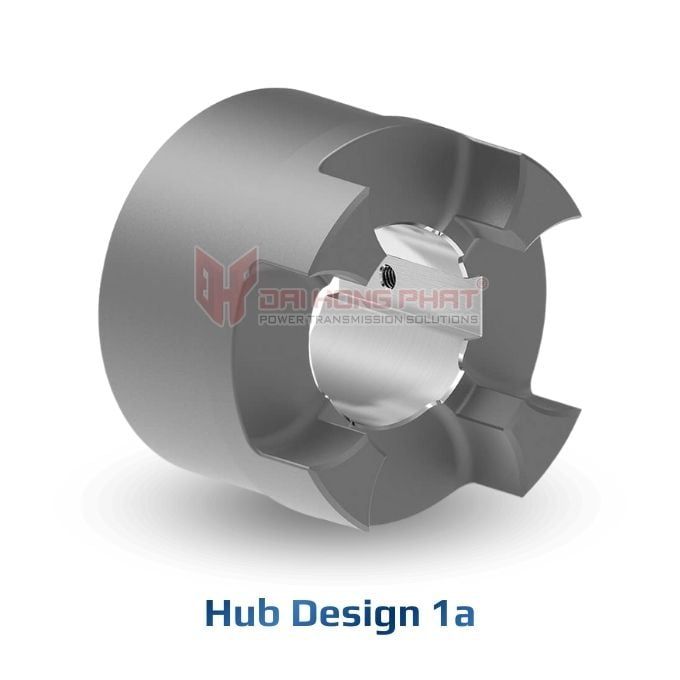

	1a	190	12 - 48	80	78	114	2.4

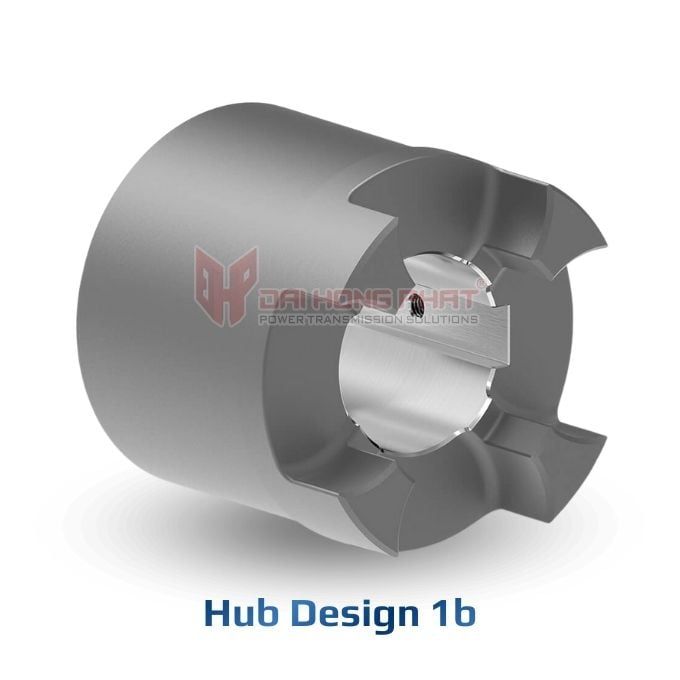

	1b	190	12 - 48	80	78	164	3.6
ECE 6518 - 42	1	265	14 - 55	95	75	126	3.2
	1a	265	14 - 55	95	94	126	3.8
	1b	265	14 - 55	95	94	176	5.5
ECE 6518 - 48	1	310	15 - 52	105	85	140	4.96
	1a	310	15 - 62	105	104	140	5.45
	1b	310	15 - 62	105	104	188	7.51
ECE 6518 - 55	1	410	20 - 60	120	98	160	6.6
	1a	410	20 - 74	120	118	160	7.5
	1b	410	20 - 74	120	118	210	10.2
ECE 6518 - 65	1	940	22 - 70	135	115	185	10.1
	1a	940	22 - 80	135	133	185	11.5
	1b	940	22 - 80	135	133	235	15
ECE 6518 - 75	1	1920	30 - 80	160	135	210	16
	1a	1920	30 - 95	160	158	210	18.2
	1b	1920	30 - 95	160	158	260	21.2
ECE 6518 - 90	1	3550	40 - 97	200	160	245	27.5
	1a	3550	40 - 110	200	198	245	36.3
	1b	3550	40 - 110	200	198	295	44.8

Why Choose Ringfeder Elastomer Jaw Couplings ECE 6518?

The Ringfeder ECE 6518 is designed to deliver excellent performance in environments requiring strong torque transmission, vibration damping and stable mechanical alignment. With a working temperature range from –20°C to +120°C, the coupling ensures reliable operation even under variable thermal conditions.

Its elastomer spider absorbs shock loads, reduces vibration, protects bearings and gearbox, making it suitable for applications with frequent starts, stops or dynamic loading.

Typical industrial uses:

Water pumps, hydraulic pumps, vacuum pumps
Air compressors, blowers
Motor–gearbox connections
General power transmission systems with light to moderate misalignment

Thanks to its modular design, users can easily replace spiders or hubs without dismantling the entire system — reducing downtime and maintenance cost.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder ECE 6518 throughout Vietnam

Our products are brand new, complete with certificates and clear origins.
With 15 years of industry experience, Dai Hong Phat Corp is committed to providing high-quality Ringfeder ECE 6518 coupling at competitive prices. We maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------
