Elastomer Jaw Couplings GWE 5112

Ringfeder Elastomer Jaw Couplings GWE 5112 - a backlash-free balance coupling with an outer cone, designed for the highest speeds. The symmetrical structure and precise manufacturing ensure optimal concentricity of the coupling parts.

The high clamping force on the shaft is achieved by tightening the easily accessible screw connection on the conical outer tensioning ring. This counters the impact of centrifugal force, positively affecting torque transmission. The shaft tolerance should fall within the fit tolerance range of 'g6' to 'h7'. It also known as "khớp nối servo GWE 5112".

- GWE 5113 offers versatility with its 7 different sizes.

- Bore Diameter (d): 6-55 mm, accommodates a wide range of shaft sizes, enhancing versatility in various mechanical systems.

- Outer Diameter (D): 32-105 mm, suitable for diverse hub sizes, ensuring compatibility with multiple applications.

- Overall Length (L): 50-140 mm, offers different length options to meet specific requirements, contributing to stable and secure connections.

- Rotational Speed (nmax): 7,200-25,400 1/min, capable of handling very high rotational speeds, making it ideal for applications that require rapid motion.

- Torque (T): 3.6-525 Nm, capable of handling torque values from low to moderately high, making it suitable for various industrial applications requiring precise force transmission.

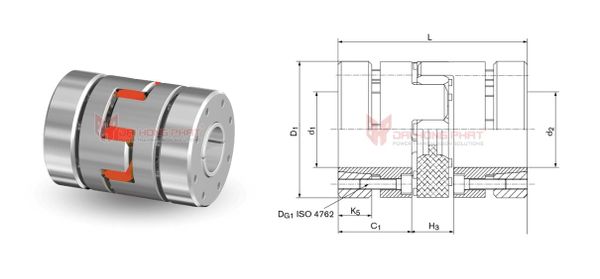

GWE 5112 servo coupling product specifications

GWE 5112 Catalogue	GWE 5112 Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings GWE 5112?

Every hub on the Ringfeder GWE elastomer jaw coupling has concave jaws on its face, enabling torque transmission and impact damping, while balancing misalignments through the elastic sprocket.

The GWE jaw couplings are backlash-free due to pressure pre-tensioning of the elastomer buffers, providing high positioning precision in reverse operation. Different Shore hardness levels allow optimization of the drive line for rotary oscillation, with detailed information available in the technical data for the sprockets.

Dai Hong Phat Corp is a premier specialist in delivering all Ringfeder Servo Coupling GWE 5112 products throughout Vietnam.

We guarantee that the couplings we offer are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing authentic, high-quality Ringfeder GWE 5112 servo couplings at the most competitive prices. Additionally, we maintain a significant inventory to ensure that goods are readily available in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
