Manual Clamping Device TZC

RINGFEDER^® Manual Clamping Device TZC is a hand-operated chain tensioning and locking mechanism for chain scraper conveyors and other drive and conveying systems.

Dai Hong Phat Corp is the authorized distributor of genuine RINGFEDER^® products in Vietnam, Laos, Cambodia, the Philippines, Bangladesh, and Pakistan.

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of Manual Clamping Device TZC

The proven, highly robust Manual Clamping Devices TZC are hand-operated chain tensioning and locking mechanisms for drive and conveying systems, particularly chain scraper conveyors. They are available in two performance classes and can be mounted directly on the brake cover in any desired installation position. These devices enable safe braking and holding without the need for external power supply.

Manually operated braking and locking device for secure deceleration and holding without external energy input
Two performance levels: TZC P315 for motors up to 315 kW, TZC P1000 for motors up to 1000 kW.
Compact design, easy to operate, fast transport, and flexible installation in various locations.
Durable, low-maintenance brake pads made from asbestos-free organic material – ready to use, disc-friendly, and cost-effective.
Flexible adjustment to fit various brake disc types and sizes; can be mounted directly on the brake housing at the desired location.
Complies with explosion-proof standard “Structural safety” (c) according to EN ISO 80079-37, suitable for areas with explosion hazards.
Optional integrated sensor for precise position detection.

Classification of Manual Clamping Device TZC

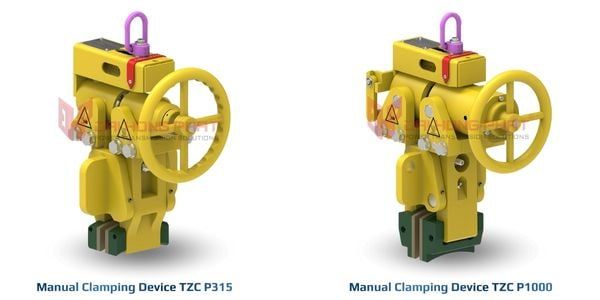

Manual Clamping Device TZC are available in two performance classes:

- TZC P315: This performance level is suitable for motors with power up to 315 kW, trusted in medium-load applications.

- TZC P1000: Suitable for motors with power up to 1000 kW, ideal for heavy-duty and high-load industrial systems.

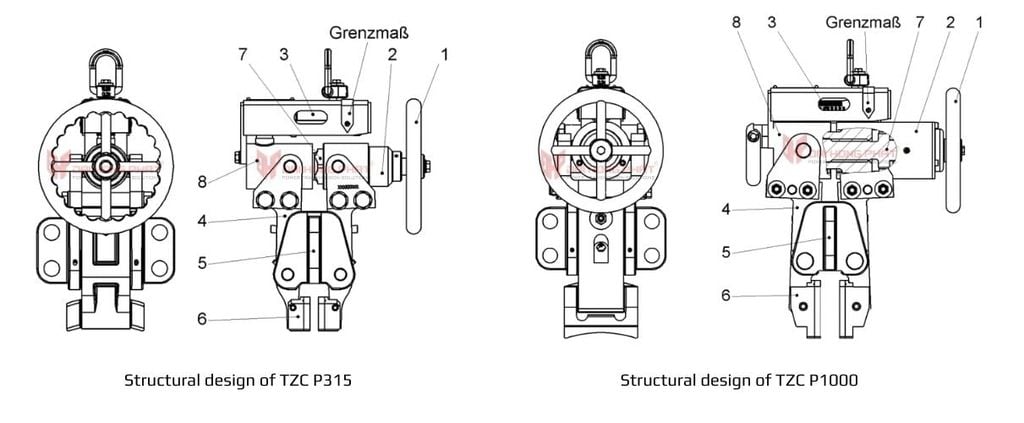

Structural design & Instruction Manual of Manual Clamping Device TZC

Coupling-Brake Systems TZS Functional Brake TCF EL-SA withPosition Switch	Coupling-Brake System TZS Manual Clamping Device TZC P315	Coupling-Brake Systems TZS Manual Clamping Device TZC P315 with Position Switch	Coupling-Brake Systems TZS Manual Clamping Device TZC P1000	Coupling-Brake Systems TZS Hand Tensioning Device TZC P1000 with Position Switch

1. Handwheel
2. Guide bushing
3. Pressure gauge
4. Brake caliper
5. Retaining plate
6. Brake shoe set
7. Pressure spindle
8. Pressure bushing

Why Choose RINGFEDER^® Manual Clamping Device TZC?

The Manual Clamping Device TZC is a hand-operated chain tensioning and locking mechanism for chain scraper conveyors and other drive and conveying systems. It allows safe braking and holding without external power supply and can be mounted directly on the brake cover in any installation position.

Dai Hong Phat Corp specializes in the supply of genuine RINGFEDER^® products throughout Vietnam

We are an authorized distributor of RINGFEDER^® Germany, providing genuine TZC Manual Clamping Devices.

In addition, we also supply complete Coupling-brake systems TZS.

Learn more about: Coupling-Brake Systems TZS
