Electromechanical Function Brake TZF EL-SA

Key Characteristics of Electromechanical Function Brake TZF EL-SA

The electromechanical Function Brake TZF EL-SA operates on the proven spring-applied principle. It impresses with maximum reliability and its highly compact design, specifically developed for demanding applications in modern conveying and drive systems. It ensures controlled braking and secure holding – thanks to its fail-safe function even in critical emergency situations, such as power failures.

- Electromechanical safety brake based on the spring-applied principle with fail-safe functionality for maximum safety

- Highly compact construction for quick and easy integration into conveying and drive systems, including retrofitting

- Brake release via 400 V or 1000 V electric motor with infinitely adjustable closing time, max. switching voltage: DC 30 V / max. switching current: 2.5 A

- Allows rotational speeds up to 70 m/s, suitable for brake disc diameters of 480 mm and above;

- High-quality materials and manufacturing conditions, wear-resistant and low-maintenance operation, along with energy-efficient operation, help reduce operating costs;

- In addition, the "Structural Safety" ('c') explosion-proof protection type according to EN ISO 80079-37 ensures maximum safety in areas with a risk of explosion;

- Accurate position detection via integrated sensors.

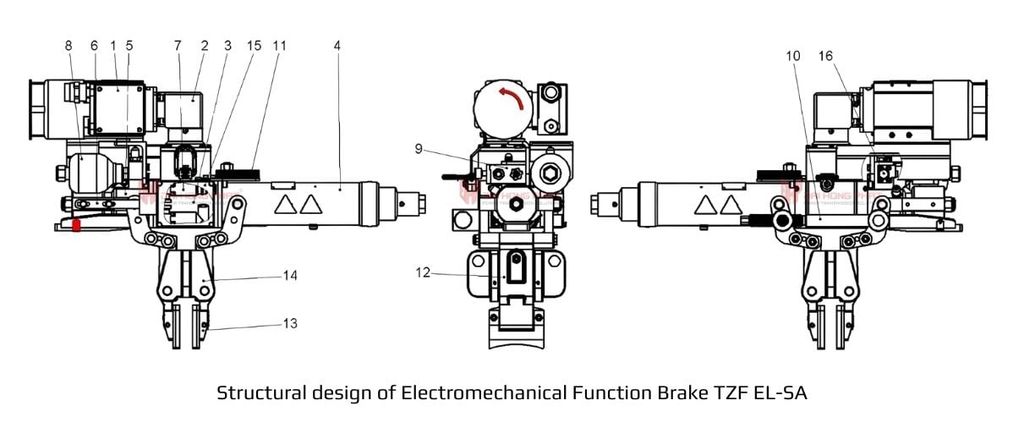

Structural design of Electromechanical Function Brake TZF EL-SA with Position Switch
