Product information

Main characteristics of the Locking Assemblies 7012

The original Ringfeder Locking Assemblies RfN 7012 are also known as "khớp khóa trục RfN 7012", feature double-tapered thrust rings with self-releasing tapers. They are designed to bridge relatively large fit clearances and are easy to install, adjust, or remove. However, they are not self-centering and typically require a pre-centering hub section.

- Slimmest Design: Optimized for applications where space is limited, ensuring it can be used in narrow spaces without compromising performance.

- Without Axial Displacement: Maintains the relative positions of the locking assembly, shaft, and hub during installation, providing stability and safety.

- Inner Diameter (d): 19-1,000 mm, accommodates a wide range of shaft sizes, offering flexibility for various industrial applications.

- Outer Diameter (D): 47-1,100 mm, suitable for a broad range of hub sizes, ensuring compatibility with diverse mechanical systems.

- Overall Length (L): 28-130 mm, compact yet robust design, allowing for efficient installations and reliable performance.

- Torque (T): 306-2.4 million Nm, capable of handling extremely high torque values, making it suitable for heavy-duty industrial applications.

Locking Assemblies RfN 7012 product specifications:

RfN 7012 Catalogue	RfN 7012 Installation Instruction

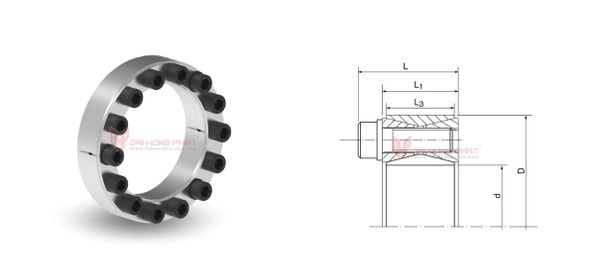

Dimensions [mm]				Transmissible torques [Nm]		Locking screws		Gw
d x D	L	L1	L3	T	Tmax	nSc	DG	[kg]
19 x 47	27,5	20	17	306	356	8	M6x18	0.24
20 x 47	27,5	20	17	321	374	8	M6x18	0.24
22 x 47	27,5	20	17	351	412	8	M6x18	0.23
24 x 50	27,5	20	17	429	506	9	M6x18	0.26
25 x 50	27,5	20	17	446	526	9	M6x18	0.25
28 x 55	27,5	20	17	496	590	9	M6x18	0.3
30 x 55	27,5	20	17	529	632	9	M6x18	0.29
32 x 60	27,5	20	17	749	889	12	M6x18	0.34
35 x 60	27,5	20	17	815	983	12	M6x18	0.32
38 x 65	27,5	20	17	1101	1334	15	M6x18	0.36
40 x 65	27,5	20	17	1154	1404	15	M6x18	0.34
42 x 75	33,5	24	20	1768	2158	12	M8x22	0.6
45 x 75	33,5	24	20	1886	2312	12	M8x22	0.57
48 x 80	33,5	24	20	2004	2466	12	M8x22	0.62
50 x 80	33,5	24	20	2082	2568	12	M8x22	0.6
55 x 85	33,5	24	20	2656	3296	14	M8x22	0.63
60 x 90	33,5	24	20	2881	3596	14	M8x22	0.69
65 x 95	33,5	24	20	3550	4452	16	M8x22	0.73
70 x 110	39,5	28	24	5432	6844	14	M10x25	1.26
75 x 115	39,5	28	24	5795	7333	14	M10x25	1.33
80 x 120	39,5	28	24	6156	7882	14	M10x25	1.4
85 x 125	39,5	28	24	7447	9498	16	M10x25	1.49
90 x 130	39,5	28	24	7857	10057	16	M10x25	1.53
95 x 135	39,5	28	24	7857	11942	18	M10x25	1.62
100 x 145	47	33	26	11126	14335	14	M12x30	2.01
110 x 155	47	33	26	12166	15768	14	M12x30	2.15
120 x 165	47	33	26	15085	19659	16	M12x30	2.35
130 x 180	52	38	34	20326	26621	20	M12x35	3.51
140 x 190	52	38	34	23967	31536	22	M12x35	3.85
150 x 200	52	38	34	27893	36860	24	M12x35	4.07
160 x 210	52	38	34	32102	42594	26	M12x35	4.3
170 x 225	60	44	38	39326	52377	22	M14x40	5.78
180 x 235	60	44	38	45262	60499	24	M14x40	6.05
190 x 250	68	52	4	55552	74504	28	M14x45	8.25
200 x 260	68	52	46	62452	84027	30	M14x45	8.65
---	---	---	---	---	---	---	---	---

Why Choose Ringfeder’s RfN 7012 Series?

The RfN 7012 Locking Assemblies's slim design is ideal for limited spaces, compensating for small tolerance deviations and mounting errors. It allows for large transmittable forces and moments, enabling multiple units to be placed one behind the other. The device is easy to install, free from wear, and offers a low risk of contamination due to its design without moving parts on the shaft and hub.

Ringfeder RfN 7012 is perfect for precisely tightening various shaft types, such as gears, wheels, chains, levers, brake discs, sliding gears, couplings, flanges, and coupling shafts.

Authorized Distributor for Ringfeder Germany in Vietnam

Dai Hong Phat Corp. is proud to be the official representative of Ringfeder Germany in Vietnam, providing access to the highly reliable Locking Assemblies RfN 7012.

Investing in these assemblies means choosing a solution that perfectly balances precision, durability, and cost-effectiveness, meeting the rigorous demands of industrial machinery and systems while ensuring exceptional performance.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
Website: https://ringfeder.com.vn/ - https://daihongphat.asia/
Hotline: 0906 955 057 | Zalo: +84906 955 057
Email: info@dhp-corp.com.vn
Facebook: https://www.facebook.com/khopnoitrucdaihongphat
