Locking Assemblies RfN 7015.0
The Ringfeder RfN 7015.0 is designed for general engineering applications, offering reliable torque transmission and excellent centering performance in sizes from 100 mm to 800 mm.
In Vietnam & some Southeast Asian countries, Dai Hong Phat is an authorized distributor of Ringfeder Power Transmission.
Main characteristics of the Locking Assemblies RfN 7015.0
The RfN 7015.0 Locking Assembly is engineered for transmitting maximum torques and axial forces while maintaining high concentricity of the clamped parts and handling applications subjected to bending moments.
- High Peripheral Force Transmission: The long, flat cone design enables the RfN 7015.0 to transmit maximum torques and axial forces efficiently. During installation, the Locking Assembly, shaft, and hub stay in their relative positions, providing additional safety compared to three-part versions. Both the shaft and hub are solely compression-loaded.
- Combined Load Handling: Capable of transmitting bending moments and radial loads simultaneously. For assistance with combined loads, please contact our technical department.
- Exceptional Centering Ability: The RfN 7015.0 features a relatively wide design and a precentering web, ensuring excellent centering ability.

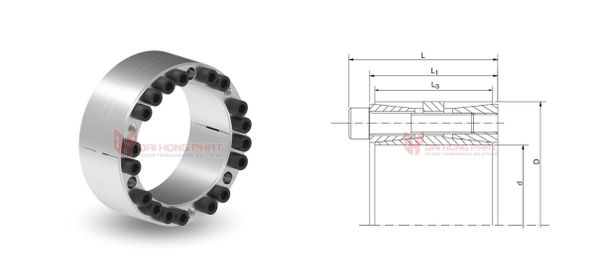

- Inner Diameter d: 100-800 mm
- Outer Diameter D: 145-910 mm
- Overall Length L: 77-227 mm
- Torque T: 14,244-2.5 Mio. Nm
Learn more: The origins of Locking Assemblies
Locking Assemblies RfN 7015.0 product specifications
| RfN 7015.0 Catalogue | RfN 7015.0 Installation Instruction |
 | |
| Dimensions [mm] | Transmissible torques [Nm] | Locking screws | Gw | ||||
| d x D | L | L1 | T | Tmax | nSc | DG | [kg] |
| 100x145 | 77 | 65 | 14244 | 16757 | 10 | M12x55 | 4.1 |
| 110x155 | 77 | 65 | 15668 | 18433 | 10 | M12x55 | 4.4 |
| 120x165 | 77 | 65 | 20511 | 24130 | 12 | M12x55 | 4.8 |
| 130x180 | 86 | 74 | 27775 | 32676 | 15 | M12x60 | 6.5 |
| 140x190 | 86 | 74 | 35894 | 42228 | 18 | M12x60 | 7 |
| 150x200 | 86 | 74 | 38458 | 45244 | 18 | M12x60 | 7.4 |
| 160x210 | 86 | 74 | 47858 | 56304 | 21 | M12x60 | 7.8 |
| 170x225 | 95 | 81 | 59620 | 70141 | 18 | M14x65 | 10 |
| 180x235 | 95 | 81 | 63127 | 74267 | 18 | M14x65 | 10.6 |
| 190x250 | 108 | 94 | 74038 | 87104 | 20 | M14x75 | 14.3 |
| 200x260 | 108 | 94 | 93522 | 110026 | 24 | M14x75 | 15 |
| 220x285 | 120 | 104 | 105616 | 124254 | 18 | M16x90 | 19.8 |
| 240x305 | 120 | 104 | 153624 | 180734 | 24 | M16x90 | 21.4 |
| 260x325 | 120 | 104 | 173360 | 203953 | 25 | M16x90 | 23 |
| 280x355 | 144 | 126 | 216499 | 254705 | 24 | M18x110 | 35.2 |
| 300x375 | 144 | 126 | 241629 | 284269 | 25 | M18x110 | 37.4 |
| 320x405 | 162 | 142 | 333337 | 392161 | 25 | M20x120 | 51.3 |
| 340x425 | 162 | 142 | 354170 | 416671 | 25 | M20x120 | 54.1 |
| 360x455 | 187 | 165 | 463312 | 545073 | 25 | M22x130 | 75.4 |
| 380x475 | 187 | 165 | 489052 | 575355 | 25 | M22x130 | 79 |
| 400x495 | 187 | 165 | 514791 | 605637 | 25 | M22x130 | 82.8 |
| 420x515 | 187 | 165 | 648637 | 763102 | 30 | M22x130 | 86.5 |
| 440x545 | 204 | 180 | 799628 | 940738 | 30 | M24x150 | 110 |
| 460x565 | 204 | 180 | 835974 | 983499 | 30 | M24x150 | 114 |
| 480x585 | 204 | 180 | 930476 | 1094677 | 32 | M24x150 | 119 |
| 500x605 | 204 | 180 | 969246 | 1140289 | 32 | M24x150 | 123 |
| 520x630 | 227 | 200 | 1127063 | 1325956 | 30 | M27x160 | 148 |
| 540x650 | 227 | 200 | 1170411 | 1376955 | 30 | M27x160 | 154 |
| 560x670 | 227 | 200 | 1213760 | 1427951 | 30 | M27x160 | 160 |
| 580x690 | 227 | 200 | 1257109 | 1478951 | 30 | M27x160 | 165 |
| 600x710 | 227 | 200 | 1387154 | 1631946 | 32 | M27x160 | 170 |
| 620x730 | 227 | 200 | 1433393 | 1686345 | 32 | M27x160 | 177 |
| 640x750 | 227 | 200 | 1618347 | 1903937 | 35 | M27x160 | 182 |
| 660x770 | 227 | 200 | 1668920 | 1963435 | 35 | M27x160 | 187 |
| 680x790 | 227 | 200 | 1768622 | 2080732 | 36 | M27x160 | 193 |
| 700x810 | 227 | 200 | 1820640 | 2141930 | 36 | M27x160 | 198 |
| 720x830 | 227 | 200 | 2080732 | 2447919 | 40 | M27x160 | 204 |
| 740x850 | 227 | 200 | 2138530 | 2515917 | 40 | M27x160 | 209 |
| 760x870 | 227 | 200 | 2196328 | 2583915 | 40 | M27x160 | 215 |
| 780x890 | 227 | 200 | 2254126 | 2651913 | 40 | M27x160 | 220 |
| 800x910 | 227 | 200 | 2427520 | 2855906 | 42 | M27x160 | 225 |
Why Choose Ringfeder’s RfN 7015.0 Series?
The Ringfeder RfN 7015.0 Series is designed to transmit maximum torques, axial forces, and high bending moments with exceptional centering ability and minimal axial displacement during installation. Its efficient and reliable design ensures additional safety compared to three-part constructions, making it ideal for demanding industrial applications.
The Locking devices RfN 7015.0 are ideal for the precise tightening of various shaft types, including gears, wheels, chains, levers, brake discs, sliding gears, couplings, flanges, and coupling shafts.
Learn more: Application of The Locking Assembly in a Ball Mill in cement production
Dai Hong Phat Corp specializes in the supply of genuine Ringfeder RfN 7015.0 throughout Vietnam
In Vietnam, Dai Hong Phat Corp proudly represents Ringfeder Germany, providing access to the highly reliable Locking Assemblies RfN 7015.0.
Investing in these assemblies means choosing a solution that perfectly balances precision, durability, and cost-effectiveness, designed to meet the rigorous demands of industrial machinery and systems, guaranteeing exceptional performance.
---------------------------------------------------------------------------------------
Contact Dai Hong Phat Corp today to learn more!!
