Locking Assemblies RfN 7006

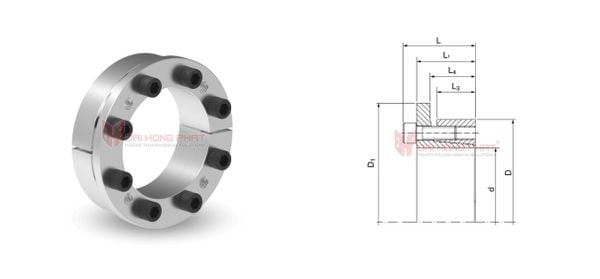

The Ringfeder RfN 7006 features a two-piece single-taper design with flange, ensuring accurate axial positioning during mounting.

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Main characteristics of the Locking Assemblies 7006

The Ringfeder Locking Assemblies RfN 7006 is also known as "khớp khóa trục RfN 7006", features a two-piece design with a single taper, incorporating a flange that positions the component on the shaft. This flange ensures that the component maintains its axial position during mounting, providing a secure and stable connection.

- Self-Centering: Ensures precise alignment of the components, enhancing reliability and performance without the need for manual adjustments.

- Without Axial Displacement: Maintains the relative positions of the locking assembly, shaft, and hub during installation, providing additional stability and safety.

- Inner Diameter (d): 19-400 mm, accommodates a wide range of shaft sizes, offering flexibility for various industrial applications.

- Outer Diameter (D): 47-495 mm, suitable for a broad range of hub sizes, ensuring compatibility with different mechanical systems.

- Overall Length (L): 34-138 mm, compact yet robust design, allowing for efficient installations and reliable performance.

- Torque (T): 270-375,945 Nm, capable of handling a broad range of torque values, from moderate to extremely high, making it suitable for various industrial uses.
