Key Features of Quick Locking Assemblies RfN 7085

Quick Locking Assemblies RfN 7085 is designed for effortless locking and unlocking with just one turn of the knob, ensuring ease of use. To efficiently repair a damaged keyway, simply slide the shaft lock into the keyway position, making the process quick and effective. The Ringfeder RfN 7085 enables precise axial and radial positioning of components in just a few seconds, thanks to its straightforward and simple operations. It also known as "khóa trục RfN 7085".

- RfN 7085 is engineered with a self-centering feature, guaranteeing precise alignment during operation.

- The inner diameter options range from 5 to 45 mm, which accommodates various shaft sizes and makes it versatile for multiple applications.

- The outer diameter spans from 12 to 60 mm, allowing it to fit seamlessly with different equipment setups.

- The overall length of the product varies between 19 and 63 mm, offering flexibility in installation and ensuring it can meet different spatial requirements.

- Additionally, the torque capacity of 10 to 1,340 Nm means it can handle a wide range of high-torque situations effectively.

Learn more: The development of Locking Assemblies

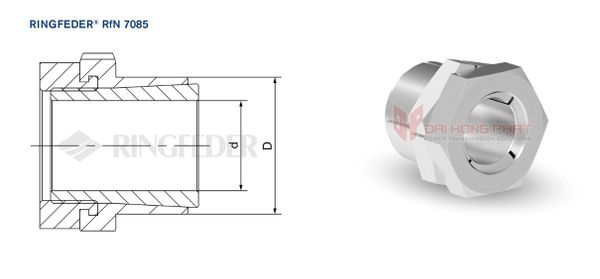

Product Specifications of Quick Locking Assemblies RfN 7085

RfN 7085 Catalogue	RfN 7085 Installation Instruction

Dimensions [mm]		Transmissible torques [Nm]		SW	Surface pressure [N/mm²]		Gw [kg]
dxD	L	T	T_A	[mm]	Shaft pW	Hub pN	Gw [kg]
5x12	19	10	10	14	364	119	0.016
6x12	19	12	10	14	220	119	0.015
7x14	22	20	17	16	205	121	0.023
8x14	22	23	17	16	180	121	0.021
9x18	24	43	35	22	246	144	0.047
10x18	24	48	35	22	221	144	0.044
11x20	24	59	44	22	225	145	0.047
12x20	24	65	44	22	207	145	0.044
14x24	28	93	65	27	179	118	0.076
15x24	28	99	65	27	167	118	0.072
16x24	28	106	65	27	156	118	0.067
17x26	34	163	110	32	187	148	0.122
18x30	36	223	160	36	224	155	0.176
19x30	36	235	160	36	213	155	0.169
20x30	36	248	160	36	202	155	0.162
22x38	41	349	250	46	197	134	0.338
24x38	41	381	250	46	181	134	0.315
25x38	41	397	250	46	174	134	0.304

Why Choose Ringfeder’s RfN 7085 Series?

The Ringfeder RfN 7085 is a top choice in the medical field due to its versatile design and high precision. Here are some reasons why it stands out:

- Compact and Precise: Specifically designed to meet the compact dimensions and high precision required in medical applications.

- Easy Installation and Disassembly: The central nut operating mechanism allows for simple and quick installation and disassembly, making maintenance hassle-free.

- Minimal Deformations: The innovative design minimizes adverse deformations, protecting related components and extending their service life.

Beyond the medical field, the RfN 7085 is also utilized in various high-tech applications, including reducers, conveyor rollers, hybrid motors, drive chains, packaging machines, and linear slide rails. Its versatility and robust performance make it an excellent choice for a wide range of industries.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder RfN 7085 throughout Vietnam.

Opting for the Quick Locking Assemblies RfN 7085 is an investment in precision, durability, and cost-efficiency. Engineered to meet the rigorous demands of industrial equipment and mechanical systems, this product ensures outstanding performance and reliability.

In Vietnam, Dai Hong Phat Corp proudly represents Ringfeder Germany as the authorized distributor of their locking assemblies, providing access to genuine, top-quality products supported by professional expertise and service.

---------------------------------------------------------------------------------------
