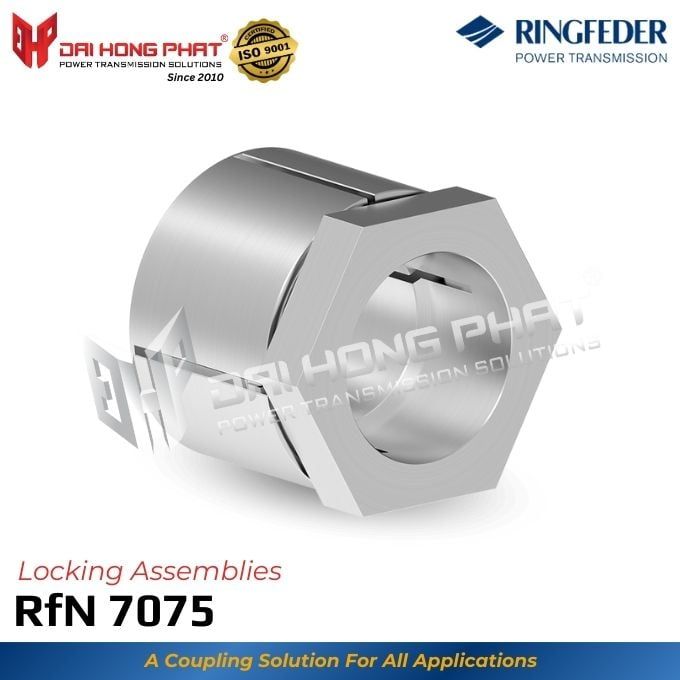

Quick Locking Assemblies RfN 7075

Key Features of Quick Locking Assemblies RfN 7075

Quick Locking Assemblies RfN 7075 offers seamless operation by locking and unlocking with just one turn. It simplifies keyway repairs; you just slide the shaft lock into the keyway position to fix any damage. Additionally, the Ringfeder RfN 7075 enables precise axial and radial positioning of locked components in seconds with just a few easy steps, ensuring optimal performance and reliability. It also known as "khóa trục RfN 7075".

- RfN 7075 features a self-centering design, ensuring precise alignment and stability during operation.

- It accommodates inner diameters ranging from 17 to 35 mm, making it suitable for various shaft sizes.

- The outer diameter varies between 32 and 50 mm, ensuring compatibility with different equipment configurations.

- The overall length spans from 33 to 41 mm, allowing for flexibility in installation across systems with different spatial requirements.

- Additionally, the torque capacity ranges from 174 to 681 Nm, ensuring reliable performance in high-torque applications.

Learn more: The development of Locking Assemblies

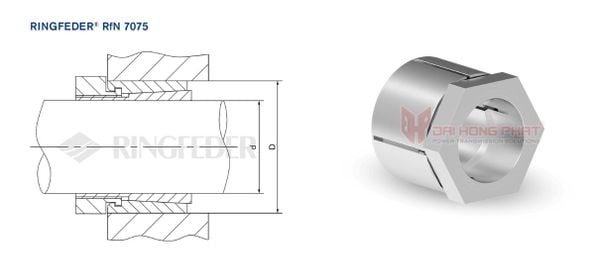

Product Specifications of Quick Locking Assemblies RfN 7075

RfN 7075 Catalogue	RfN 7075 Installation Instruction

Why Choose Ringfeder’s RfN 7075 Series?

Thanks to the optimal ratio of bore to outside diameter, these components are especially well-suited for mounting on thin-walled structures and in tight spaces. Additionally, their low mass moment of inertia and minimal weight contribute to excellent dynamic performance.

The Ringfeder RfN 7075 is widely employed in the medical field due to its precision and reliability. Additionally, the RfN 7075 quick locking assemblies finds applications in various high-tech sectors, including gearboxes, conveyor system rollers, hybrid motors, drive chains, packaging machines, and linear slide rails.
