Locking Elements RfN 8006
Key Features of Locking Assemblies RfN 8006
Locking Elements of the Ringfeder RfN 8006 series are highly adaptable, allowing for customization to fit most applications. They can handle high loads, with up to 4 elements used in series, ensuring maximum reliability under various load conditions.
Manufacturing is simplified as no keyways are required, and large tolerances are allowed. These elements are easily adjustable, backlash-free, and provide high fatigue strength. Installation and removal are straightforward with standard tools. They are wear and maintenance-free, offering an unlimited lifespan when used correctly.
- These components come in 97 different sizes, offering versatility for various applications. They are available in both solid and slit types, catering to diverse needs.
- The inner diameter ranges from 6 to 1,000 mm, while the outer diameter spans from 9 to 1,050 mm.
- The total length of these components varies between 4.5 and 80 mm.
- They are capable of handling torque up to a maximum of 8 to 2 million Nm, ensuring robust performance in demanding conditions.

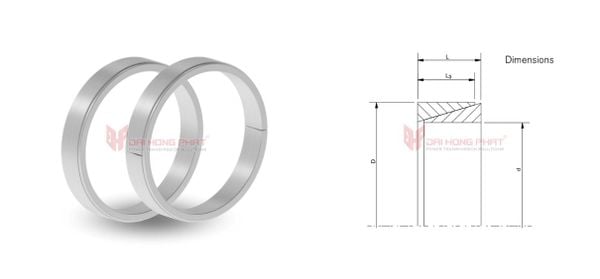

Product Specifications of Locking Elements RfN 8006
| RfN 8006 Catalogue | RfN 8006 Installation Instruction |
 | |

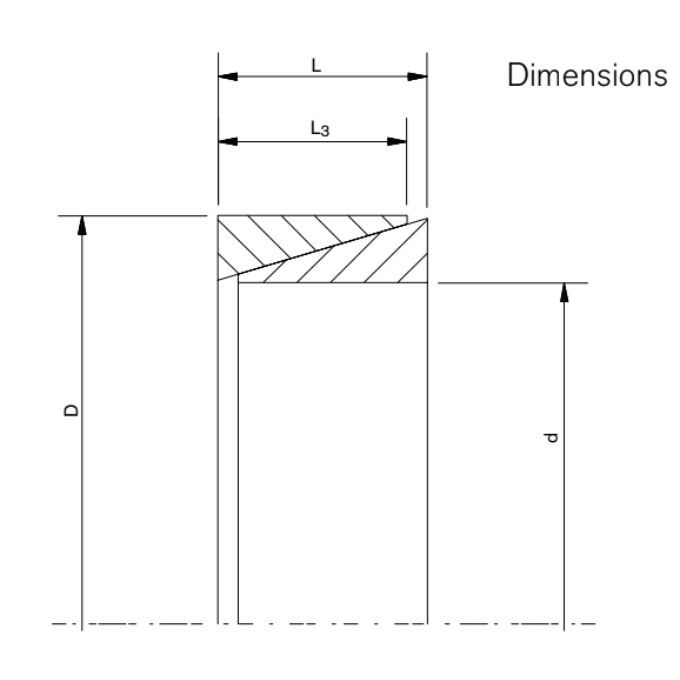

| Dimensions [mm] | Transmissible torques [Nm] | Locking Elements [mm] | Gw | ||||||
| d x D | L | L1 | T | Tmax | 1 | 2 | 3 | 4 | [kg] |
| 6×9 | 4.5 | 3.7 | 2.5 | 7.8 | 2 | 2 | 3 | 3 | 0.0015 |
| 7×10 | 4.5 | 3.7 | 3.4 | 10 | 2 | 2 | 3 | 3 | 0.0014 |
| 8×11 | 4.5 | 3.7 | 4.4 | 13 | 2 | 2 | 3 | 3 | 0.0015 |
| 9×12 | 4.5 | 3.7 | 5.7 | 8.7 | 2 | 2 | 3 | 3 | 0.0017 |
| 10×13 | 4.5 | 3.7 | 7 | 12 | 2 | 2 | 3 | 3 | 0.0018 |
| 11×14 | 4.5 | 3.7 | 8 | 15 | 2 | 2 | 3 | 3 | 0.002 |
| 12×15 | 4.5 | 3.7 | 10 | 19 | 2 | 2 | 3 | 3 | 0.0022 |
| 13×16 | 4.5 | 3.7 | 12 | 23 | 2 | 2 | 3 | 3 | 0.0023 |
| 14×18 | 6.3 | 5.3 | 20 | 34 | 3 | 3 | 4 | 5 | 0.0049 |
| 15×19 | 6.3 | 5.3 | 23 | 41 | 3 | 3 | 4 | 5 | 0.0053 |
| 16×20 | 5.3 | 5.3 | 26 | 48 | 3 | 3 | 4 | 5 | 0.0055 |
| 17×21 | 6.3 | 5.3 | 29 | 56 | 3 | 3 | 4 | 5 | 0.0058 |
| 18×22 | 6.3 | 5.3 | 33 | 65 | 3 | 3 | 4 | 5 | 0.0061 |
| 19×24 | 6.3 | 5.3 | 36 | 91 | 3 | 3 | 4 | 5 | 0.0078 |
| 20×25 | 6.3 | 5.3 | 40 | 103 | 3 | 3 | 4 | 5 | 0.0082 |
| 22×26 | 6.3 | 5.3 | 48 | 100 | 3 | 3 | 4 | 5 | 0.0072 |
| 24×28 | 5.3 | 5.3 | 58 | 122 | 3 | 3 | 4 | 5 | 0.0079 |
| 25×30 | 6.3 | 5.3 | 62 | 171 | 3 | 3 | 4 | 5 | 0.01 |
| 28×32 | 6.3 | 5.3 | 78 | 171 | 3 | 3 | 4 | 5 | 0.008 |
| 30×35 | 6.3 | 5.3 | 90 | 252 | 3 | 3 | 4 | 5 | 0.012 |
| 32×36 | 6.3 | 5.3 | 102 | 223 | 3 | 3 | 4 | 5 | 0.01 |
| 35×40 | 7 | 6 | 138 | 339 | 3 | 3 | 4 | 5 | 0.02 |
| 36×42 | 7 | 6 | 147 | 439 | 3 | 3 | 4 | 5 | 0.02 |
| 38×44 | 7 | 6 | 163 | 492 | 3 | 3 | 4 | 5 | 0.02 |
| 40×45 | 8 | 6.6 | 199 | 428 | 3 | 4 | 5 | 6 | 0.02 |
| 42×48 | 8 | 6.6 | 219 | 580 | 3 | 4 | 5 | 6 | 0.03 |
| 45×52 | 10 | 8.6 | 328 | 750 | 3 | 4 | 5 | 6 | 0.05 |
| 48×55 | 10 | 8.6 | 373 | 865 | 3 | 4 | 5 | 6 | 0.05 |
| 50×57 | 10 | 8.6 | 405 | 948 | 3 | 4 | 5 | 6 | 0.05 |
| 55×62 | 10 | 8.6 | 405 | 948 | 3 | 4 | 5 | 6 | 0.05 |
| 56×64 | 12 | 10.4 | 615 | 1370 | 3 | 4 | 5 | 7 | 0.07 |
| 60×68 | 12 | 10.4 | 705 | 1590 | 3 | 4 | 5 | 7 | 0.07 |
| 63×71 | 12 | 10.4 | 780 | 1760 | 3 | 4 | 5 | 7 | 0.08 |
| 65×73 | 120 | 10.4 | 830 | 1880 | 3 | 4 | 5 | 7 | 0.08 |
| 70×79 | 14 | 12.2 | 1120 | 2460 | 3 | 4 | 5 | 7 | 0.11 |
| 71×80 | 14 | 12.2 | 1290 | 2800 | 3 | 4 | 5 | 7 | 0.11 |
| 75×84 | 14 | 12.2 | 1290 | 2800 | 4 | 5 | 6 | 8 | 0.12 |
| 80×91 | 17 | 15 | 1810 | 3910 | 4 | 5 | 6 | 8 | 0.12 |
| 85×96 | 17 | 15 | 2040 | 4440 | 4 | 5 | 6 | 8 | 0.2 |
| 90×101 | 17 | 15 | 2290 | 5010 | 4 | 5 | 6 | 8 | 0.2 |
| 95×106 | 17 | 15 | 2550 | 5610 | 4 | 5 | 6 | 8 | 0.22 |
| 100×114 | 21 | 18.7 | 3520 | 7950 | 4 | 5 | 6 | 8 | 0.4 |
| 110×124 | 21 | 18.7 | 4250 | 9570 | 4 | 5 | 6 | 8 | 0.4 |
Why Choose Ringfeder’s RfN 8006 Series?
High-quality Ringfeder RfN 8006 Locking Elements are used for friction-locked shaft-hub connections. They are wear- and maintenance-free, compact, flexible, and ensure maximum reliability and precision. Available in diameters from 6 to 1,000 mm and in slit and solid types, they are perfect for low to medium axial loads and torques.
These elements are ideal for mechanical engineering, machine tools, woodworking machinery, conveying equipment, belt drives, wire and chain drives, gearboxes, pulley and flywheel mounting, hammers and presses, pumps, compressors, ventilation and fan systems, combustion engines, brake disc mounting, workpiece clamping, and more. They are also extensively used in automotive, aerospace, ship construction, excavator construction, and mining.
Authorized Distributor for Ringfeder Germany in Vietnam
Choosing the Locking Assemblies RfN 8006 means investing in a solution that seamlessly blends precision, durability, and cost-efficiency. Designed to meet the demands of industrial equipment and mechanical systems, this product guarantees exceptional performance and reliability.
In Vietnam, Dai Hong Phat Corp proudly serves as the authorized distributor for Ringfeder Germany's locking assemblies, ensuring access to genuine, high-quality products backed by professional support and expertise.
---------------------------------------------------------------------------------------
Contact Dai Hong Phat Corp today to learn more!!
