Shrink Discs Safety Covers
The RINGFEDER® Safety Cover provides reliable contact protection for rotating shrink discs and is made of high-quality, tear-resistant, abrasion-resistant, and media-resistant synthetic material.
In Vietnam & some Southeast Asian countries, Dai Hong Phat is an authorized distributor of Ringfeder Power Transmission.
Main Characteristics of The Ringfeder Shrink Discs Safety Covers
Original Ringfeder Safety Covers is also known as "nắp chụp bảo vệ bóp trục", specifically developed for the three-part Ringfeder RfN 4061 series and the two-part Ringfeder RfN 4161 series, offer reliable and safe contact protection against screw heads of rotating shrink discs. Crafted from high-quality black synthetic material, these safety covers provide exceptional tear and abrasion resistance along with excellent media stability.
- Available in 13 optimal sizes, the shrink discs of the Ringfeder RfN 4061 and Ringfeder RfN 4161 series can accommodate up to size 140 x 230 mm.
- High-Quality Synthetic Material: Made from durable synthetic material, these covers provide excellent tear and abrasion resistance along with high stability.
- Available up to Shrink Disc Size 140 x 230 mm, capable of covering shrink discs up to a size of 140 x 230 mm, catering to different sizes and ensuring comprehensive protection.
- Inner Diameter (d): 49-225 mm, this range accommodates a variety of shaft sizes, enhancing versatility.
- Solid Shaft Diameter (dw): 26-115 mm, suitable for a broad range of solid shaft diameters, ensuring compatibility with different systems.
- Length (t): 22.5-67 mm, provides different length options to meet specific requirements, contributing to secure and stable coverage.
Learn more about: Features and Advantages of Shrink Discs in Industrial Applications
Shrink Discs Safety Covers product specifications
| Safety Covers Catalogogue | Safety Covers Installation Instruction |
 | |

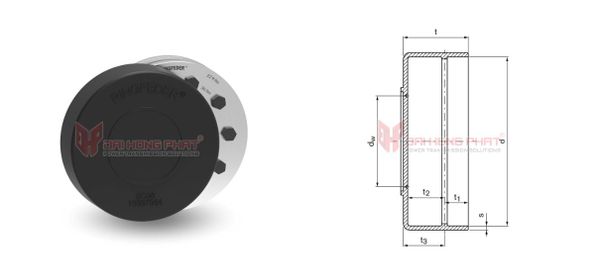

Safety Covers
| No | Safety Covers [mm] | Shrink Discs | |||||||
| d | dw | s | t | t1 | t2 | t3 | RfN 4061 d x D | RfN 4161 d x D | |
| SC01 | 49 | 26 | 2.4 | 22.5 | 6 | 14.1 | 16.5 | 21 x 50 24 x 50 30 x 52 | 24 x 50 26 x 51.5 |
| SC02 | 59 | 26 | 2 | 23 | 7 | 15 | 17 | 30 x 60 | 30 x 60 |
| SC03 | 70 | 33 | 2 | 27 | 5.5 | 19.5 | 21.5 | 36 x 72 38 x 72 40 x 72 | 36 x 72 38 x 72 |
| SC04 | 78 | 40 | 2 | 29 | 7.5 | 19.5 | 21.5 | 44 x 80 48 x80 | 40 x 80 44 x 80 |
| SC05 | 88 | 42 | 2 | 30.5 | 8.3 | 20.25 | 22.25 | 50 x90 | 50 x 90 |
| SC06 | 107 | 60 | 3 | 33.5 | 8.8 | 21.75 | 24.75 | 62 x 110 68 x 115 | 60 x 110 62 x 110 68 x 115 |
| SC07 | 135 | 70 | 3 | 36.8 | 9 | 24.8 | 27.8 | 75 x 138 80 x 145 | 75 x 138 80 x 141 |
| SC08 | 151 | 75 | 3 | 44.8 | 13 | 28.8 | 31.8 | 85 x 155 90 x 155 | 85 x 155 90 x 155 |
| SC09 | 180 | 95 | 3 | 58.4 | 18.5 | 36.9 | 39.9 | 110 x 185 115 x 185 | 100 x 185 105 x 185 110 x 185 |
| SC10 | 166 | 80 | 3 | 51.5 | 15.6 | 32.9 | 35.9 | 95 x 170 100 x 170 | 95 x 170 |
| SC11 | 195 | 95 | 3.5 | 61.5 | 16 | 42 | 45.5 | --- | 115 x 200 120 x 200 |
| SC12 | 210 | 100 | 3.5 | 59.4 | 16 | 39.9 | 43.4 | 125 x 215 | 125 x 215 |
| SC13 | 225 | 115 | 3.5 | 67 | 19.3 | 44.25 | 47.75 | 140 x 230 | 130 x 230 135 x 230 140 x 230 |
Why Choose Ringfeder Safety Cover for RfN 4061 & RfN 4161?
Dai Hong Phat Corp specializes in the supply of genuine Ringfeder Safety Cover for RfN 4061 & RfN 4161 throughout Vietnam.
Dai Hong Phat Corp commits to more than 15 years of prestige, ensuring that customers buy 100% genuine Shrink Discs Safety Covers with high quality and the best price on the market.
---------------------------------------------------------------------------------------
Contact Dai Hong Phat Corp today to learn more!!
