Shrink Discs RfN 4181
Key Features of Shrink Discs RfN 4181

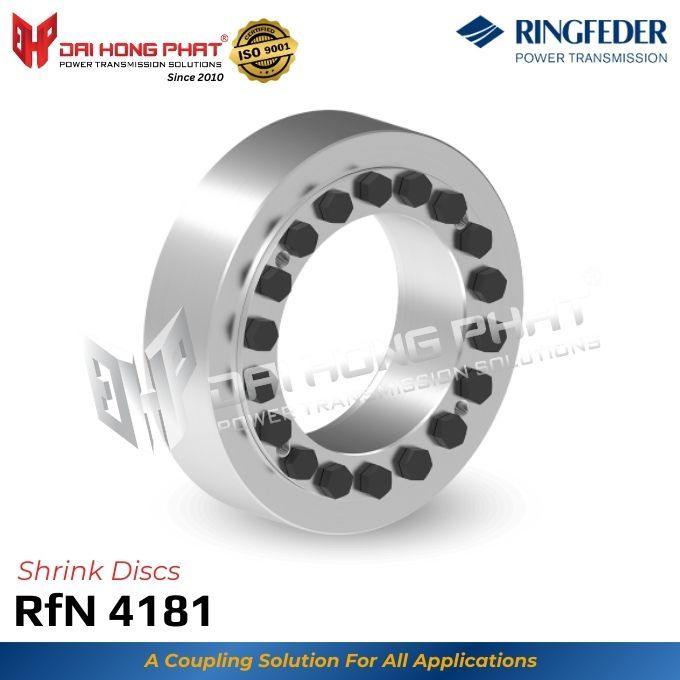

The Ringfeder RfN 4181 is also known as "thiết bị bóp trục RfN 4181", has two-part heavy-duty shrink series with an additional guide mechanism for the inner ring.
- Designed for the transmission of maximum torques, suitable for securing all types of hubs onto shafts and axles.
- Replaces traditional shrink fits, keys, polygon connections, and splined shafts.
- Simplified manufacturing with only plain shaft and bore diameters required.
- Fully replaceable, working without positive locking.
- Easy mounting with standard screws and tools; no additional machining required; short assembly times, cost savings in series production.
- Low susceptibility to contamination; prevents ingress of dirt and moisture; easy adjustability without the need for stops, steps, key-ways, or splines.
Specifications include:

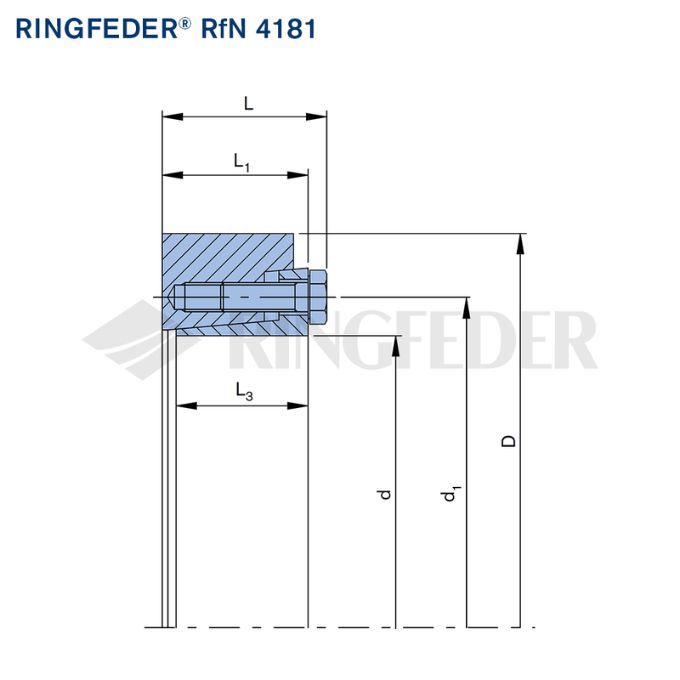

- Inner Diameter d: 220-800 mm
- Outer Diameter D: 370-1,230 mm
- Overall Length L: 115-373 mm
- Torque T: 160,000-8 Mio. Nm
Shrink Discs RfN 4181 product specifications
| RfN 7181 Catalogue | RfN 7181 Installation Instruction |
 | |
| Shrink Discs dimensions [mm] | TA | T | Gw | Tmax | |||
| d x D | dw | d1 | L | [Nm] | [Nm] | [kg] | [mm] |
| 220 x 370 | 160 | 270 | 115.8 | 570 | 160000 | 52.11 | 176000 |
| 170 | 182000 | 200200 | |||||
| 180 | 206000 | 226600 | |||||
| 240 x 405 | 170 | 296 | 121.4 | 570 | 190000 | 66.58 | 209000 |
| 180 | 215000 | 236500 | |||||
| 200 | 269000 | 295900 | |||||
| 260 x 430 | 190 | 318 | 128.4 | 580 | 247000 | 77.29 | 271700 |
| 200 | 277000 | 304700 | |||||
| 220 | 340000 | 374000 | |||||
| 280 x 460 | 210 | 340 | 146.4 | 570 | 282000 | 103.28 | 310200 |
| 220 | 313000 | 344300 | |||||
| 240 | 380000 | 418000 | |||||
| 300 x 485 | 220 | 360 | 154.1 | 980 | 385000 | 117.05 | 423500 |
| 230 | 425000 | 467500 | |||||
| 250 | 505000 | 555500 | |||||
| 320 x 520 | 240 | 380 | 156.6 | 980 | 444000 | 132.1 | 488400 |
| 250 | 488000 | 536800 | |||||
| 270 | 580000 | 638000 | |||||
| 340 x 570 | 250 | 402 | 167.5 | 980 | 564000 | 184.25 | 620400 |
| 260 | 612000 | 673200 | |||||
| 270 | 668000 | 734800 | |||||
| 360 x 590 | 270 | 424 | 182.7 | 980 | 658000 | 208.11 | 723800 |
| 280 | 712000 | 783200 | |||||
| 300 | 825000 | 907500 | |||||
| 380 x 640 | 290 | 444 | 185.1 | 1450 | 735000 | 247.5 | 808500 |
| 300 | 790000 | 869000 | |||||
| 310 | 845000 | 929500 | |||||
| 390 x 650 | 290 | 470 | 186.3 | 1900 | 903000 | 259.55 | 993300 |
| 300 | 970000 | 1067000 | |||||
| 320 | 1101000 | 1221000 | |||||
| 420 x 670 | 320 | 495 | 203.9 | 1450 | 969000 | 284.75 | 1065900 |
| 330 | 1038000 | 1141800 | |||||
| 350 | 1183000 | 1301300 | |||||
| 440 x 740 | 340 | 518 | 212.9 | 1450 | 1212000 | 398 | 1333200 |
| 350 | 1292000 | 1421200 | |||||
| 370 | 1460000 | 1606000 | |||||
| 480 x 790 | 380 | 552 | 243.7 | 1900 | 1815000 | 495.4 | 1996500 |
| 390 | 1920000 | 2112000 | |||||
| 410 | 2118000 | 2329800 | |||||
| 500 x 835 | 400 | 572 | 238.7 | 1900 | 2054000 | 626.3 | 2259400 |
| 410 | 2145000 | 2359500 | |||||
| 430 | 2377000 | 2614700 | |||||
| 530 x 850 | 430 | 608 | 260 | 1900 | 2397000 | 653.4 | 2636700 |
| 440 | 2520520 | 2772572 | |||||
| 460 | 2777417 | 3055159 | |||||
| 560 x 940 | 450 | 632 | 260 | 1900 | 2545000 | 748.7 | 2799500 |
| 460 | 2670006 | 2937006 | |||||
| 480 | 2929521 | 3222473 | |||||
| 590 x 960 | 470 | 654 | 380 | 1900 | 4012000 | 1173.9 | 4413200 |
| 480 | 4199188 | 4619106 | |||||
| 500 | 4587043 | 5045747 | |||||
| 620 x 970 | 500 | 720 | 304 | 1900 | 3402000 | 886.7 | 3742200 |
| 520 | 3708000 | 4078800 | |||||
| 540 | 4028000 | 4430800 | |||||
| 660 x 1040 | 530 | 728 | 418 | 3500 | 5758000 | 1448.2 | 6333800 |
| 550 | 6236900 | 6860590 | |||||
| 570 | 6735919 | 7409510 | |||||
| 700 x 1140 | 560 | 815 | 315 | 2700 | 4518700 | 1467.5 | 4970570 |
| 580 | 4880000 | 5368000 | |||||
| 600 | 5258000 | 5783800 | |||||
| 750 x 1150 | 600 | 900 | 340 | 3500 | 7669000 | 1847.5 | 8435900 |
| 620 | 8228643 | 9051507 | |||||
| 650 | 9106895 | 10017584 | |||||
| 800 x 1230 | 640 | 935 | 373 | 2700 | 6897960 | 1894.4 | 7587756 |
| 660 | 7378000 | 8115800 | |||||
| 700 | 8390500 | 9229550 | |||||
