Shrink Discs RfN 4022
Key Features of Shrink Discs RfN 4022
The RfN 4022, also known as "thiết bị bóp trục RfN 4022", is arranged around the hub with a single transmission interface. It provides a highly concentric and balanced connection, making it ideal for high-speed applications. However, shrink discs require complex calculations, precise machining tolerances, and fine surface finishes, as well as considerable effort for mounting and dismounting.
- Inner Diameter (d): 11-440 mm, this range of diameters accommodates a wide variety of shaft sizes, providing flexibility for numerous industrial applications.
- Outer Diameter (D): 33.5-670 mm, suitable for a broad range of hub sizes, ensuring compatibility with different mechanical systems.
- Thrust Ring Width (L): 10-176 mm, this dimension allows for various thrust ring widths, contributing to secure and stable connections.
- Torque (T): 50-426,000 Nm, capable of handling torque values from low to extremely high, making it ideal for a variety of industrial applications requiring significant force transmission.

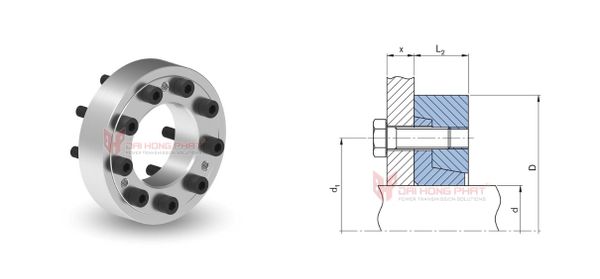

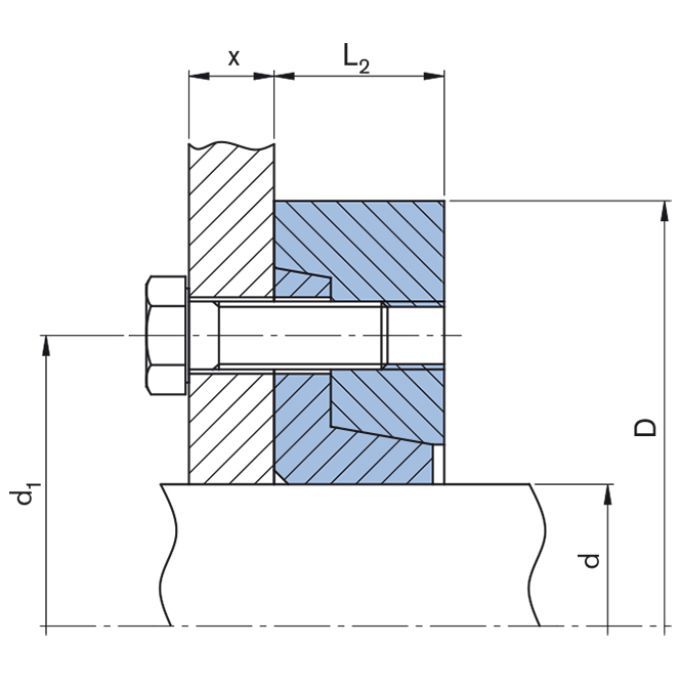

Shrink Discs RfN 4022 product specifications
| RfN 4022 Catalogue | RfN 4022 Installation Instruction |
 | |
| Model | Shrink discs dimensions [mm] | TA [Nm] | T [Nm] | Gw [kg] | |||
| d | D | d1 | L2 | ||||
| 12 SD-x | 11 | 35.5 | 24 | 10 | 12 | 50 | 0.1 |
| 12 | 50 | ||||||
| -- | -- | ||||||
| 14 SD-x | 13 | 38 | 26 | 10 | 12 | 70 | 0.1 |
| 14 | 70 | ||||||
| -- | -- | ||||||
| 16 SD-x | 15 | 41 | 28 | 14 | 12 | 80 | 0.1 |
| 16 | 80 | ||||||
| -- | -- | ||||||
| 18 SD-x | 17 | 44 | 30 | 14 | 12 | 130 | 0.1 |
| 18 | 130 | ||||||
| -- | -- | ||||||
| 20 SD-x | 19 | 47 | 32 | 15 | 12 | 140 | 0.2 |
| 20 | 140 | ||||||
| -- | -- | ||||||
| 25 SD-x | 22 | 50 | 36 | 19 | 12 | 200 | 0.2 |
| 24 | 200 | ||||||
| 25 | 200 | ||||||
| 30 SD-x | 26 | 60 | 44 | 19 | 12 | 300 | 0.3 |
| 28 | 300 | ||||||
| 30 | 300 | ||||||
| 35 SD-x | 32 | 72 | 52 | 21 | 30 | 450 | 0.5 |
| 35 | 500 | ||||||
| 36 | 500 | ||||||
| 40 SD-x | 38 | 80 | 61 | 23 | 30 | 720 | 0.6 |
| 40 | 750 | ||||||
| 44 | 750 | ||||||
| 50 SD-x | 42 | 90 | 68 | 25 | 30 | 1,000 | 0.9 |
| 45 | 1,300 | ||||||
| 50 | 1,300 | ||||||
| 55 SD-x | 45 | 100 | 72 | 27 | 30 | 1,600 | 1.2 |
| 52 | 1,600 | ||||||
| 55 | 1,600 | ||||||
| 60 SD-x | 50 | 110 | 80 | 27 | 30 | 2,000 | 1.4 |
| 60 | 2,000 | ||||||
| 62 | 2,000 | ||||||
| 70 SD-x | 60 | 115 | 86 | 27 | 30 | 2,100 | 1.4 |
| 65 | 2,100 | ||||||
| 70 | 2,100 | ||||||
| 80 SD-x | 70 | 138 | 100 | 29 | 59 | 4,000 | 2.2 |
| 75 | 4,000 | ||||||
| 80 | 4,000 | ||||||
| 90 SD-x | 80 | 155 | 114 | 35 | 59 | 5,700 | 3.4 |
| 85 | 5,700 | ||||||
| 90 | 5,700 | ||||||
| 100 SD-x | 90 | 170 | 124 | 40 | 100 | 8,400 | 5 |
| 95 | 8,400 | ||||||
| 100 | 8,400 | ||||||
| 110 SD-x | 100 | 185 | 136 | 47 | 100 | 9,200 | 6 |
| 105 | 9,200 | ||||||
| 110 | 9,200 | ||||||
| 125 SD-x | 115 | 215 | 160 | 50 | 250 | 20,000 | 9 |
| 120 | 21,000 | ||||||
| 125 | 21,000 | ||||||
| 140 SD-x | 130 | 230 | 172 | 54 | 250 | 26,000 | 11 |
| 135 | 26,000 | ||||||
| 140 | 26,000 | ||||||
| 155 SD-x | 150 | 263 | 192 | 58 | 250 | 31,000 | 15 |
| 155 | 31,000 | ||||||
| 160 | 31,000 | ||||||
| 170 SD-x | 160 | 290 | 204 | 62 | 250 | 36,000 | 21 |
| 165 | 36,000 | ||||||
| 170 | 36,000 | ||||||
| 180 SD-x | 170 | 300 | 218 | 62 | 250 | 43,000 | 22 |
| 175 | 43,000 | ||||||
| 180 | 43,000 | ||||||
| 190 SD-x | 180 | 320 | 232 | 79 | 490 | 60,000 | 32 |
| 185 | 60,000 | ||||||
| 190 | 60,000 | ||||||
| --- | --- | --- | --- | --- | --- | --- | --- |
...Learn more specifications at: Specifications of RfN 4022...Why Choose Shrink Discs RfN 4022?
The Ringfeder RfN 4022, tailored for heavy-duty applications requiring high torque and bending moments, offers smooth shaft and bore diameters with surface finishes and tolerances that are easy to achieve. This model is highly reliable, simple to adjust, install, and disassemble, and exhibits low susceptibility to contamination.
Shrink Discs RfN 4022 minimize surface tension in connected parts and are primarily used in scenarios where the wall thickness of hollow shafts is extremely thin or where hollow shafts have a low yield limit due to materials like grey cast iron or aluminum. This makes them ideal for applications such as aluminum conveyor pulleys or thin-walled levers.
Dai Hong Phat Corp is a leading provider of Ringfeder Shrink Discs products throughout Vietnam.
As the trusted importer and distributor of 100% genuine Ringfeder shaft tightening equipment in Vietnam and Southeast Asia, we guarantee the highest quality and authenticity of Ringfeder RfN 4022 products.
With over 15 years of reputable service, Dai Hong Phat ensures that our customers receive high-quality, authentic Ringfeder products at the most competitive market prices. Our extensive experience and dedication to customer satisfaction make us the preferred choice for all your Ringfeder Shrink Discs needs.
---------------------------------------------------------------------------------------
