Locking Assemblies RfN 7110 Stainless Steel

Locking Assemblies RfN 7110 Stainless Steel

The Ringfeder RfN 7110 Stainless Steel is a compact self-centering connection designed without axial displacement, allowing for smaller and more economical hub designs.

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Features of Locking Assemblies RfN 7110 Stainless Steel

The Locking Assemblies RfN 7110 Stainless Steel are designed to be compact and self-centering, eliminating axial displacement during operation. It also known as "khớp khóa trục RfN 7110 SST".

Their small dimensions allow for economic design of the hub, as the locking screws are positioned outside the clamping area, which keeps pressures relatively low.This design ensures efficient performance and cost-effectiveness, making them ideal for various industrial applications.

- The product is available in 26 different sizes, offering a versatile range for various applications.

- The inner diameters span from 8 to 50 mm, while the outer diameters range from 15 to 65 mm. This allows for precise fitting and adaptability across different systems.

- The overall length of these components varies between 28 and 82 mm, accommodating a wide array of installation requirements.

- These components are capable of handling torque between 16 and 1883 Nm, ensuring robust and reliable performance in demanding conditions. Their diverse size options and torque capacities make them suitable for a broad spectrum of industrial uses, providing flexibility and efficiency in operation.

Learn more: The origins of Locking Assemblies

Product Specifications of Locking Assemblies RfN 7110 SST

RfN 7110 SST Catalogue	RfN 7110 SST Installation Instruction

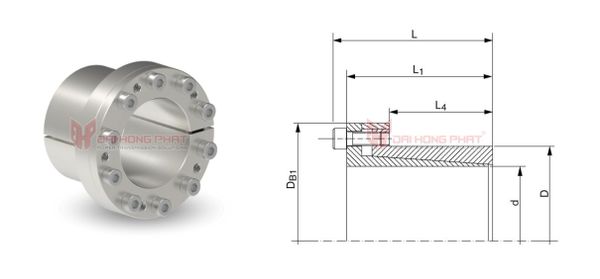

Dimensions [mm]			Transmissible torques [Nm]		Locking screws		Gw
d x D	L	L1	T	TA	nSc	DG	[kg]
8x15	28	24	16	2.9	4	M4	0.06
9x16	31	27	18	2.9	4	M4	0.07
10x16	31	27	20	2.9	4	M4	0.06
11x18	31	27	28	2.9	4	M4	0.07
12x18	31	27	30	2.9	4	M4	0.07
13x23	31	27	33	2.9	4	M4	0.12
14x23	31	27	35	2.9	4	M4	0.12
15x24	42	36	85	14	3	M6	0.21
16x24	42	36	93	14	3	M6	0.2
17x26	44	38	127	14	4	M6	0.22
18x26	44	38	139	14	4	M6	0.24
19x27	44	38	147	14	4	M6	0.25
20x28	44	38	155	14	4	M6	0.25
22x32	51	45	178	14	4	M6	0.34
24x34	51	45	197	14	4	M6	0.36
25x34	51	45	197	14	4	M6	0.35
28x39	51	45	286	14	5	M6	0.43
30x41	51	45	368	14	6	M6	0.43
32x43	56	50	391	14	6	M6	0.46
35x47	56	50	573	14	8	M6	0.52
38x50	56	50	620	14	8	M6	0.61
40x53	58	52	736	14	9	M6	0.67
42x55	58	52	771	14	9	M6	0.74
45x59	72	64	1356	34	8	M8	1.12
48x62	72	64	1449	34	8	M8	1.14
50x65	82	74	1883	34	10	M8	1.3

Why Choose Ringfeder’s RfN 7110 Series?

The RfN 7110 SST is a compact, self-centering locking assembly designed without axial displacement. Its small dimensions make it ideal for applications requiring minimal space. The positioning of the locking screws outside the actual clamping area ensures that pressures remain relatively low, contributing to its efficient performance.

Additionally, this design allows the hub to be economically small, further optimizing the overall system. The assembly's self-centering feature guarantees precise alignment, enhancing reliability and ease of use. This combination of compact size and efficient design makes the locking devices RfN 7110 SST a versatile and effective solution for various applications.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder RfN 7110 throughout Vietnam.

Choosing the Locking Assemblies RfN 7110 SST means investing in a solution that seamlessly blends precision, durability, and cost-efficiency. Designed to meet the demands of industrial equipment and mechanical systems, this product guarantees exceptional performance and reliability.

In Vietnam, Dai Hong Phat Corp proudly serves as the authorized distributor for Ringfeder Germany's locking assemblies, ensuring access to genuine, high-quality products backed by professional support and expertise.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
