Locking Assemblies RfN 7061 Stainless Steel

Locking Assemblies RfN 7061 Stainless Steel

The Ringfeder RfN 7061 Stainless Steel is a self-centering 2-piece connection designed for medium torque applications, offering easy installation, simple disassembly, and cost-efficient mounting.

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Features of Locking Assemblies RfN 7061 Stainless Steel

Locking Assemblies RfN 7061 Stainless Steel are self-centering, 2-piece assemblies specifically designed for medium torque applications. It also known as "khớp khóa trục RfN 7061 SST". These assemblies ensure precise alignment during installation, even though minor axial displacement of the hub occurs in the direction opposite to the screw head. This feature ensures reliable performance and maintains the integrity of the connection.

Due to the small number of screws used in the design, these assemblies offer cost savings during mounting. The streamlined installation process reduces labor and time, making them an efficient choice for various applications. Additionally, disassembly is straightforward, requiring only a few release screws, which further simplifies maintenance and minimizes downtime.

- RfN 7061 SST offers a versatile range of sizes, with inner diameters spanning from 6 to 50 mm and outer diameters ranging from 16 to 80 mm. This broad range ensures adaptability for various applications.

- The overall length of these components varies from 13.5 to 44 mm, providing flexibility to accommodate different installation requirements.

- These components can handle torque values between 3 and 1472 Nm, ensuring robust and reliable performance in demanding conditions

Learn more: The origins of Locking Assemblies

Product Specifications of Locking Assemblies RfN 7061 SST

RfN 7061 SST Catalogue	RfN 7061 SST Installation Instruction

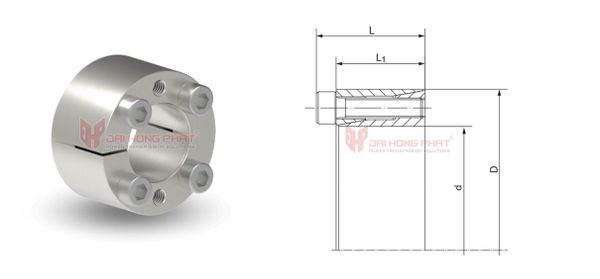

Dimensions [mm]			Transmissible torques [Nm]		Locking screws		Gw
d x D	L	L1	T	TA	nSc	DG	[kg]
6x16	13.5	11	3	0.5	3	M2,5	0.012
6.35x16	13.5	11	3	0.5	3	M2,5	0.012
7x17	13.5	11	3	0.5	3	M2,5	0.013
8x18	13.5	11	4	0.5	3	M2,5	0.015
9x20	15.5	13	6	0.5	4	M2,5	0.02
9.53x20	15.5	13	6	0.5	4	M2,5	0.019
10x20	15.5	13	6	0.5	4	M2,5	0.019
11x22	15.5	13	7	0.5	4	M2,5	0.024
12x22	15.5	13	7	0.5	4	M2,5	0.022
14x26	20	17	19	1.3	4	M3	0.039
15x28	20	17	22	1.3	4	M3	0.044
16x32	21	17	38	2.9	4	M4	0.066
17x35	25	21	41	2.9	4	M4	0.092
18x35	25	21	44	2.9	4	M4	0.087
19x35	25	21	46	2.9	4	M4	0.084
20x38	26	21	82	5.7	4	M5	0.1
22x40	26	21	88	5.7	4	M5	0.11
24x47	32	26	193	14	4	M6	0.2
25x47	32	26	201	14	4	M6	0.19
25.4x47	32	26	205	14	4	M6	0.19
28x50	32	26	341	14	6	M6	0.2
30x55	32	26	364	14	6	M6	0.27
32x55	32	26	387	14	6	M6	0.25
35x60	37	31	565	14	8	M6	0.36
38x65	37	31	620	14	8	M6	0.43
40x65	37	31	651	14	8	M6	0.4
42x75	44	36	930	34	6	M8	0.75
45x75	44	36	1007	34	6	M8	0.7
48x80	44	36	1433	34	8	M8	0.8
50x80	44	36	1472	34	8	M8	0.76

Why Choose Ringfeder’s RfN 7061 SST?

RfN 7061 Locking Assemblies Stainless Steel are self-centering, 2-piece assemblies designed for medium torques. During installation, the hub experiences a slight axial displacement in the opposite direction of the screw head. The small number of screws used in these assemblies ensures cost savings during mounting. For disassembly, only a few release screws are required.

Ringfeder Locking devices RfN 7061 SST is suitable for precision tightening of all types of shafts, e.g. gears, wheels, chains, levers, brake discs, sliding gears, couplings or flanges, and shafts of couplings.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder Locking Assemblies RfN 7061 Stainless Steel throughout Vietnam.

Choosing the Locking Assemblies RfN 7061 SST means investing in a solution that seamlessly blends precision, durability, and cost-efficiency. Designed to meet the demands of industrial equipment and mechanical systems, this product guarantees exceptional performance and reliability.

In Vietnam, Dai Hong Phat Corp proudly serves as the authorized distributor for Ringfeder Germany's locking assemblies, ensuring access to genuine, high-quality products backed by professional support and expertise.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
