The Ringfeder RfN 7013.1 Stainless Steel Locking Assembly is a flange-type connection designed for precise self-centering, high concentricity, and secure axial positioning in shaft-hub applications. Available for metric and inch shaft sizes.

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Features of Locking Assemblies RfN 7013.1 Stainless Steel

Locking Assemblies RfN 7013.1 Stainless Steel are flange-type units made of stainless steel. They secure the hub positively against their extended flange, preventing axial movement during tightening. These assemblies are ideal for applications requiring self-centering action and good concentricity of mounted components, especially with hubs that have straight-thru bores. It also known as "khớp khóa trục RfN 7013.1 SST".

- RfN 7013.1 Stainless Steel is available in 30 different sizes, providing a versatile range for various applications.

- The inner diameters range from 19 to 150 mm, while the outer diameters span from 47 to 200 mm. This range ensures that the components can fit a wide variety of setups and requirements.

- The overall length of these components varies from 37 to 77 mm, allowing for flexibility in installation. They can handle torque values between 199 and 19,950 Nm, ensuring robust and reliable performance in demanding conditions.

- Their diverse size options and torque capacities make them suitable for a broad spectrum of industrial applications, offering both efficiency and reliability in operation.

Product Specifications of Locking Assemblies RfN 7013.1 SST

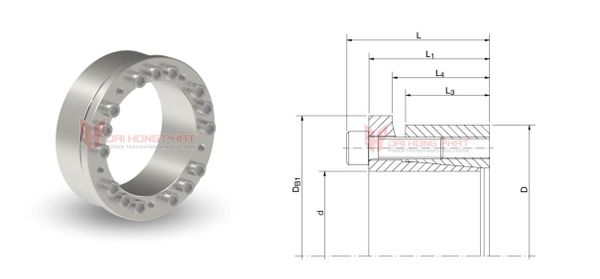

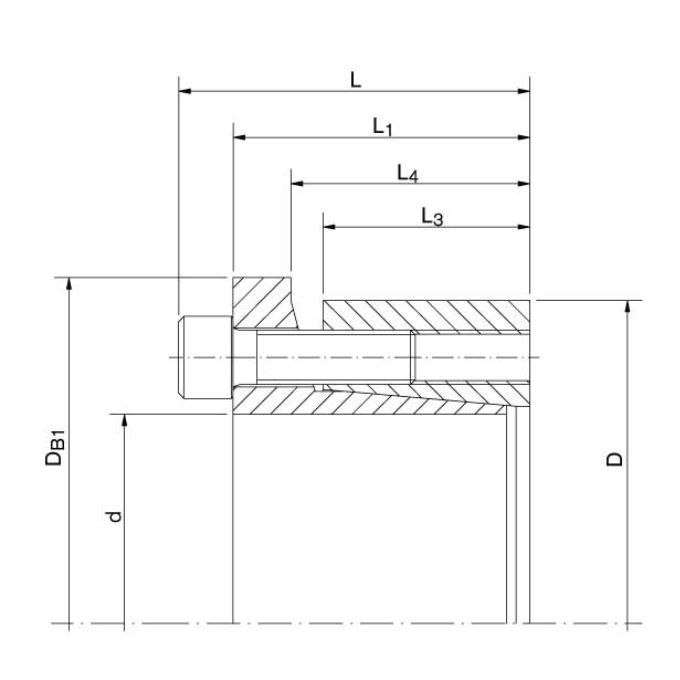

RfN 7013.1 SST Catalogue	RfN 7013.1 SST Installation Instruction

Dimensions [mm]				Transmissible torques [Nm]		Locking screws		Gw
d x D	L	L1	L3	T	Tmax	nSc	DG	[kg]
19 x 47	37	31	21,7	199	248	6	M6x20	0.29
20 x 47	37	31	21,7	210	262	6	M6x20	0.29
22 x 47	37	31	21,7	231	288	6	M6x20	0.27
24 x 50	37	31	21,7	294	367	7	M6x20	0.31
25 x 50	37	31	21,7	308	385	7	M6x20	0.3
28 x 55	37	31	21,7	343	428	7	M6x20	0.36
30 x 55	37	31	21,7	371	463	7	M6x20	0.34
32 x 60	37	31	21,7	518	647	9	M6x20	0.41
35 x 60	37	31	21,7	567	708	9	M6x20	0.38
38 x 65	37	31	21,7	623	778	10	M6x20	0.44
40 x 65	37	31	21,7	685	822	10	M6x20	0.41
42 x 75	46	38	25,3	1211	1513	9	M8x25	0.76
45 x 75	46	38	25,3	1302	1627	9	M8x25	0.7
48 x 80	46	38	25,3	1386	1732	9	M8x25	0.8
50 x 80	46	38	25,3	1449	1811	9	M8x25	0.76
55 x 85	46	38	25,3	1778	2222	10	M8x25	0.82
60 x 90	46	38	25,3	1939	2423	10	M8x25	0.88
65 x 95	46	38	25,3	2506	3132	12	M8x25	0.94
70 x 110	60	50	33,4	3570	4462	10	M10x35	2.1
75 x 115	60	50	33,4	3822	4777	10	M10x35	2.2
80 x 120	60	50	33,4	4095	5118	10	M10x35	2.3
85 x 125	60	50	33,4	5215	6518	12	M10x35	2.4
90 x 130	60	50	33,4	5530	6912	12	M10x35	2.6
95 x 135	60	50	33,4	6930	8662	15	M10x35	2.7
100 x 145	68	58	40,8	7700	9265	15	M10x35	3.7
110 x 155	68	58	40,8	8470	10587	15	M10x35	4
120 x 165	68	58	40,8	10990	13737	18	M10x35	4.3
130 x 180	77	65	45,4	14490	18112	15	M12x40	5.9
140 x 190	77	65	45,4	15750	19687	15	M12x40	6.3
150 x 200	77	65	45,4	19950	24937	18	M12x40	6.7

Why Choose Ringfeder’s RfN 7013.1 SST?

Excellent concentricity and easy dismantling – these Locking Assemblies provide exceptional concentricity between the clamped parts. The flange is reinforced at the critical point, preventing bending or lifting of the inner ring during assembly, which ensures easy dismantling. The dimensional accuracy of the RfN 7013.1 Locking Assemblies Stainless Steel allows their use in high rotation speed applications. The material strength makes them particularly suitable for high radial loads.

Axial hub positioning – the increased outer diameter of the flange prevents axial movement of the hub during assembly, enhancing the run-out ability of the Locking Assembly. The increased number of clamping screws ensures high torque transmission values, similar to the RfN 7013.0, providing reliable performance in demanding conditions.

Authorized Distributor for Ringfeder Germany in Vietnam

Choosing the Locking Assemblies RfN 7013.1 SST, you are investing in a solution that combines precision, durability, and cost-efficiency. Designed for industrial equipment and mechanical systems, this product ensures exceptional performance and reliability.

In Vietnam, Dai Hong Phat Corp is the authorized distributor for Ringfeder Germany's locking assemblies, providing access to genuine, high-quality products with professional support and expertise.

---------------------------------------------------------------------------------------
