Locking Assemblies RfN 7012 Stainless Steel
Identical in design and function to the traditional 7012 device, this unit is made of stainless steel for applications requiring rust free installation. Torque capacity is somewhat reduced due to the nature of stainless steel.
Key Features of Locking Assemblies RfN 7012 Stainless Steel
Locking Assemblies RfN 7012 Stainless Steel are designed to offer the same design and functionality as the traditional 7012 device but are made from stainless steel. This makes them ideal for applications requiring rust-free installations. Due to the properties of stainless steel, the torque capacity is slightly reduced compared to the standard 7012 device. It also known as "khớp khóa trục RfN 7012 SST".
These assemblies ensure reliable performance in various conditions while maintaining the benefits of stainless steel, such as corrosion resistance and longevity. They are suitable for applications where maintaining a clean and rust-free environment is crucial, providing a durable and efficient solution.
The RfN 7012 SST comes in 30 different sizes, offering a versatile range for various applications.
- Inner Diameter (d): Ranges from 19 to 150 mm, accommodating various shaft sizes.
- Outer Diameter (D): Spans from 47 to 200 mm, ensuring adaptability to different hub sizes.
- Overall Length (L): Varies between 27.5 and 52 mm, allowing flexibility in installation.
- Torque (T): Can handle values between 252 and 24,046 Nm, ensuring robust and reliable performance in demanding conditions.
These specifications make the RfN 7012 SST suitable for a wide spectrum of industrial applications, offering both efficiency and reliability in operation.

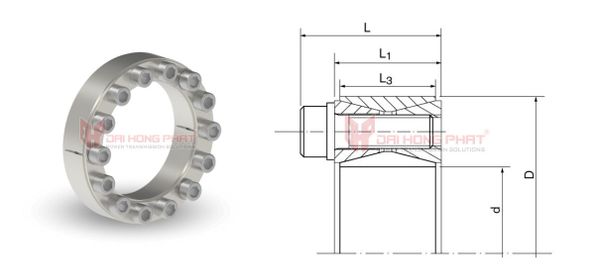

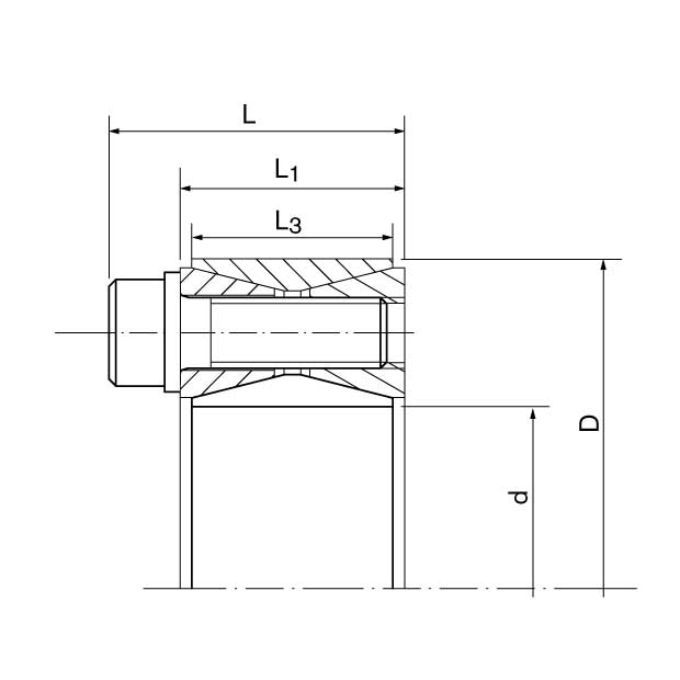

Product Specifications of Locking Assemblies RfN 7012 SST
| RfN 7012 SST Catalogue | RfN 7012 SST Installation Instruction |
 | |
| Dimensions [mm] | Transmissible torques [Nm] | Locking screws | Gw | |||||
| d x D | L | L1 | L3 | T | Tmax | nSc | DG | [kg] |
| 19 x47 | 27.5 | 20 | 17 | 252 | 269 | 8 | M6x18 | 0.24 |
| 20 x 47 | 27.5 | 20 | 17 | 265 | 320 | 8 | M6x18 | 0.24 |
| 22 x 47 | 27.5 | 20 | 17 | 289 | 350 | 8 | M6x18 | 0.23 |
| 24 x 50 | 27.5 | 20 | 17 | 353 | 428 | 9 | M6x18 | 0.26 |
| 25 x 50 | 27.5 | 20 | 17 | 367 | 445 | 9 | M6x18 | 0.25 |
| 28 x 55 | 27.5 | 20 | 17 | 408 | 495 | 9 | M6x18 | 0.3 |
| 30 x 55 | 27.5 | 20 | 17 | 435 | 528 | 9 | M6x18 | 0.29 |
| 32 x 60 | 27.5 | 20 | 17 | 617 | 748 | 12 | M6x18 | 0.34 |
| 35 x 60 | 27.5 | 20 | 17 | 671 | 815 | 12 | M6x18 | 0.32 |
| 38 x 65 | 27.5 | 20 | 17 | 906 | 1100 | 15 | M6x18 | 0.36 |
| 40 x 65 | 27.5 | 20 | 17 | 950 | 1153 | 15 | M6x18 | 0.34 |
| 42 x 75 | 33.5 | 24 | 20 | 1509 | 1767 | 12 | M8x22 | 0.6 |
| 45 x 75 | 33.5 | 24 | 20 | 1610 | 1885 | 12 | M8x22 | 0.57 |
| 48 x 80 | 33.5 | 24 | 20 | 1710 | 2003 | 12 | M8x22 | 0.62 |
| 50 x 80 | 33.5 | 24 | 20 | 1777 | 2081 | 12 | M8x22 | 0.6 |
| 55 x 85 | 33.5 | 24 | 20 | 2267 | 2655 | 14 | M8x22 | 0.63 |
| 60 x 90 | 33.5 | 24 | 20 | 2460 | 2880 | 14 | M8x22 | 0.69 |
| 65 x 95 | 33.5 | 24 | 20 | 3030 | 3550 | 16 | M8x22 | 0.73 |
| 70 x 110 | 39.5 | 28 | 24 | 4581 | 5431 | 14 | M10x25 | 1.26 |
| 75 x 115 | 39.5 | 28 | 24 | 4887 | 5795 | 14 | M10x25 | 1.33 |
| 80 x 120 | 39.5 | 28 | 24 | 5192 | 6155 | 14 | M10x25 | 1.4 |
| 85 x 125 | 39.5 | 28 | 24 | 6281 | 7446 | 16 | M10x25 | 1.49 |
| 90 x 130 | 39.5 | 28 | 24 | 6627 | 7856 | 16 | M10x25 | 1.53 |
| 95 x 135 | 39.5 | 28 | 24 | 7843 | 7856 | 18 | M10x25 | 1.62 |
| 100 x 145 | 47 | 33 | 26 | 9591 | 11125 | 14 | M12x30 | 2.01 |
| 110 x 155 | 47 | 33 | 26 | 10488 | 12165 | 14 | M12x30 | 2.15 |
| 120 x 165 | 47 | 33 | 26 | 13004 | 20325 | 16 | M12x30 | 2.35 |
| 130 x 180 | 52 | 38 | 34 | 17522 | 20325 | 20 | M12x35 | 3.51 |
| 140 x 190 | 52 | 38 | 34 | 20661 | 23996 | 22 | M12x35 | 3.85 |
| 150 x 200 | 52 | 38 | 34 | 24046 | 27892 | 24 | M12x35 | 4.07 |
Why Choose Ringfeder’s RfN 7012 SST?
The RfN 7012 Locking Assemblies Stainless Steel features a slim design, ideal for space-limited applications. It compensates for small tolerance deviations and mounting errors, transmits large forces when multiple units are combined, and allows easy installation without temperature treatments. Its design minimizes contamination risk, offers adjustable transmission values via locking screw torque, and supports repeated tightening and releasing.
The RfN 7012 SST is widely used in various mechanical applications due to its reliability and versatility. Typical examples include chain wheels, levers, pulleys, and slip-on gear mechanisms, where precise torque transmission is essential. Additionally, it is well-suited for belt drums, running wheels, and cable sheaves, providing secure connections and efficient performance in demanding operating conditions.
Authorized Distributor for Ringfeder Germany in Vietnam
Choosing the Locking Assemblies RfN 7012 SST, you are investing in a solution that combines precision, durability, and cost-efficiency. Designed for industrial equipment and mechanical systems, this product ensures exceptional performance and reliability.
In Vietnam, Dai Hong Phat Corp is the authorized distributor for Ringfeder Germany's locking assemblies, providing access to genuine, high-quality products with professional support and expertise.
---------------------------------------------------------------------------------------
