Gear Couplings TNZ ZCAV / ZCBV

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Gear Couplings TNZ ZCAV / ZCBV

The Ringfeder TNZ ZCAV gear coupling is specifically designed for vertical installation, making it ideal for applications where space constraints or operational requirements demand a vertical orientation.

Similarly, the Ringfeder TNZ ZCBV coupling is also suitable for vertical installation, equipped with supporting plates to maintain the sleeves in their vertical alignment. TNZ ZCAV / ZCBV also have Vietnamese names: "khớp nối răng vỏ thép TNZ ZCAV / ZCBV".

- The coupling is suitable for use in temperatures up to +120 °C when special seals are used.

- It is available with both split sleeve (ZCA / ZCB) and single-piece sleeve (ZCH) options.

- The elastic O-ring can be replaced without moving the coupled machines.

- It supports bores up to 270 mm, torques up to TKn = 195,000 Nm / TKmax = 390,000 Nm, and speeds up to nmax = 6,000 rpm.

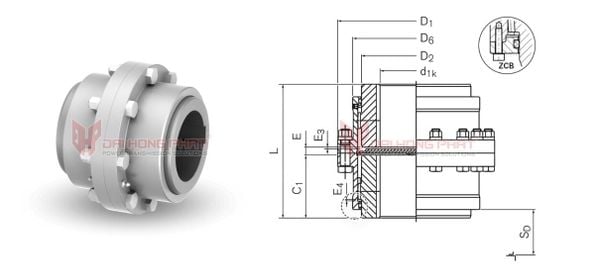

Product Specifications of Gear Couplings TNZ ZCAV / ZCBV

TNZ ZCAV / ZCBV Catalogue	TNZ ZCAV / ZCBV Installation Instruction

Identifier		Size Coupling	Torque [Nm]		nmax	Dimensions [mm]				Gw
ZCAV	ZCBV	Size Coupling	TKN	TKmax	1/min	d1k min - max	D1	D2	L	[kg]
XC2606	-----	69	1750	3500	6000	12 - 50	111	69	93	4.1
XC2608	-----	85	2750	5500	4600	18 - 60	152	85	108	8.8
XC2610	XC3610	107	5500	11000	4200	28 - 75	178	107	135	14.8
XC2613	XC3613	133	8500	17000	4000	40 - 95	213	133	164	25.8
XC2615	XC3615	152	13500	27000	3850	50 - 110	240	152	196	37.9
XC2617	XC3617	179	22000	44000	3700	60 - 130	280	179	225	60.2
XC2620	XC3620	209	35000	70000	3200	70 - 155	318	209	258	89.9
XC2623	XC3623	234	43000	86000	2900	85 - 170	346	234	293	117.9
XC2625	XC3625	254	68000	136000	2600	95 - 190	389	254	334	168.2
XC2627	XC3627	279	82000	164000	2300	110 - 210	425	279	386	221.8
XC2630	XC3630	305	150000	300000	2100	120 - 230	457	305	418	269.3
XC2635	XC3635	355	195000	390000	1800	130 - 270	527	355	488	421.7

Why Choose Ringfeder Gear Couplings TNZ ZCAV / ZCBV?

The TNZ ZCAV / ZCBV is a torsionally rigid gear coupling made of high-quality steel, featuring a very compact design that results in high-power density. It compensates for angular, radial, and axial shaft offset.

Ringfeder gear couplings TNZ ZCAV/ZCBV are widely used worldwide in all areas of heavy industry where extremely high torques must be transmitted from one shaft to another. Ringfeder geared couplings cover particularly heavy-duty applications, for example in direct drive systems of conveyors, mixers, mills or roller tables.
