The Advantages of Gear Couplings in Heavy-Duty Applications

1. Introduction to Gear Couplings

Gear couplings are critical components in industrial machinery, designed to transmit torque between two shafts that are not perfectly aligned. These mechanical devices provide a reliable connection, allowing for power transmission even in the most demanding conditions.

The gear coupling is made entirely from high-quality steel, ensuring durability and excellent performance in power transmission systems.

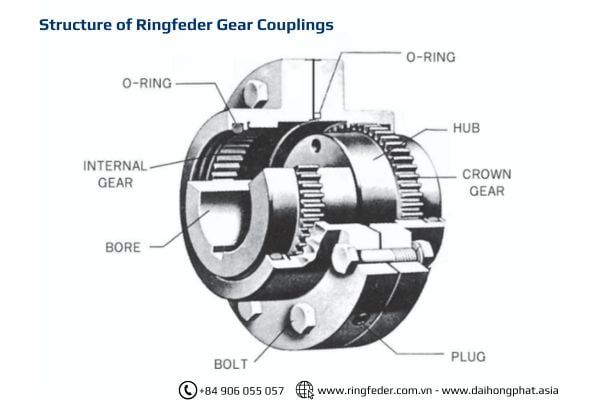

1.1. Structure of TNZ Ringfeder gear coupling

- Crown Gear (External Gear):
This gear is designed with a crown shape to enhance the coupling's ability to compensate for angular misalignment between two shafts. Its surface is typically hardened to increase wear resistance and extend service life.
- Internal Gear:
Fixed inside the coupling housing, this gear meshes with the crown gear to effectively transmit torque from one shaft to the other.
- Bore:
A precision-machined hole that allows the coupling to be mounted securely onto the drive shaft or driven equipment.

- O-Ring:
A rubber sealing ring that prevents lubricant leakage and protects internal components from dust, dirt, and other contaminants.
- Reamer Bolt:
This bolt helps align and hold the two halves of the coupling securely together, ensuring stable torque transmission.
- Hex Nut & Spring Washer:
These components enhance fastening strength and prevent loosening during operation due to vibration or load fluctuations.
- Lube Plugs:
Used to inject grease or oil into the coupling for lubrication, reducing friction and wear between the gear teeth.

1.2. How Gear Couplings Work

Gear couplings consist of two hubs with external teeth and two sleeves with internal teeth. These components mesh together to transmit torque from one shaft to another. The design allows for a degree of misalignment while maintaining high performance.

They work on the principle of gear engagement, which enables them to transmit torque at a constant velocity. The coupling can accommodate angular, parallel, and axial misalignments, making them suitable for harsh operating environments.

2. Key Features of TNZ Gear Couplings

- High Torque Capacity: Gear couplings can handle very high torque loads, making them ideal for heavy-duty applications.

- Gear couplings excel in this area due to their:

- Tightly meshed gear teeth

- High-grade alloy materials

- Optimized design for torque transfer.

- Misalignment Tolerance: They accommodate various types of misalignments without compromising performance.

- Durability: Made from hardened steel or similar materials, they are designed to withstand extreme conditions.

- Compact Design: Gear couplings offer high performance in a relatively small footprint.

3. TNZ ZCA Gear Couplings: The Role in Heavy-Duty Applications

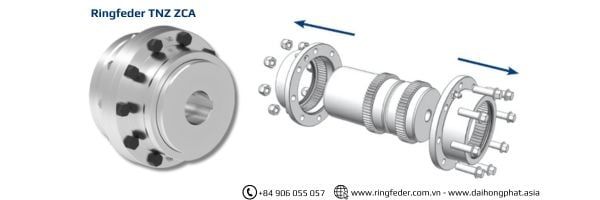

3.1. Technical Specifications Ringfeder TNZ ZCA

- The Ringfeder TNZ ZCA is a torsionally rigid gear coupling with slight backlash, consisting of two coupling halves connected via fitted bolts.

- The TNZ ZCB version differs in that it features a bolt-on O-ring carrier, which modifies the mounting sequence and simplifies installation, especially for large couplings.

- The coupling is suitable for operating temperatures of up to +120 °C when equipped with special seals.

- Available in both split sleeve versions (ZCA / ZCB) and a single-piece sleeve design (ZCH). The ZCA model is also offered in the ZCB configuration for added flexibility.

- Technical Capabilities:

• Maximum bore diameter: up to 270 mm

• Nominal torque (TKn): up to 195,000 Nm

• Maximum torque (TKmax): up to 390,000 Nm

• Maximum speed (nmax): up to 6,000 rpm

3.2. The Role of TNZ Ringfeder in Heavy-Duty Applications

In heavy-duty industries such as shipbuilding, petrochemical plants, and power generation, the need for reliable torque transmission is paramount. Gear couplings ensure that machinery can operate without interruption, minimizing downtime and maintenance costs.

Their robust construction and ability to manage shaft misalignments under stress make them ideal for:

• Large conveyor systems

• Crushers and mills

• Heavy-duty pumps

• Turbines and compressors

>>> See more “Gear Couplings TNZ: Solutions for Heavy Load Applications”

4. Maintenance and Longevity of Gear Couplings

Proper maintenance ensures the longevity and efficiency of gear couplings. Routine practices include:

• Regular lubrication

• Periodic inspection of gear teeth

• Checking for misalignment and wear

With correct maintenance, gear couplings can operate for years without significant degradation, thereby reducing total cost of ownership.
