Key Characteristics of the Gear Couplings TNZ ZCA / ZCB

Gear Couplings TNZ ZCA / TNZ ZCB with standard hubs have distinct features that cater to various installation needs. It also known as 'khớp nối răng vỏ thép TNZ ZCA / ZCB".

The Ringfeder TNZ ZCA coupling is a torsionally stiff gear coupling designed with some backlash and consists of two coupling halves connected by fitted bolts. Unlike the TNZ ZCA coupling, the Ringfeder TNZ ZCB is equipped with a bolt-on O-ring carrier which simplifies installation by altering the mounting sequence.

- To mount the TNZ ZCB coupling, unscrew the cover and place it on the shaft, mount the hub onto the shaft, slide the sleeve onto the hub, and fasten the O-ring carrier to the sleeve. This method of mounting is particularly advantageous for large couplings.

- The coupling can be used in temperatures up to +120 °C when special seals are employed.

- It comes in both split sleeve options (ZCA / ZCB) with the ZCA model range also available in the ZCB design, and single-piece sleeve options (ZCH).

- The elastic O-ring can be replaced without needing to move the connected machines.

- It supports bores up to 270 mm and can handle torques up to TKn = 195,000 Nm and TKmax = 390,000 Nm.

- Additionally, it can operate at speeds of up to nmax = 6,000 rpm.

Product Specifications of Gear Couplings TNZ ZCA / ZCB

TNZ ZCA / ZCB Catalogue	TNZ ZCA / ZCB Installation Instruction

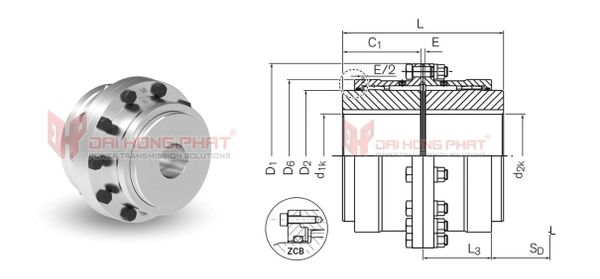

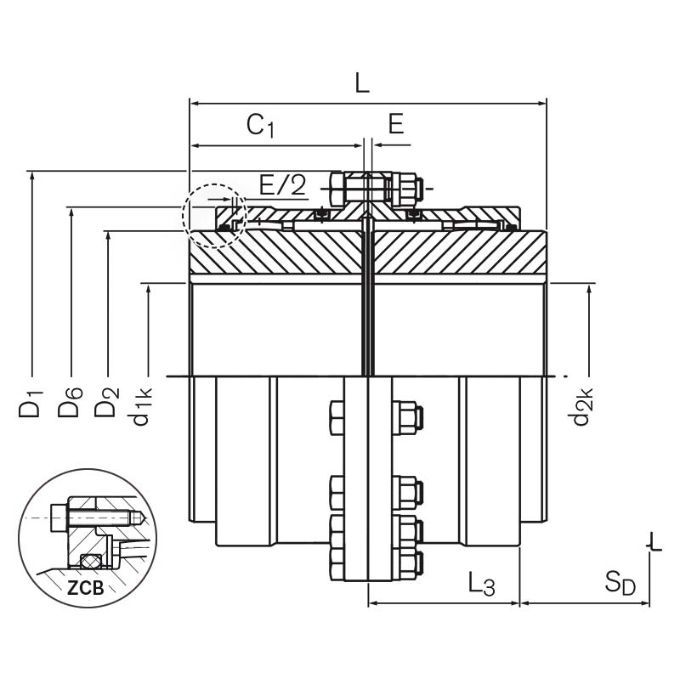

Identifier		Size Coupling	Torque [Nm]		nmax	Dimensions [mm]				Gw
ZCA	ZCB	Size Coupling	TKN	TKmax	1/min	d1k min-max	D1	D2	L	[kg]
XC2106	----	69	1750	3500	6000	12 - 50	111	69	89	4,1
XC2108	----	85	2750	5500	4600	18 - 60	152	85	103	8,7
XC2110	XC3110	107	5500	11000	4200	28 - 75	178	107	127	14,4
XC2113	XC3113	133	8500	17000	4000	40 - 95	213	133	157	25,6
XC2115	XC3115	152	13500	27000	3850	50 - 110	240	152	185	37,3
XC2117	XC3117	179	22000	44000	3700	60 - 130	280	178	216	58,9
XC2120	XC3120	209	35000	70000	3200	70 - 155	318	209	246	88,6
XC2123	XC3123	234	43000	86000	2900	85 - 170	346	234	278	116,1
XC2125	XC3125	254	68000	136000	2600	95 - 190	389	254	308	166
XC2127	XC3125	279	82000	164000	2300	110 - 210	425	279	358	219,2
XC2130	XC3130	305	150000	300000	2100	120 - 230	457	305	388	265,9
XC2135	XC3135	355	195000	390000	1800	130 - 270	527	355	450	415,8

Why Choose Ringfeder Gear Couplings TNZ ZCA / ZCB?

The TNZ ZCA / ZCB is a torsionally rigid gear coupling crafted from high-quality steel, ensuring superior durability and reliability. Its exceptionally compact design results in high-power density, making it highly efficient for demanding industrial applications. Additionally, it compensates for angular, radial, and axial shaft offset, providing excellent flexibility and alignment capabilities.

Widely utilized in heavy industries around the globe, Ringfeder gear couplings TNZ ZCA / ZCB are essential for transmitting extremely high torques between shafts. They excel in demanding applications such as direct drive systems for conveyors, mixers, mills, and roller tables.
