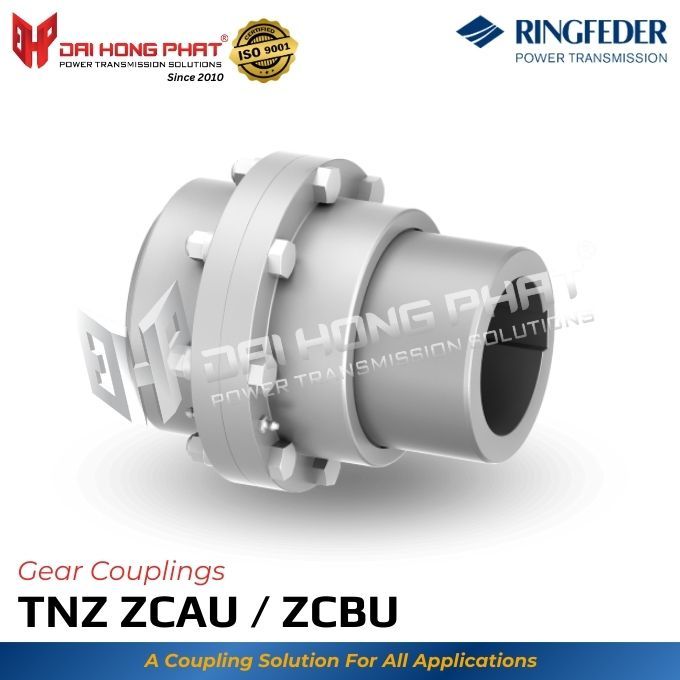

Gear Couplings TNZ ZCAU / ZCBU

Key Characteristics of the Gear Coup­lings TNZ ZCAU / ZCBU

Gear Couplings TNZ ZCAU / TNZ ZCBU feature a standard hub and an extended universal hub. It also known as 'khớp nối răng vỏ thép TNZ ZCAU / ZCBU".

The Ringfeder TNZ ZCAU coupling is equipped with an elongated hub, which can be adapted to meet plant requirements, setting it apart from the TNZ ZCA types. The Ringfeder TNZ ZCBU coupling, on the other hand, comes with an O-ring carrier that simplifies installation by altering the mounting sequence.

To install the coupling, unscrew the cover and place it on the shaft, mount the hub onto the shaft, slide the sleeve onto the hub, and fasten the O-ring carrier to the sleeve. This mounting method is particularly advantageous for large couplings. Similar to the ZCAU model, the ZCBU also has an elongated hub that can be adjusted to plant requirements.

- The coupling is suitable for use in temperatures up to +120 °C if special seals are used, making it versatile for high-temperature environments.

- It is available in both split sleeve (ZCA / ZCB) and single-piece sleeve (ZCH) designs, offering flexibility for different installation needs.

- The elastic O-ring can be replaced without having to move the coupled machines, simplifying maintenance.

- It supports bores up to 270 mm, accommodates torques up to TKn = 195,000 Nm and TKmax = 390,000 Nm, and can operate at speeds up to nmax = 6,000 rpm, making it suitable for high-performance applications.

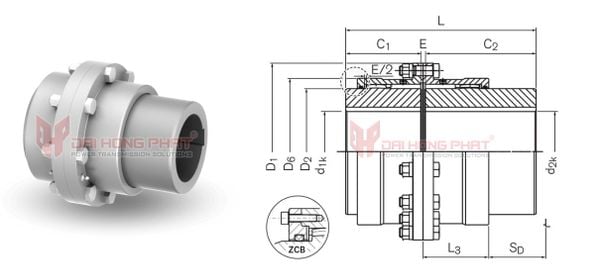

Product Specifications of Gear Coup­lings TNZ ZCAU / ZCBU

TNZ ZCAU / ZCBU Catalogue	TNZ ZCAU / ZCBU Installation Instruction

Why Choose Ringfeder Gear Coup­lings TNZ ZCAU / ZCBU?

The TNZ ZCAU / ZCBU is a torsionally rigid gear coupling made of high-quality steel, ensuring exceptional durability and performance. Its very compact design results in a high-power density, making it ideal for demanding industrial applications. Additionally, it compensates for angular, radial, and axial shaft offset, providing superior flexibility and alignment capabilities.

Ringfeder gear couplings TNZ ZCAU / ZCBU are extensively used worldwide in heavy industry for transmitting extremely high torques between shafts. These couplings are ideal for heavy-duty applications, including direct drive systems for conveyors, mixers, mills, and roller tables.
