Gear Couplings TNZ ZCAK / ZCBK

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Gear Couplings TNZ ZCAK / ZCBK

The double cardanic versions Ringfeder TNZ ZCAK and TNZ ZCBK are equipped with end float limitation to axially locate a shaft mounted on sleeve bearings. This ensures the rotor of an electric motor remains aligned within a desired tolerance range during acceleration, keeping it at its magnetic center.

However, this limitation reduces the ability to compensate for angular and radial shaft misalignments. Unlike the TNZ ZCAK with an integrated O-ring, the TNZ ZCBK features screwed-on, separate O-ring supports.

- Suitable for use in temperatures up to +120 °C if special seals are used.

- Available with split sleeve (ZCA / ZCB - ZCA model range also available in ZCB design) and single-piece sleeve (ZCH).

- Allowing the elastic O-ring to be replaced without the need to reposition the connected machinery, simplifying maintenance.

- The coupling supports bores up to 270 mm, making it suitable for various shaft sizes.

- The coupling can handle high torque values, up to TKn = 195,000 Nm and TKmax = 390,000 Nm, ensuring it can be used in demanding applications.

- The coupling supports speeds up to 6,000 RPM, providing high-performance capabilities for various applications.

Product Specifications of Gear Couplings TNZ ZCAK / ZCBK

TNZ ZCAK / ZCBK Catalogue	TNZ ZCAK / ZCBK Installation Instruction

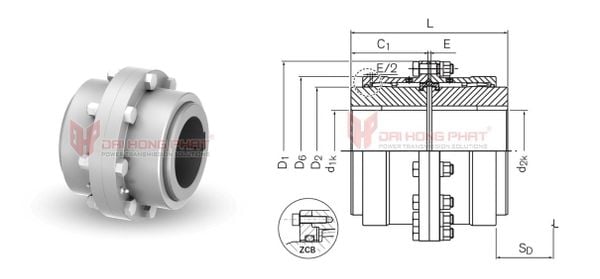

Identifier		Size Coupling	Torque [Nm]		nmax	Dimensions [mm]				Gw
ZCAK	ZCBK	Size Coupling	TKN	TKmax	1/min	d1k min - max	D1	D2	L	[kg]
XC2706	-----	69	1750	3500	6000	12 - 50	111	69	89	4
XC2708	-----	85	2750	5500	4600	18 - 60	152	85	103	8.4
XC2710	XC3710	107	5500	11000	4200	28 - 75	178	107	127	14.1
XC2713	XC3713	133	8500	17000	4000	40 - 95	213	133	157	24.8
XC2715	XC3715	152	13500	27000	3850	50 - 110	240	152	185	36.4
XC2717	XC3717	179	22000	44000	3700	60 - 130	280	179	216	58
XC2720	XC3720	209	35000	70000	3200	70 - 155	318	209	245	87
XC2723	XC3723	234	43000	86000	2900	85 - 170	346	234	278	113.7
XC2725	XC3725	254	68000	136000	2600	95 - 190	389	254	308	163.1
XC2727	XC3727	279	82000	164000	2300	110 - 210	425	279	358	215.4
XC2730	XC3730	305	150000	300000	2100	120 - 230	457	305	388	261.5
XC2735	XC3735	355	195000	390000	1800	130 - 270	527	355	450	409.2

Why Choose Ringfeder Gear Couplings TNZ ZCAK / ZCBK?

The coupling is a torsionally rigid gear coupling made of high-quality steel, ensuring durability and reliability. Its very compact design results in high-power density, making it efficient for various applications. Additionally, it compensates for angular, radial, and axial shaft offset, providing flexibility in alignment.

Ringfeder gear couplings TNZ ZCAK / ZCBK are widely used worldwide in all areas of heavy industry where extremely high torques must be transmitted from one shaft to another. Ringfeder geared couplings cover particularly heavy-duty applications, for example in direct drive systems of conveyors, mixers, mills or roller tables.
