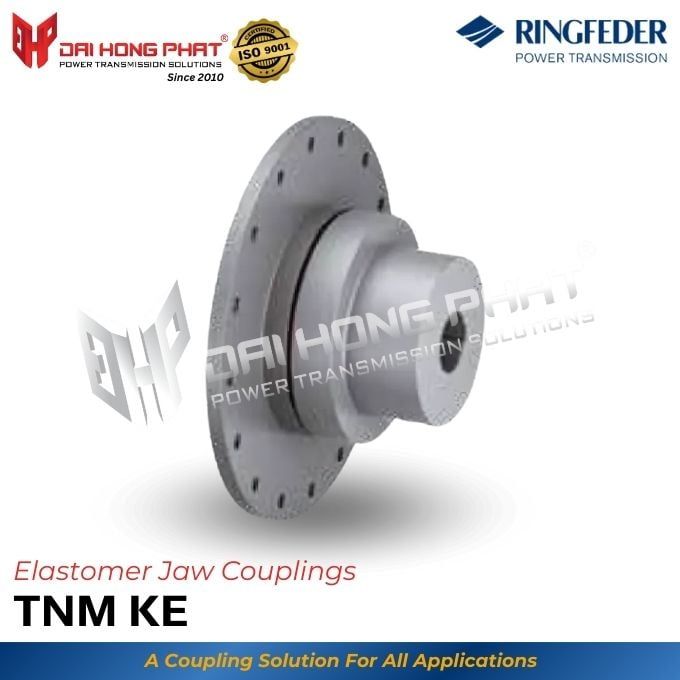

Elastomer Jaw Couplings TNM KE
SKU:WN1016-254Key Characteristics of the Elastomer Jaw Couplings TNM KE
Ringfeder Elastomer Jaw Couplings TNM KE are rotationally resilient, fail-safe and allow for compensation of shaft misalignment. Widely used they compensate for shaft misalignment in all directions and allow for the transfer of significant torsional vibrations from the operating range of the machine to areas where they do not adversely affect the drive system. It also known as "khớp nối TNM KE".
- The product is available in 5 sizes, providing flexibility for a range of applications. TNM KE's Elastomer Rings come in 2 material hardnesses: Pb72 and Pb82
- The bore diameter spans from 75 to 120 mm, allowing it to accommodate different shaft sizes.
- The outer diameter ranges from 168 to 265 mm, ensuring compatibility with a variety of equipment configurations.
- The overall length varies between 127.5 and 195.5 mm, making it suitable for systems with different spatial constraints.
- Additionally, the maximum rotational speed ranges from 2500 to 4000 rpm, catering to high-performance and demanding applications.
Product Specifications of TNM KG Elastomer Jaw Couplings
| TNM KE Catalogue | TNM KE Installation Instruction |
 | |

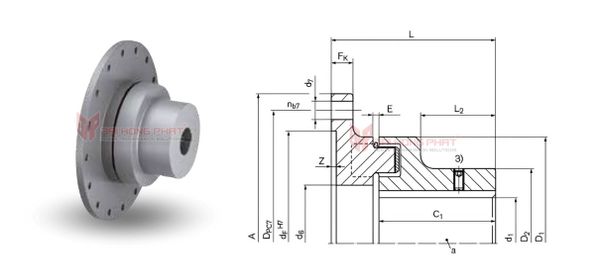

| Identifier | Size Coupling | TKN [Nm] | nmax | Dimensions [mm] | Gwub | ||||
| TNM KE | Pb72 | Pb82 | 1/min | d1Kmax | D1 | D2 | L | [kg] | |
| WN1016-254 | TNM KE - 168 | 630 | 980 | 4000 | 75 | 168 | 124 | 127.5 | 14.5 |
| WN1019-290 | TNM KE - 194 | 1050 | 1650 | 3500 | 85 | 194 | 140 | 141.5 | 21.4 |
| WN1021-334 | TNM KE - 214 | 1500 | 2400 | 3000 | 95 | 214 | 157 | 156 | 29.5 |
| WN1024-390 | TNM KE - 240 | 2400 | 3700 | 2750 | 110 | 240 | 179 | 169 | 42.9 |
| WN1026-470 | TNM KE - 265 | 3700 | 5800 | 2500 | 120 | 265 | 198 | 195.5 | 62.5 |
Why Choose Ringfeder Elastomer Jaw Couplings TNM KE?
TNM KE can be used in the temperature range from -30°C to +100°C and in all mounting positions and rotation directions. The coupling has torque transmitted through pressure-resistant elastomers made of high-quality Perbunan material, bonded together to form a shock-absorbing and vibration-damping ring that is oil-resistant and electrically conductive.
Ringfeder TNM Nor-Mex KE (TNM KE) couplings are used in many common applications: Construction, cement plants, steel plants, material handling, industrial pumps, air compressors, cranes, cable reels, in thermal power plants, hydropower plants, etc.
Dai Hong Phat Corp. is a leading specialist in supplying all Ringfeder Flexible Coupling TNM LE products throughout Vietnam.
We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.
With 15 years of industry experience, Dai Hong Phat Corp is dedicated to providing authentic, high-quality Ringfeder TNM KE couplings at competitive prices. Additionally, we maintain a substantial inventory to ensure the availability of goods in large quantities.
---------------------------------------------------------------------------------------
Contact Dai Hong Phat Corp today to learn more!!
