Elastomer Jaw Couplings GWE 5117

- 5 Different Sizes: Offers a variety of sizes to suit different applications, ensuring flexibility and adaptability.

- Bore Diameter (d): 4-35 mm (0.157-1.378 inch), accommodates a wide range of shaft sizes, enhancing versatility for different mechanical systems.

- Outer Diameter (D): 24.5-64.5 mm, suitable for diverse hub sizes, ensuring compatibility with multiple applications.

- Overall Length (L): 42-82 mm, provides various length options to meet specific requirements, contributing to stable and secure connections.

- Rotational Speed (nmax): 6,000-15,000 1/min, capable of handling high rotational speeds, making it ideal for applications that require rapid motion.

- Torque (T): 3-160 Nm, capable of handling torque values from low to moderately high, making it suitable for various industrial applications requiring precise force transmission.

>>> Learn more about Application of Elastomer Jaw Couplings

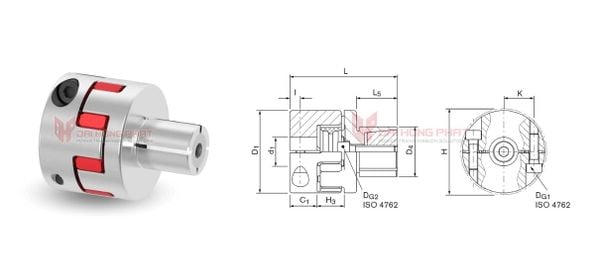

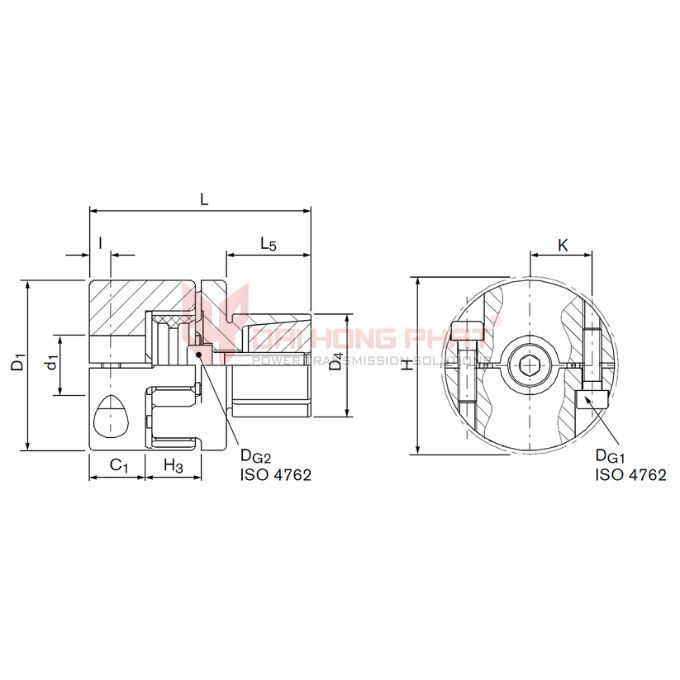

GWE 5117 servo coupling product specifications

GWE 5117 Catalogue	GWE 5117 Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings GWE 5117?

The new Ringfeder GWE 5117 features aluminum clamping hubs, an expanding mandrel, and an inner cone made of steel for friction-locked power transmission on hollow shafts.

It stands out due to its low mass, superior concentricity, vibration and shock-damping power transmission, and highly precise, backlash-free torque transmission from 3 to 160 Nm.

Additionally, it offers excellent availability in five sizes, wide bore diameter range, and easy application in confined spaces.

Dai Hong Phat Corp is a leading specialist in providing all Ringfeder Servo Coupling GWE 5117 products across Vietnam.

Dai Hong Phat Corp ensures that the couplings customers are interested in are 100% genuine, of new quality, with certificates and clear origin.

With 15 years of experience in the industry, Dai Hong Phat Corp is dedicated to providing authentic, high-quality Ringfeder GWE 5117 servo couplings (flexible couplings) at the most competitive prices. Moreover, we maintain a substantial inventory, ensuring that goods are available in large quantities.

---------------------------------------------------------------------------------------
