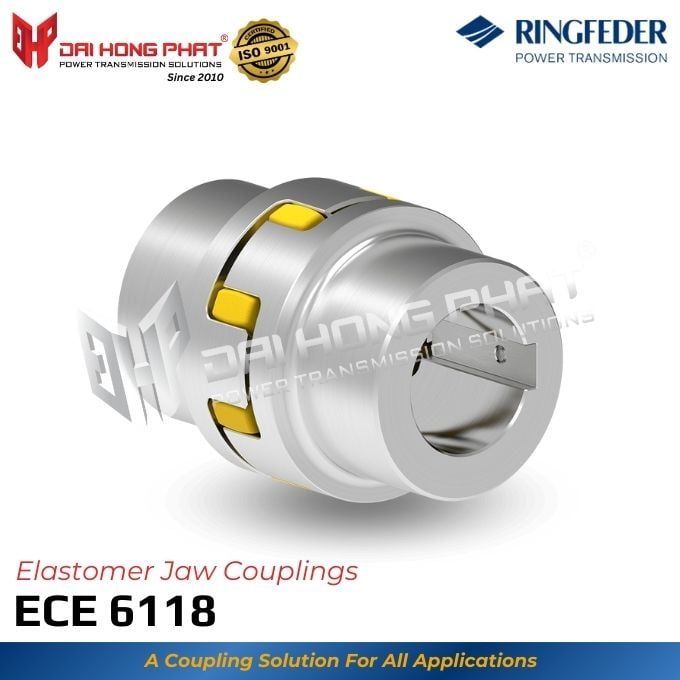

Elastomer Jaw Couplings ECE 6118
Key Characteristics of the Elastomer Jaw Couplings ECE 6118
Ringfeder ECE 6118 Aluminum Housing Couplings, also known as Servo-Inert Couplings ECE 6118, are designed for high performance and durability. Here are the key features:
- The housing is made of robust steel, ensuring longevity and strength in demanding applications.
- The elastomer ring is crafted from polyamide, providing excellent flexibility and shock absorption.
- Available in sizes 19-55 with a hardness rating of 98 Sh-A and sizes 65-90 with a hardness rating of 95 Sh-A, commonly referred to as the "Red Spider".
- Conform to precise standards of "g6" and "h7", ensuring a tight fit and minimal play for smooth and efficient operation.
These features make Ringfeder ECE 6118 Aluminum Housing Couplings a reliable choice for a wide range of industrial applications, providing consistent performance in even the most challenging environments.
Learn more about: Application of Elastomer Jaw Couplings

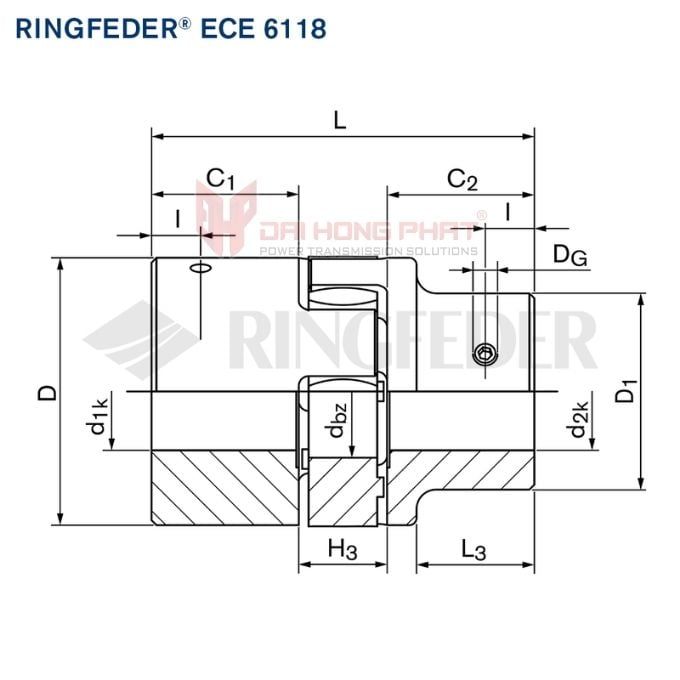

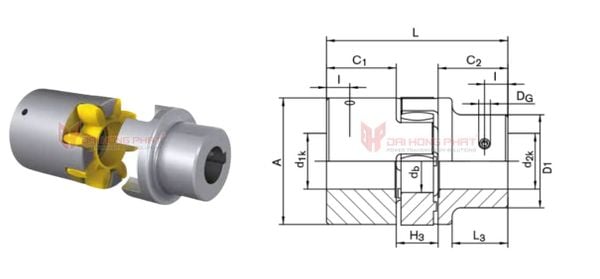

Product Specifications of Elastomer Jaw Couplings ECE 6118
| ECE 6118 Catalogue | ECE 6118 Installation Instruction |
 | |
| Coupling Model | Shore | nmax | TN | TW | Tmax |
| 1/min | Nm | ||||
| ECE 6118-19 | 64 Sh D-H | 19000 | 21 | 5.5 | 42 |
| 92 Sh A | 10 | 2.6 | 20 | ||
| 98 Sh A | 17 | 4.4 | 34 | ||
| ECE 6118-24 | 64 Sh D-H | 14000 | 75 | 19.5 | 150 |
| 92 Sh A | 35 | 9.1 | 70 | ||
| 98 Sh A | 60 | 16 | 120 | ||
| ECE 6118-28 | 64 Sh D-H | 11800 | 200 | 52 | 400 |
| 92 Sh A | 95 | 25 | 190 | ||
| 98 Sh A | 160 | 42 | 320 | ||
| ECE 6118-38 | 64 Sh D-H | 9500 | 405 | 105 | 810 |
| 92 Sh A | 190 | 49 | 380 | ||
| 98 Sh A | 325 | 85 | 650 | ||
| ECE 6118-42 | 64 Sh D | 8000 | 560 | 146 | 1120 |
| 92 Sh A | 265 | 69 | 530 | ||
| 98 Sh A | 450 | 117 | 900 | ||
| ECE 6118-48 | 64 Sh D | 7100 | 655 | 170 | 1310 |
| 92 Sh A | 310 | 81 | 620 | ||
| 98 Sh A | 525 | 137 | 1050 | ||
| ECE 6118-55 | 64 Sh D | 6300 | 825 | 215 | 1650 |
| 92 Sh A | 410 | 107 | 820 | ||
| 98 Sh A | 685 | 178 | 1370 | ||
| ECE 6118-65 | 64 Sh D | 5600 | 1175 | 306 | 2350 |
| 95 Sh A | 940 | 244 | 1880 | ||
| ECE 6118-75 | 64 Sh D | 4750 | 2400 | 624 | 4800 |
| 95 Sh A | 1920 | 499 | 3840 | ||
Why Choose Ringfeder Elastomer Jaw Couplings ECE 6118?
The ECE 6118 coupling is engineered to perform efficiently in high-temperature environments, operating within a range of minus 20 to 120 degrees Celsius. This extensive temperature range ensures that the coupling maintains its performance and reliability, even in demanding conditions, offering consistent and effective operation across various industries. Its robust construction and adaptability make it a trusted choice for professionals needing dependable equipment in high-temperature applications.
ECOLOC/RINGFEDER's ECE 6118 is primarily used in a variety of pump applications, such as water pumps, hydraulic pumps, and vacuum pumps. Additionally, it is commonly found in air compressors.
Dai Hong Phat Corp is the authorized representative of Ringfeder Germany in Vietnam
Serving as the premier importer and distributor of Ringfeder coupling products, Dai Hong Phat Corp delivers 100% genuine items across Vietnam and Southeast Asia.
With over 10 years of respected service, Dai Hong Phat Corp guarantees that customers obtain high-quality and authentic Elastomer Jaw Couplings ECE 6118 at the most competitive prices available.
---------------------------------------------------------------------------------------
Contact Dai Hong Phat Corp today to learn more!!
