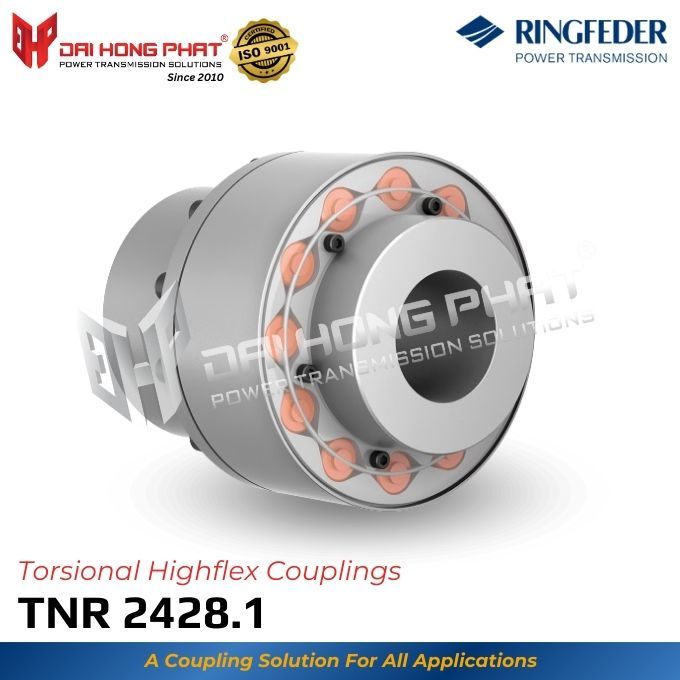

Torsional Highflex Couplings TNR 2428.1
Key Characteristics of the Torsional Highflex Couplings TNR 2428.1
The single-row torsional highflex Ringfeder TNR 2428.1 coupling is designed for efficient shaft-to-shaft connections, providing robust and reliable transmission of torque. It is specifically engineered to offer high torsional flexibility, accommodating varying degrees of misalignment and mechanical stresses.
A key feature of this coupling is the X1 design, which allows for the easy replacement of the elastic elements without requiring any axial movement of the coupled machines. It also known as "khớp nối linh hoạt TNR 2428.1".
- The dynamic stiffness of these couplings ranges from elastic to highly elastic, providing versatile transmission capabilities suitable for various applications.
- The torque capacity of the couplings spans from 144 Nm to 9600 Nm, making them capable of handling both low and high-torque requirements.
- The operational speed of the couplings ranges from 1200 rpm to 4750 rpm, allowing them to perform effectively in both low and high-speed applications.
- Additionally, these couplings are designed to operate within a broad temperature range of -50°C to +230°C.
Product Specifications of Torsional Highflex Couplings TNR 2428.1
| TNR 2428.1 Catalogue | TNR 2428.1 Installation Instruction |
 | |

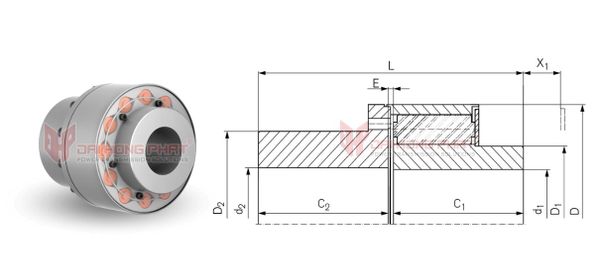

| Size Coupling | Dimensions [mm] | Gwub | |||||
| d1f max | d2f max | D | D1 | D2 | L | [kg] | |
| TNR 2428.1 - 120,1 | 50 | 55 | 120 | 73 | 85 | 134 | 6,7 |
| TNR 2428.1 - 160,1 | 70 | 75 | 160 | 100 | 115 | 184 | 16,3 |
| TNR 2428.1 - 200,1 | 90 | 105 | 200 | 129 | 155 | 235 | 34,9 |
| TNR 2428.1 - 260,1 | 115 | 130 | 260 | 165 | 195 | 286 | 69,7 |
| TNR 2428.1 - 320,1 | 145 | 165 | 320 | 210 | 245 | 357 | 137 |
| TNR 2428.1 - 400,1 | 185 | 215 | 400 | 275 | 305 | 468 | 278 |
| TNR 2428.1 - 500,1 | 230 | 250 | 500 | 335 | 350 | 610 | 527 |
| TNR 2428.1 - 640,1 | 300 | 320 | 640 | 430 | 450 | 775 | 1088 |
Why Choose Ringfeder Torsional Highflex Couplings TNR 2428.1?
Optimized for internal combustion engines, the Ringfeder TNR coupling addresses the dynamic disturbances caused by periodic excitation and a large speed range. By deliberately adjusting the stiffness, the coupling effectively shifts unavoidable resonances, ensuring smooth and dependable operation in challenging conditions.
Primarily designed and optimized for internal combustion engines, the torsional highflex coupling TNR 2428.1 is mounted between the engine and the transfer case. It is well-suited for heavy machinery, including excavators, cranes, crushers, and wheel loaders. This coupling offers superior durability and efficiency, ensuring seamless operation in tough industrial environments.
