Torsional Highflex Couplings TNR 2425.1
Key Characteristics of the Torsional Highflex Couplings TNR 2425.1
The Torsional Highflex Couplings TNR 2425.1 by RINGFEDER® feature a single-row torsional highflex design, specifically tailored for flange-shaft connections and taper lock bushing systems. It also known as "khớp nối linh hoạt TNR 2425.1".
These couplings adhere to flange dimensions as specified by SAE J 620 d. A notable design feature is the X1, which allows for the easy replacement of elastic elements without necessitating axial movement of the coupled machines. This facilitates efficient maintenance and ensures continuous operation with minimal downtime.
- The dynamic stiffness of these couplings ranges from elastic to highly elastic, providing versatile transmission capabilities suitable for various applications.
- These couplings can handle torque values from 144 Nm to 9600 Nm, making them suitable for both low and high-torque requirements.
- The operational speed of these couplings spans from 1200 rpm to 4750 rpm, ensuring they can function effectively in both low and high-speed applications.
- Additionally, these couplings are designed to operate within a temperature range of -50°C to +230°C.
Overall, the combination of dynamic stiffness, broad torque and speed ranges, and extensive temperature tolerance makes these couplings a reliable and flexible solution for numerous industrial applications.
Product Specifications of Torsional Highflex Couplings TNR 2425.1

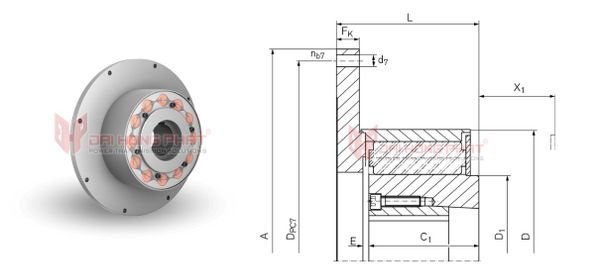

| TNR 2425.1 Catalogue | TNR 2425.1 Installation Instruction |
 | |
| Size Coupling | Taper bushing | SAE size | Dimensions [mm] | Gwub | ||||
| A | L | DPC7 | D | D1 | [kg] | |||
| 120.1 – 06.5 | 1615 | 6,5 | 215,9 | 71 | 200 | 120 | 73 | 2,8 |
| 120.1 – 07.5 | 1615 | 7,5 | 241,3 | 71 | 222,3 | 120 | 73 | 3,1 |
| 120.1 – 08.0 | 1615 | 8 | 263,5 | 71 | 244,5 | 120 | 73 | 3,4 |
| 120.1 – 10.0 | 1615 | 10 | 314,3 | 71 | 295,3 | 120 | 73 | 4,1 |
| 160.1 – 06.5 | 2012 | 6,5 | 215,9 | 84 | 200 | 160 | 100 | 5,3 |
| 160.1 – 07.5 | 2012 | 7,5 | 241,3 | 84 | 222,3 | 160 | 100 | 5,6 |
| 160.1 – 08.0 | 2012 | 8 | 263,5 | 84 | 244,5 | 160 | 100 | 5,9 |
| 160.1 – 10.0 | 2012 | 10 | 314,3 | 84 | 295,3 | 160 | 100 | 6,8 |
| 200.1 – 07.5 | 2517 | 7,5 | 222,3 | 104 | 213,3 | 200 | 129 | 10,2 |
| 200.1 – 08.0 | 2517 | 8 | 263,5 | 104 | 244,5 | 200 | 129 | 10,6 |
| 200.1 – 10.0 | 2517 | 10 | 314,3 | 104 | 295,3 | 200 | 129 | 11,6 |
| 200.1 – 11.5 | 2517 | 11,5 | 352,4 | 104 | 333,7 | 200 | 129 | 12,6 |
| 260.1 – 10.0 | 3535 | 10 | 314,3 | 132 | 438,2 | 260 | 165 | 20,3 |
| 260.1 – 11.5 | 3535 | 11,5 | 352,4 | 132 | 489 | 260 | 165 | 21,5 |
| 260.1 – 14.0 | 3535 | 14 | 466,7 | 132 | 438,2 | 260 | 165 | 25,6 |
| 260.1 – 16.0 | 3535 | 16 | 517,5 | 132 | 489 | 260 | 165 | 28 |
| 320.1 – 14.0 | 4040 | 14 | 466,7 | 162 | 542,9 | 320 | 208 | 44,6 |
| ... | ... | ... | ... | ... | ... | ... | .... | ... |
Why Choose Ringfeder Torsional Highflex Couplings TNR 2428.1?
The coupling allows flexible adjustment of the stiffness of the rubber ring for smoother starting and vibration-optimized operation of the entire drive system. The stiffness of the coupling and the rubber damping are adapted to the respective drive conditions.
The Ringfeder TNR 2425.1 is specially designed and optimized for use primarily in internal combustion engines. The Ringfeder TNR 2425.1 is mounted between the engine and the transmission or as a modular coupling for construction machines such as excavators, cranes, crushers or wheel loaders.
