Key Characteristics of the Steel Disc Couplings TND XDX

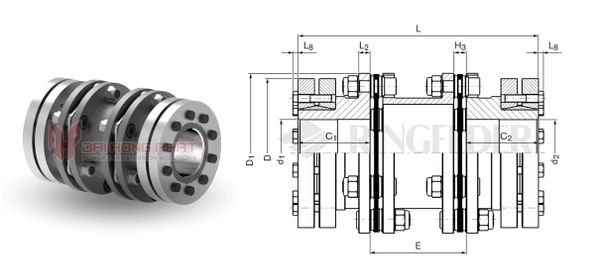

The Ringfeder TND XDX is a torsionally stiff, backlash-free steel disc coupling, featuring two hubs X designed to accommodate shrink discs from the Ringfeder RfN 4061 series, and a spacer D available in standardized or custom lengths. Each disc pack is securely connected to the spacer and one hub using high-strength screws, forming a double-cardanic system. TND XDX also known as "khớp nối đĩa đàn hồi TND XDX".

- The coupling is available in 7 sizes, offering a range of options to suit various applications.

- The bore diameter spans from 38 to 160 mm, accommodating different shaft sizes.

- The maximum outer diameter ranges from 116 to 345 mm, ensuring compatibility with various spatial constraints.

- The hub distance varies between 100 and 300 mm, providing flexibility in installation.

- The overall length of the coupling ranges from 210 to 700 mm, making it adaptable to different system requirements.

- It operates at a maximum rotational speed of 2,100 to 3,600 RPM, ensuring high-performance capabilities.

- The coupling can handle torque values from 750 to 44,000 Nm (553.17 to 32,452.73 ft·lb), making it suitable for a wide range of torque transmission needs.

Product Specifications of Steel Disc Couplings TND XDX

TND XDX Catalogue	TND XDX Installation Instruction

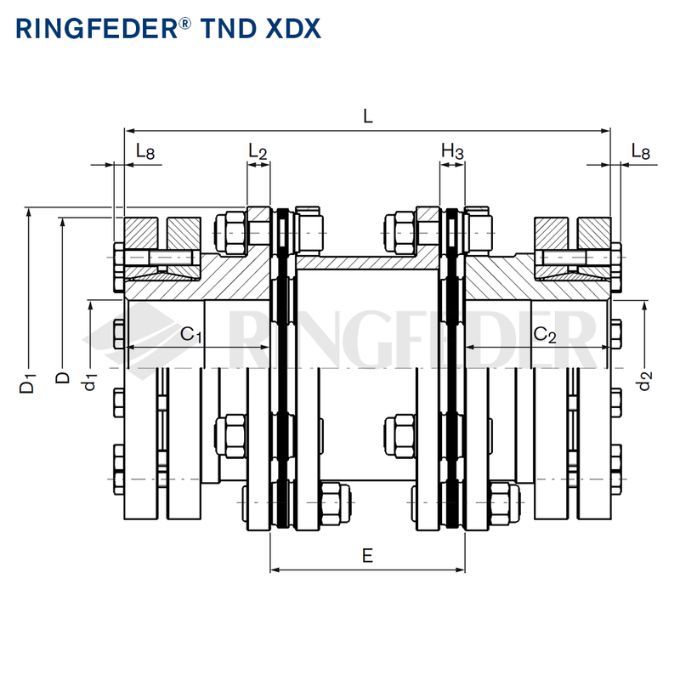

Coupling Model	T_KNHD	T_KNHT	n_max	Dimensions [mm]					Gw
	Nm		1/min	d₁;d_{2 min}	d₁;d_2 max	C₁/ C₂	D₁	L	[kg]
TND XDX - 82	750	1050	3600	38	60	55	116	210	1.991
								250	2.289
								290	2.586
TND XDX - 98	1350	1750	3600	50	70	60	140.5	220	3.188
								260	3.627
								300	4.066
TND XDX - 118	2400	3000	3600	50	75	75	166.5	250	4.874
								290	5.574
								330	6.275
TND XDX - 141	4000	5200	3400	65	95	90	198.5	320	7.944
								360	8.718
TND XDX - 169	6500	8500	3000	65	105	125	238	390	14.179
								430	15.757
								500	18.52
TND XDX - 205	21000	26000	2500	95	145	160	295	520	32.689
								570	35.489
TND XDX - 254	36000	44000	2100	94	160	200	345	624	54.42
								650	56.404
								700	60.22

Why Choose Ringfeder Steel Disc Couplings TND XDX?

Steel disc couplings Ringfeder TND XDX type are particularly convincing due to their completely backlash- and maintenance-free design, highly effective compensation of angular, axial, and radial shaft misalignment, torsional rigidity with high torsional stiffness, low restoring forces due to the optimum disc pack design, and the ability to bridge large shaft distances with spacers in various standard and customizable lengths.

The TND XDX coupling is primarily used in pumps, fans, compressors, generator and turbine drives, axial and radial blowers, paper and printing machines, mixers and stirrers, extruders, lifting and traversing gears, marine drives, and water screw drives.
