Steel Disc Coup­lings TND VDV

Key Characteristics of the Steel Disc Coup­lings TND VDV

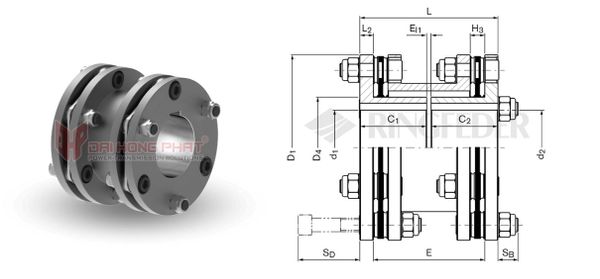

The Ringfeder TND VDV is a torsionally stiff, backlash-free steel disc coupling that includes two inverted hubs V connected by a spacer D of standardized length. High-strength screws are used to connect one disc pack to the spacer and one hub each, achieving the function of a double-cardanic system. It also known as "khớp nối đĩa đàn hồi TND VDV".

- TND VDV is available in 9 sizes, offering a wide range of options for different applications.

- The maximum bore diameter ranges from 25 to 120 mm (0.984 to 4.724 inches), accommodating various shaft sizes.

- The maximum outer diameter spans from 70.5 to 345 mm (2.776 to 13.583 inches), ensuring compatibility with different spatial constraints.

- The hub distance varies between 60 and 300 mm (2.362 to 11.811 inches), providing flexibility in installation.

- The overall length of the coupling ranges from 70 to 352 mm (2.756 to 13.858 inches), making it adaptable to different system requirements.

- It operates at maximum rotational speeds between 2,500 and 12,200 RPM, ensuring high-performance capabilities.

- The coupling can handle torque values from 170 to 44,000 Nm (125.36 to 32,452.73 ft·lb), making it suitable for a wide range of torque transmission needs.

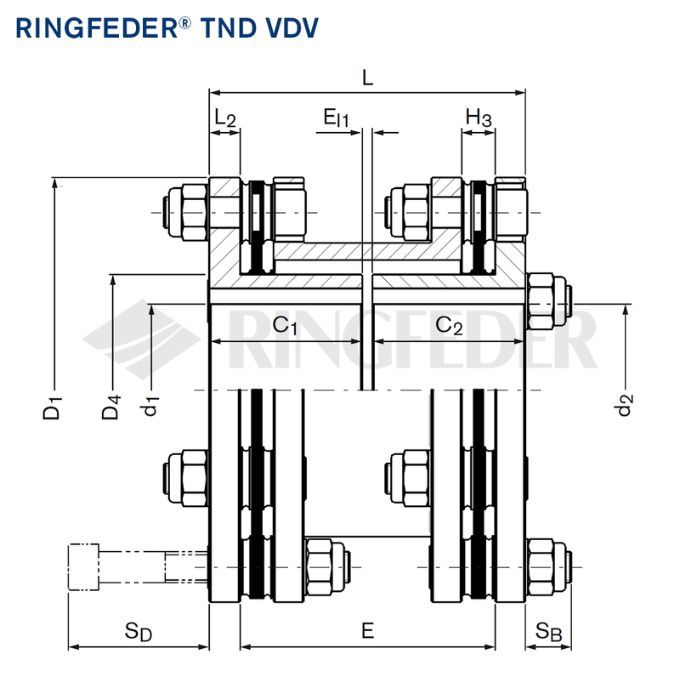

Product Specifications of Steel Disc Coup­lings TND VDV

TND VDV Catalogue	TND VDV Installation Instruction

Why Choose Ringfeder Steel Disc Coup­lings TND VDV?

Steel disc couplings Ringfeder TND VDV type are particularly convincing due to their completely backlash-free and maintenance-free design, highly effective compensation for angular, axial, and radial shaft misalignment, torsional rigidity with high torsional stiffness, low restoring forces in case of shaft misalignment thanks to the optimum disc pack design, and the ability to bridge large shaft distances with spacers in various standard lengths.

The TND VDV coupling is primarily used in pumps, fans, compressors, generator and turbine drives, axial and radial blowers, paper and printing machines, mixers and stirrers, extruders, lifting and traversing gears, marine drives, and water screw drives.
