Key Characteristics of the Steel Disc Couplings TND HSH

Steel Disc Couplings TND HSH are designed with standard hubs and a single-jointed configuration, without a spacer, offering a shaft-hub connection through a keyway according to DIN 6885-1. It also known as "khớp nối đĩa đàn hồi TND HSH".

The Ringfeder TND HSH is a torsionally stiff, backlash-free steel disc coupling made up of two standard hubs (H) and a disc pack (S), which are alternately connected to the hubs using high-strength screws.

- TND HSH is available in 11 sizes, with a maximum bore diameter ranging from 32 to 215 mm (1.259 to 8.465 inches), and a maximum outer diameter ranging from 70.5 to 510 mm (2.776 to 20.078 inches).

- The hub distance varies from 7.5 to 47 mm (0.295 to 1.850 inches), and the overall length spans from 86.5 to 527 mm (3.406 to 20.748 inches).

- The couplings can operate at rotational speeds (nmax) between 1,700 and 12,200 revolutions per minute (rpm)

- They are capable of transmitting torque values (TKN) ranging from 170 to 130,000 Nm (125.36 to 95,833.07 ft·lb).

These specifications make the TND HSH couplings highly versatile, suitable for various industrial applications where reliable torque transmission and performance are crucial.

Product Specifications of Steel Disc Couplings TND HSH

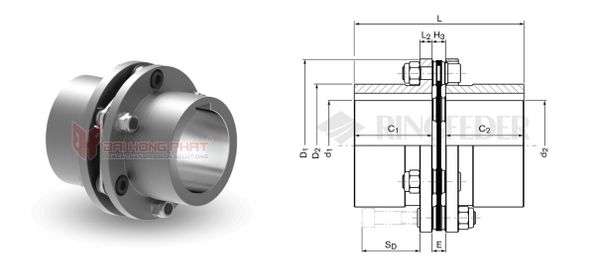

TND HSH Catalogue	TND HSH Installation Instruction

Coupling Model	T_KNHD	T_KNHT	n_max	Dimensions [mm]					Gw
Coupling Model	Nm		1/min	d_1k; d_2kmax	C₁/ C₂	E	D₁	L	[kg]
TND HSH - 47	170	230	12200	32	39,5	7,5	70,5	86,5	1,3
TND HSH - 63	320	420	9900	42	45	9	88	99	2,6
TND HSH - 82	750	1050	7500	55	55	10,5	116	120,5	5,6
TND HSH - 98	1350	1750	6200	65	60	12	140,5	132	8,8
TND HSH - 118	2400	3000	5250	85	75	13	166,5	163	15,4
TND HSH - 141	4000	5200	4400	95	90	15	198,5	195	25,9
TND HSH - 169	6500	8500	3650	115	125	21	238	271	50
TND HSH - 205	21000	26000	2950	140	160	28	295	348	97,8
TND HSH - 254	36000	44000	2500	175	200	32,5	345	432,5	171,2
TND HSH - 262	74000	---	2050	180	210	34	420	454	223,2
TND HSH - 316	130000	---	1700	215	240	47	510	527	384,4

Why Choose Ringfeder Steel Disc Couplings TND HSH?

Steel disc couplings of the Ringfeder TND HSH are highly effective, offering features such as being completely backlash- and maintenance-free, compensating angular and axial shaft misalignment, and providing torsional rigidity with high stiffness.

Additionally, they minimize restoring forces during shaft misalignment thanks to an optimized disc pack design and allow for easy implementation of a double-cardanic setup using two couplings and a spacer, while also meeting ATEX standards for fire and explosion prevention.

The TND HSH coupling is commonly used in various applications, including pumps, fans, compressors, generator and turbine drives, as well as axial and radial blowers. It is also well-suited for paper and printing machines, mixers, stirrers, extruders, lifting and traversing gears, and marine and water screw drives.
