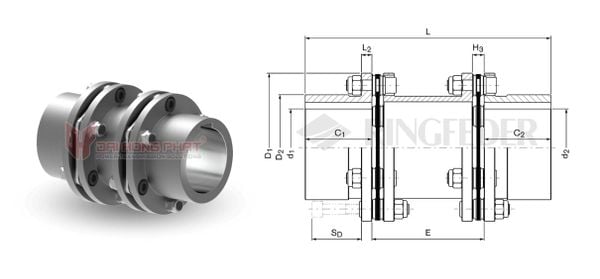

Key Characteristics of the Steel Disc Couplings TND HDH

The Steel Disc Couplings TND HDH are designed with standard hubs and a double-jointed configuration without a spacer, featuring shaft-hub connection by keyway according to DIN 6885-1. It also known as "khớp nối đĩa đàn hồi TND HDH".

The Ringfeder TND HDH is a torsionally stiff and backlash-free steel disc coupling, designed with two standard hubs (H) and a spacer (D) available in either standardized or custom lengths. High-strength screws are used to connect each disc pack to the spacer and one hub, creating a highly efficient double-cardanic system.

- They are available in 11 sizes, offering versatility for various applications.

- The maximum bore diameter ranges from 32 to 215 mm (1.259 to 8.465 inches), accommodating different shaft sizes.

- The maximum outer diameter spans from 70.5 to 510 mm (2.776 to 20.078 inches), ensuring compatibility with various spatial constraints.

- The hub distance varies between 60 and 350 mm (2.362 to 13.779 inches), providing flexibility in installation.

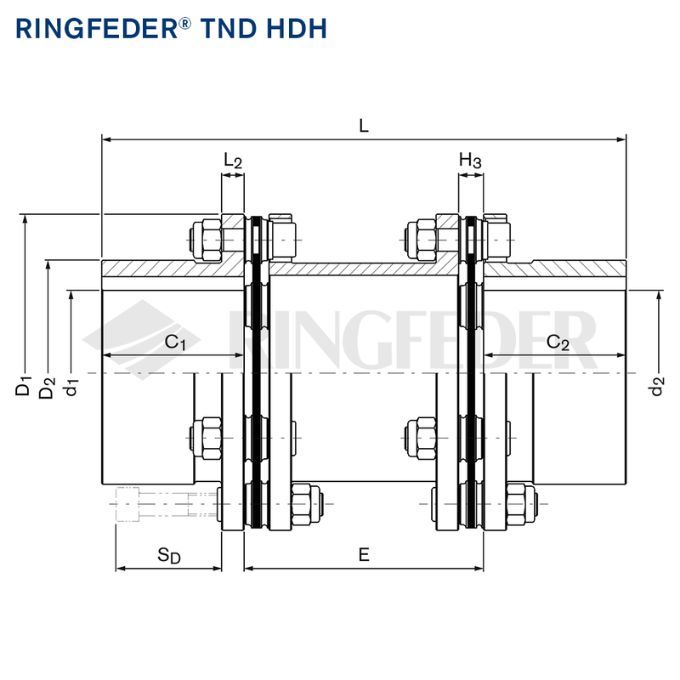

Product Specifications of Steel Disc Couplings TND HDH

TND HDH Catalogue	TND HDH Installation Instruction

Coupling Model	T_KNHD	T_KNHT	n_max	Dimensions [mm]					Gw
	Nm		1/min	d_1k; d_2k max	C₁/ C₂	E	D₁	L	[kg]
TND HDH - 47	170	230	12200	32	39,5	60	70,5	139	1,7
						100		179	1,8
						140		219	1,9
TND HDH - 63	320	420	9900	42	45	70	88	160	3,3
						80		170	3,3
						100		190	3,5
						140		230	3,7
TND HDH - 82	750	1050	7500	55	55	100	116	210	7,1
						140		250	7,4
						180		290	7,7
TND HDH - 98	1350	1750	6200	65	60	100	140,5	220	11,1
						140		260	11,5
						180		300	12
TND HDH - 118	2400	3000	5250	85	75	100	166,5	250	18,9
						140		290	19,6
						180		330	20,3
TND HDH - 141	4000	5200	4400	95	90	140	198,5	320	31,7
						180		360	32,5
TND HDH - 169	6500	8500	3650	115	125	140	238	390	60,2
						180		430	61,8
						250		500	64,5
TND HDH - 205	21000	26000	2950	140	160	200	295	520	119,6
						250		570	122,4
TND HDH - 254	36000	44000	2500	175	200	224	345	624	207,5
						250		650	209,5
						300		700	312,3
TND HDH - 262	74000	....	2050	180	210	280	420	700	261,9
TND HDH - 316	130000	....	1700	215	240	350	510	830	450,1

Why Choose Ringfeder Steel Disc Couplings TND HDH?

Steel disc couplings of the Ringfeder TND HDH type stand out with features such as being completely backlash- and maintenance-free, offering highly effective compensation for angular, axial, and radial shaft misalignment, and providing torsional rigidity with high stiffness.

They also minimize restoring forces during shaft misalignment thanks to an optimized disc pack design, bridge large shaft distances using spacers available in standard or customizable lengths, and meet ATEX standards for fire and explosion prevention.

The TND HDV coupling is widely used in applications such as pumps, fans, compressors, generator and turbine drives, and axial and radial blowers. It is also ideal for paper and printing machines, mixers, stirrers, extruders, lifting and traversing gears, as well as marine and water screw drives.
