Steel Disc Coup­lings TND XSX

Key Characteristics of the Steel Disc Coup­lings TND XSX

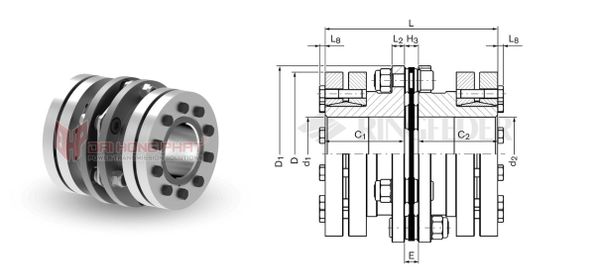

The Ringfeder TND XSX is a torsionally stiff, backlash-free steel disc coupling. It comprises two hubs X designed for use with shrink discs from the Ringfeder RfN 4061 series, and one disc pack S connected alternately to the hubs with high-strength screws.

The single-jointed design with a single disc pack effectively compensates for angular and axial shaft misalignments. High-quality Ringfeder Shrink Discs ensure a permanently backlash-free fixation of the coupling hubs on the connected shafts.

- The Steel Disc Couplings TND XSX is available in 7 sizes, offering versatility for various applications.

- The bore diameter ranges from 38 to 160 mm, accommodating different shaft sizes.

- The maximum outer diameter spans from 116 to 345 mm, ensuring compatibility with various spatial constraints.

- The hub distance varies between 10.5 and 32.5 mm, providing flexibility in installation.

- The overall length of the coupling ranges from 120.5 to 432.5 mm, making it adaptable to different system requirements.

- It operates at maximum rotational speeds between 2,100 and 3,600 RPM, ensuring high-performance capabilities.

- The coupling can handle torque values from 750 to 44,000 Nm (553.17 to 32,452.73 ft·lb), making it suitable for a wide range of torque transmission needs.

Product Specifications of Steel Disc Coup­lings TND XSX

TND XSX Catalog	TND XSX Installation Instruction

Why Choose Ringfeder Steel Disc Coup­lings TND XSX?

Steel disc couplings of the Ringfeder TND type XSX are particularly convincing due to their low restoring forces in case of shaft misalignment, thanks to the optimum disc pack design. They offer a quick and easy realization of a double-cardanic setup using two couplings and one spacer.

The TND XDX coupling is primarily used in pumps, fans, compressors, generator and turbine drives, axial and radial blowers, paper and printing machines, mixers and stirrers, extruders, lifting and traversing gears, marine drives, and water screw drives.
