Shock Absorbing Elements DEFORM® plus

DEFORM plus® Shock Absorbing Elements provide high-energy, maintenance-free impact absorption with up to 95% damping efficiency in a compact, cost-effective, and easy-to-replace design.

In Vietnam & some Southeast Asian countries, Dai Hong Phat is an authorized distributor of Ringfeder Power Transmission.

0₫

Size:

1-008-011-E

1-009-016-E

1-010-014-A

1-012-020-E

1-014-016-A

1-015-027-E

1-018-012-P

1-021-031-E

1-024-024-A

1-022-035-A

1-024-040-C

1-031-046-E

1-026-032-AS

1-032-052-E

1-037-060-E

1-036-084-C

2-020-033-E

2-020-022-A

2-020-033-A

2-028-014-A

2-024-030-A

2-044-034-A

3-085-150-A

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Product information

Key Characteristics of the Shock Absorbing Elements DEFORM plus

The DEFORM plus elastomeric shock absorbing elements are versatile and adaptable, catering to various applications with their wide range of sizes and configurations. These elements are designed to effectively absorb and dissipate kinetic energy, thereby reducing the impact and protecting the mechanical systems they are integrated into.

Their diverse configurations allow them to be tailored to specific requirements, making them suitable for different industries and use cases. This flexibility ensures that they can meet the unique demands of each application, providing reliable performance and enhancing the longevity and efficiency of the systems they support.

Operating Conditions for DEFORM plus

- Temperature Range: -25 up to +50 °C, ensuring reliability in diverse environmental conditions.

- Lubricant Resistance: Designed to resist degradation from lubricants, enhancing durability.

- Hydrolysis Resistance: Resistant to hydrolysis, preventing material breakdown from water exposure.

- Load Characteristics: Maintains almost equal properties under both dynamic and quasi-static loads. The force factor \( f_F \) increases with dynamic load, calculated as \( f_F ≈ 1 + 0.075 \times v \) (where \( v \) is the velocity in meters per second).

- UV Protection: For outdoor applications, it is recommended to coat or protect the units against UV rays to prevent damage.

- Thread Fixing: Plan threads generally within the unit and do not fix using a screw nut for optimal performance.

Applications of DEFORM plus

- Tool Manufacturing: Provides reliable shock absorption and energy dissipation.

- Wind Driven Turbines: Enhances stability and lifespan by managing dynamic loads effectively.

- Construction of Vehicles: Ensures smoother operation and protection against impact forces.

- Mechanical Engineering: Offers versatile solutions for various machinery, ensuring efficiency and reliability.

Learn more about: The History of Ringfeder Friction Springs

Product Specifications of Shock Absorbing Elements DEFORM plus

Catalogue of Shock Absorbing Elements DEFORM plus	Installation instruction of Shock Absorbing Elements DEFORM plus

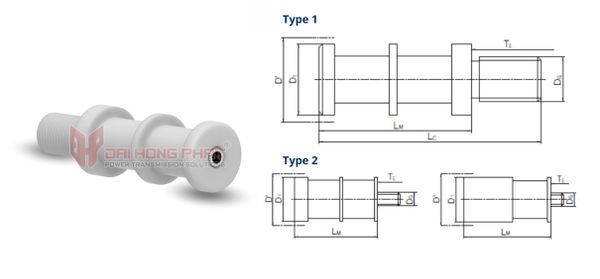

Type	W n	F n	s n	Dimensions [mm]						Gw
Type	Joule	kN	s n	D '	D 1.	L c	L M	t E	DG	[kg]
1-008-011-E	19	2,5	11,5	12	12,2	51,2	34,5	18	10	0,006
1-009-016-E	30	4,0	10,0	15	16,2	44,5	32,5	12	12	0,007
1-010-014-A	45	10,0	6,0	16	16,0	36,0	24,0	12	12	0,007
1-012-020-E	82	5,5	20,0	19	18,0	75,0	49,8	27	12	0,031
1-014-016-A	105	20,0	8,0	21	20,0	39,5	27,5	12	12	0,010
1-015-027-E	160	8,0	27,0	24	24,0	92,0	60,3	34	16	0,031
1-018-012-P	350	38,0	12,0	31	28,0	56,5	41,0	16	16	0,030
1-021-031-E	440	19,0	31,0	37	30,0	106,0	68,5	40	20	0,064
1-024-024-A	720	60,0	16,0	40	32,0	63,0	48,0	16	16	0,040
1-022-035-A	950	44,0	28,0	37	32,0	106,0	69,0	40	20	0,071
1-024-040-C	1000	33,0	40,0	44	34,0	120,0	85,0	50	20	0,080
1-031-046-E	1500	39,0	48,0	56	48,0	156,0	103,0	53	30	0,180
1-026-032-AS	1970	80,0	32,0	60	44,6	90,0	72,1	31	12	0,060
1-032-052-E	2000	52,0	50,0	60	48,0	171,0	116,3	60	30	0,230
1-037-060-E	3150	65,0	60,0	58	50,0	190,0	145,0	71	30	0,300
1-036-084-C	4700	70,0	81,0	65	58,0	230,0	169,5	100	30	0,500
2-020-033-E	310	13,0	30,0	30	34,5	---	106,0	20	12	0,340
2-020-022-A	425	26,0	20,0	30	34,5	---	90,0	15	12	0,320
2-020-033-A	620	26,0	30,0	30	34,5	---	106,0	20	12	0,340
2-028-014-A	700	70,0	14,0	42	34,5	---	54,0	14	12	0,220
2-024-030-A	1000	45,0	30,0	40	34,5	---	103,0	23	12	0,400
2-044-034-A	3000	110,0	33,0	61	50,0	---	89,0	16	12	0,583
3-085-150-A	70000	680,0	144,0	134	141,0	---	485,0	51	24	10.7

Why Choose Ringfeder Shock Absorbing Elements DEFORM plus?

DEFORM plus Shock Absorbing Elements are one-time use damping components designed for high energy absorption. They convert kinetic energy from an impact into deformation energy. These units boast high damping properties (up to 95%), low costs, small installation space, easy replacement of used elements, maintenance-free operation, no corrosion, and a rectangular force-travel diagram. Their versatility in design makes them suitable for various applications.

Each damping element is composed of a thick-walled cylinder made of high-quality thermoplastic resin. Upon impact, the cylinder folds or shrinks into a discus-shaped structure, effectively absorbing the impact energy and providing reliable protection for the system.
