Key Characteristics of the Industrial Buffers

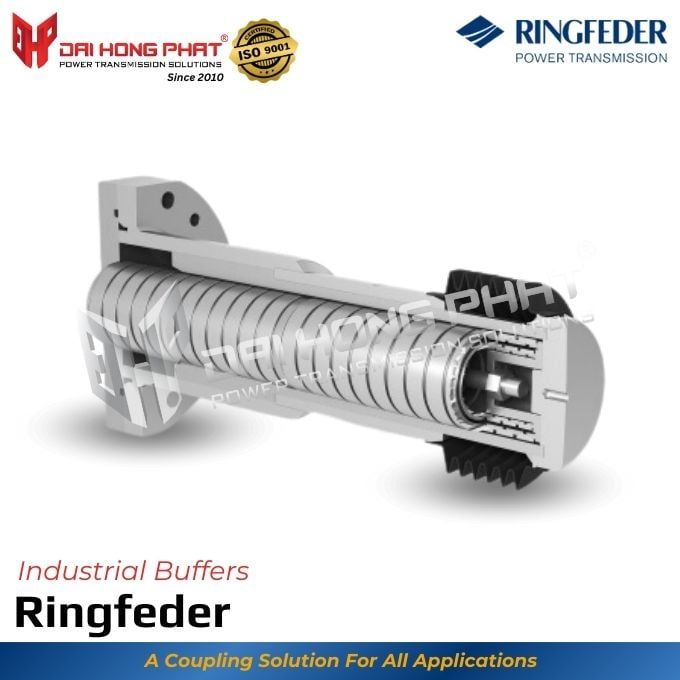

Alongside our standalone spring columns, we offer high-performance RINGFEDER^® Industrial Buffers as complete, application-specific buffer versions.

These are available in various shapes and sizes to suit diverse use cases, including mechanical engineering, raw material extraction and processing, and the aviation and aerospace industry. Common designs include push-pull units for effective vibration damping or absorption, and slipping clutches for reliable overload protection.

- RINGFEDER^® Industrial Buffers offer superior advantages over conventional damping solutions. They provide high spring work at low weight and volume, ensuring efficient use of the spring material.

- The buffers deliver high damping capability, with standard damping at 66%, allowing for quick absorption of energy and suppression of resonance effects.

- These buffers maintain their spring work and damping effect regardless of load speed, providing consistent performance in all conditions.

- They are designed to be overload-safe in block position, preventing damage from excessive stresses.

- Additionally, they are temperature-independent, maintaining consistent performance from -20°C to +60°C, and are generally maintenance-free, requiring no relubrication.

Product Specifications of Industrial Buffers

Industrial Buffers Catalogue	Industrial Buffers Installation Instruction

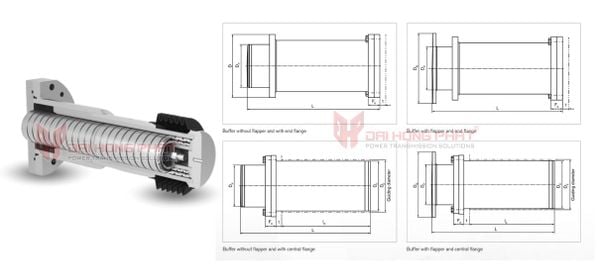

Size	Type	Diagram				Buffer Dimensions			Gw
		Fv	F	s	W	L	D	DB	Gw
		kN		mm	J	mm			kg
1	06300	6	54	27	820	202	112	150	10
2				37	1100	262			12
3				55	1640	374			17
4				64	1900	434			19
5				74	2200	494			20
6	08000	7	83	33	1500	230	122	200	13
7				46	2050	306			16
8				66	2950	428			23
9				79	3550	505			26
10				92	4150	582			28
11	10000	10	125	45	3000	300	142	250	22
12				61	4100	397			26
13				89	6000	571			37
14				105	7050	667			42
15				121	8150	763			45
16	12400	20	200	51	5600	366	178	250	39
17				65	7150	454			45
18				102	11200	696			64
19				116	12800	784			75
20				130	14300	872			78
21	16600	10	350	75	13900	500	235	370	85
22				95	17500	630			105
23				140	25900	880			145
24				165	30500	1040			160
25				190	35000	1200			165
27	19600	20	600	105	32000	620	-	-	153

Why Choose Ringfeder Industrial Buffers?

RINGFEDER® Industrial Buffers offer numerous advantages over conventional damping solutions, such as high spring work at low weight and volume, and superior damping capability. They provide consistent performance regardless of load speed and are overload-safe in block position. Additionally, these springs are temperature-independent, maintenance-free, and can be arranged in parallel or series for specific applications.

Besides standalone spring columns, RINGFEDER® Industrial Buffers are available in complete buffer versions customized to specific applications and customer needs. These springs come in various shapes and sizes to suit a wide range of industries, including mechanical engineering, raw material extraction and processing, and the aviation and aerospace sectors. Common designs include push-pull units for effective vibration damping or absorption, and slipping clutches for reliable overload protection.
