Safety Couplings TNT 2424

Key Characteristics of the Safety Couplings TNT 2424

The Ringfeder TNT 2424 stands out as the premium clutch in the TNT series, offering exceptional performance and reliability.  In addition to its superior performance, the TNT 2424 is designed with ease of installation and handling in mind.

The TNT 2424 is engineered to eliminate kickback entirely, providing a smooth and uninterrupted power transmission. Overall, the Ringfeder TNT 2424 is a top-tier clutch that combines effective shaft misalignment compensation, ease of installation and handling, and a complete absence of kickback, making it a highly convincing and dependable choice for various industrial settings.

- Manufactured by Ringfeder in Germany, these couplings are designed with precision and reliability in mind.

- They feature a bore diameter range of 90 mm to 200 mm, ensuring versatility for various applications.

- The overall length of these couplings spans from 180 mm to 292 mm, catering to different installation requirements.

- With a torque capacity ranging from 1,950 Nm to an impressive 42,400 Nm, these couplings can handle both low and high-torque demands, making them suitable for a wide range of industrial applications.

- Their robust design and high-performance capabilities ensure that they deliver consistent and dependable results in demanding environments.

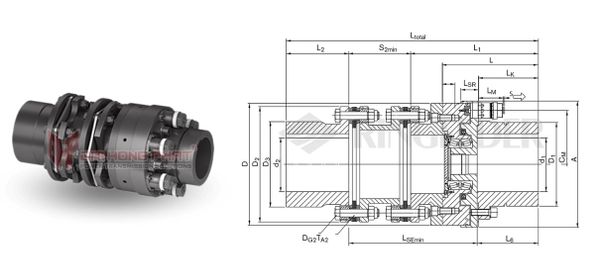

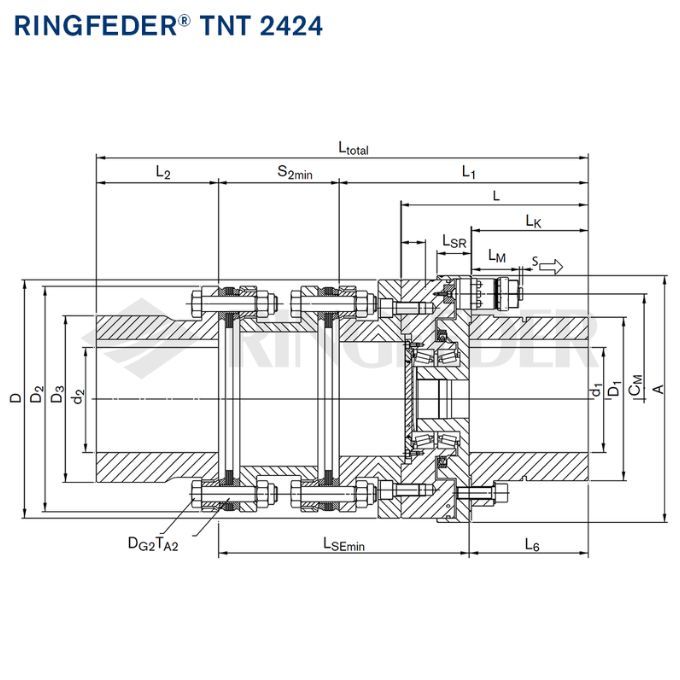

Product Specifications of Safety Couplings TNT 2424

TNT 2424 Catalogue	TNT 2424 Installation Instruction

Coupling Model	Modul version	Torque [Nm]		nmax	Dimensions [mm]				Gw
		TKN	Tmax	1/min	d1-d2 Max	A	D	L total	[kg]
058-090	a	1950	5800	3000	90-110	200	198,5	424	65
058-090	b	3900	5800	3000	90-110	200	198,5	424	65
058-090	c	5800	5800	3000	90-110	200	198,5	424	65
110-120	a	1850	11400	2700	110-120	242	234	512	86
110-120	b	5500	11400	2700	100-120	242	234	512	86
110-120	a	11000	11400	2700	110-120	242	234	512	86
227-160	a	2600	28000	2300	160-160	312	300	644	188
227-160	b	7550	28000	2300	160-160	312	300	644	188
227-160	a	15200	28000	2300	160-160	312	300	644	188
227-160	a	22700	28000	2300	160-160	312	300	644	188
424-200	a	3550	46000	1900	200-200	420	364	776	350
424-200	b	10600	46000	1900	200-200	420	364	776	350
424-200	a	21200	46000	1900	200-200	420	364	776	350
424-200	a	31800	46000	1900	200-200	420	364	776	350
424-200	a	42400	46000	1900	200-200	420	364	776	350

Why Choose Ringfeder Safety Couplings TNT 2424?

The Ringfeder TNT 2424 stands out as a top choice in the TNT series, thanks to its effective compensation of shaft misalignment, ease of installation and handling, and complete freedom from kickback.

This versatile clutch is utilized in a variety of applications, especially in construction machinery such as excavators, crushers, shredders, graders, and tunnel boring machines. It is also employed in rolling mills, steel mills, turbines, and industrial conveyor systems, showcasing its broad range of capabilities and reliability in demanding environments.
