Key Characteristics of the Safety Couplings TNT 2420

The Ringfeder TNT 2420 Safety Couplings is available in various sizes and dimensions and is specially designed for overload protection in heavy-duty industry.

Couplings with clutches of the TNT series also convince with their effective compensation of shaft misalignment, ease of installation and handling as well as absolute freedom from backlash.

- The TNT 2420 is manufactured by Ringfeder in Germany, is designed to offer exceptional performance and reliability.

- It features a bore diameter ranging from 90 mm to 200 mm, providing versatility for various applications.

- The overall length spans from 180 mm to 292 mm, accommodating different setup requirements.

- With a torque capacity of 1,950 Nm to 42,400 Nm, it can handle both low and high-torque demands, making it suitable for a wide range of industrial uses.

- Additionally, the TNT 2420 is available in numerous sizes and dimensions, ensuring that it can be tailored to meet specific needs and deliver optimal performance across diverse industrial settings.

Product Specifications of Safety Couplings TNT 2420

TNT 2420 Catalogue	TNT 2420 Installation Instruction

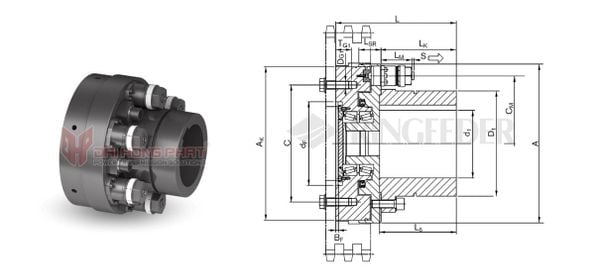

Coupling Model	Modul version	TKN	nmax	Dimensions [mm]					Gw
Coupling Model	Modul version	[Nm]	1/min	d1 min-max	A	Ak	D1	L	[kg]
058-090	a	1950	3000	25 - 90	200	190	120	180	40
058-090	b	3900	3000	25 - 90	200	190	120	180	40
058-090	c	5800	3000	25 - 90	200	190	120	180	40
110-120	a	1850	2700	40 - 120	242	234	165	200	48
110-120	b	5500	2700	40 - 120	242	234	165	200	48
110-120	a	11000	2700	40 - 120	242	234	165	200	48
227-160	a	2600	2300	55 - 160	312	300	214	245	95
227-160	b	7550	2300	55 - 160	312	300	214	245	95
227-160	a	15200	2300	55 - 160	312	300	214	245	95
227-160	a	22700	2300	55 - 160	312	300	214	245	95
424-200	a	3550	1900	70 - 200	420	410	262	292	180
424-200	b	10600	1900	70 - 200	420	410	262	292	180
424-200	a	21200	1900	70 - 200	420	410	262	292	180
424-200	a	31800	1900	70 - 200	420	410	262	292	180
424-200	a	42400	1900	70 - 200	420	410	262	292	180

Why Choose Ringfeder Safety Couplings TNT 2420?

The Ringfeder TNT 2420 has twelve specially developed and standardized switching units placed around the coupling. This ensures particular flexibility with regard to the disassembly torque as well as the size and design of the device.

Ringfeder TNT 2420 is widely used in factories and in all light, medium and heavy industrial production lines: Wood industry, Cement, industrial steel production, port industry, food, coil production, etc. to protect against sudden power outages or overloads.
