Pin & Bush Couplings RLP

Pin & Bush Couplings RLP

The RINGFEDER^® Pin & Bush Couplings of the RLP series have been specially developed for applications with high mechanical loads. Their robust steel hubs offer significantly greater strength than cast hubs, while the flexible polyurethane elements ensure reliable, shock-absorbing torque transmission.

In Vietnam & some Southeast Asian countries, Dai Hong Phat is an authorized distributor of Ringfeder Power Transmission

0₫

Size:

RLP BWB 90

RLP BWB 125

RLP BWB 145

RLP BWB 165

RLP BWB 195

RLP BWB 240

RLP BWB 290

RLP BWB 320

RLP BWB 350

RLP BWB 380

RLP BSB 165-15

RLP BSB 165-25

RLP BSB 195-25

RLP BSB 240-25

RLP BSB 290-30

RLP BSB 320-35

RLP BSB 320-40

RLP BSB 350-40

RLP BSB 380-40

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Product information

Key Characteristics of the Pin & Bush Couplings RLP

The RLP series are fail-safe shaft-shaft connection with pins and elastic rubber elements for high demands. It also known as "Khớp nối bulong đai ốc RLP". The elastomer elements are made of polyurethane (PU) and the hubs (coupling halves) are made of steel.

The Couplings offer a number of practical advantages:
- Puncture-proof, corrosion-protected (phosphate coating)
- Low-maintenance, require no lubrication and allow wear parts to be replaced quickly.
- Compensate for axial, radial and angular misalignment between shafts.

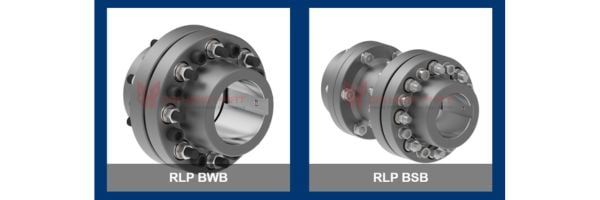

Pin & Bush Couplings of the RINGFEDER® RLP series are two main types:

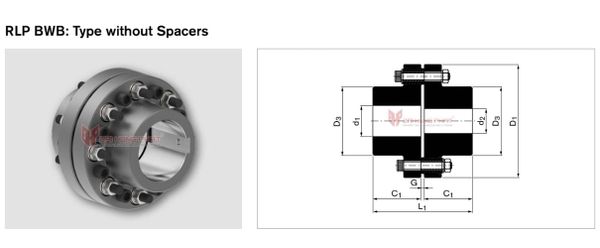

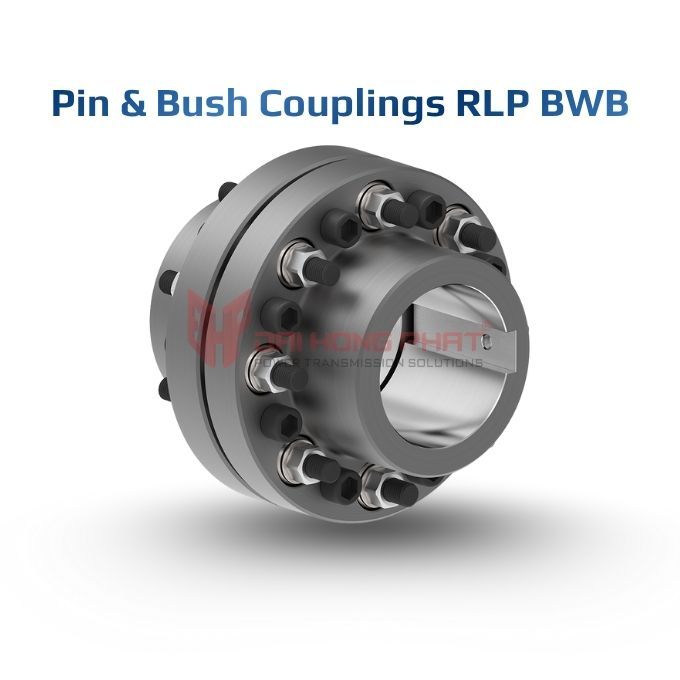

- Standard version without spacer (Type BWB)

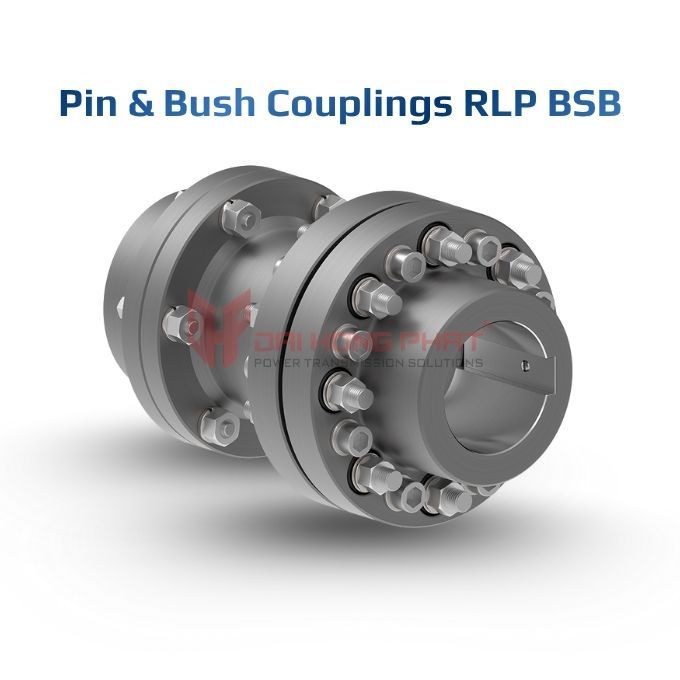

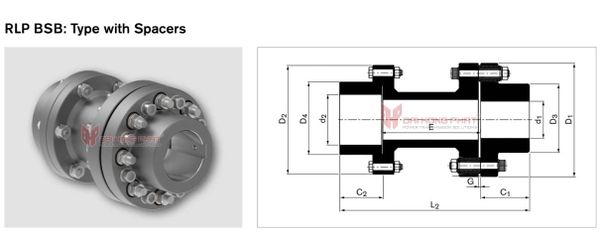

- Version with spacer (Type BSB) for larger shaft distances.

Product Specifications of Pin & Bush Couplings of the RINGFEDER^® RLP series

- 10 Sizes
- Bore Diameter d1/d2: 16-180 mm (0.63-7.087 inch)
- Outer Diameter D1: 90-380 mm (3.543-14.961 inch)
- Total Length L1: 83-368 mm (3.268-14.488 inch)
- Torque TKN: 325-37,500 Nm (239.71-27,658.58 ft·lb)

Pin & Bush Couplings RLP Catalogue	RLP Installation Introduction

Size Coupling	T_KN	n_max	Dimenssions [mm]				Gw [kg]
Size Coupling	Nm	1/min	d1/d2 Min.	d1/d2 max	D1	L1	Gw [kg]
RLP BWB 90	325	6000	16	35	90	83	2.53
RLP BWB 125	900	5800	16	50	125	103	6
RLP BWB 145	1500	5500	16	58	145	135	10.1
RLP BWB 165	2100	4800	22	75	165	145	14.7
RLP BWB 195	4200	4400	32	90	195	185	27.13
RLP BWB 240	9000	3600	42	110	240	215	46.6
RLP BWB 290	17000	3000	60	130	290	256	86.2
RLP BWB 320	22000	2600	70	150	320	308	124.3
RLP BWB 350	30000	2400	76	160	350	328	161.7
RLP BWB 380	37500	2200	80	180	380	368	206.4

>> Learn more about Pin & Bush Couplings RLP BSB at:

Application of Pin and Bush Couplings RLP

Because of its robust design and ability to handle high torques with misalignment compensation, the RLP coupling is suited for heavy-duty industrial drive systems, such as:
- Pump and blower drives (shaft-shaft connections in fluid handling)
- Gearboxes in heavy machinery
- Conveyors, escalator drives, fan systems
- Steel, cement and mining industry drives where shock loads, vibration and reliability matter
>>> In short: anywhere you need a safe, reliable coupling between shafts under demanding conditions.

Why Choose Pin & Bush Couplings RLP?

- They provide backlash-free torque transmission even under extreme conditions thanks to their elastic pin & bush construction.
- Good durability: the polyurethane bush elements dampen vibration and shock, reducing wear on connected equipment.
- Versatile sizing across bore, diameter and torque classes allows matching to many industrial drives.
- Adjustable torque by selecting number of pins gives flexibility in design/engineering.
- The spacer version allows for wider shaft spacing without changing hub alignment.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder Pin & Bush Couplings RLP throughout Vietnam.

Our products are brand new, complete with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing high-quality Ringfeder RLP coupling at competitive prices. We maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
