Metal Bellows Couplings GWB EKN
Key Characteristics of the Metal Bellows Couplings GWB EKN
The Metal Bellows Coupling GWB PKA offers a backlash-free transmission of torque, ensuring high precision in the transmission of the rotational angle. It is available in different torsional stiffness levels, catering to various application needs.
The coupling boasts a compact design and low moment of inertia, making it highly efficient. The metal bellows are crafted from stainless steel, ensuring durability and resistance to wear and tear.
- This coupling is designed for simple and safe assembly, allowing for easy installation and removal, available in 6 different sizes, providing flexibility for various application needs. It also as known "khớp nối encoder GWB EKN".
- It effectively compensates for radial, axial, and angular misalignment, maintaining optimal performance.
- The coupling is maintenance-free, eliminating downtime and ensuring continuous operation.
- It is not sensitive to temperature variations between -30°C and +100°C, making it suitable for diverse environmental conditions.
- The nominal torques for this coupling range from 0.1 to 5000 Nm, providing a wide range of applications.
- Specification of GWB EKN encoder coupling:
+ Bore Diameter d: 3-28 mm
+ Outer Diameter D: 16-40 mm
+ Overall Length L: 20-54 mm
+ Rot. Speed nmax: 15,000 1/min
+ Torque T: 0.5-12 Nm

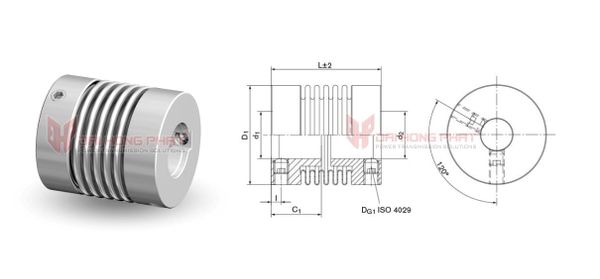

Product Specifications of Metal Bellows Couplings GWB EKN
| GWB EKN Catalogue | GWB EKN Installation Instruction |
 | |
| Size Coupling | TKN | nmax | Dimensions [mm] | Gw | |||
| [Nm] | 1/min | d1;d2 min - max | d1K;d2K min - max | D1 | L | [kg] | |
| GWB EKN - 4 | 0,5 | 15000 | 3 - 9 | 6 - 8 | 16 | 20 | 0,005 |
| GWB EKN - 4 | 0,5 | 15000 | 3 - 9 | 6 - 8 | 16 | 23 | 0,006 |
| GWB EKN - 4 | 0,5 | 15000 | 3 - 9 | 6 - 8 | 16 | 26 | 0,007 |
| GWB EKN - 9 | 1,1 | 15000 | 3 - 9 | 6 - 8 | 16 | 21 | 0,006 |
| GWB EKN - 9 | 1,1 | 15000 | 3 - 9 | 6 - 8 | 16 | 25 | 0,007 |
| GWB EKN - 9 | 1,1 | 15000 | 3 - 9 | 6 - 8 | 16 | 28 | 0,008 |
| GWB EKN - 15 | 1,75 | 15000 | 3 - 12 | 6 - 10 | 20 | 25 | 0,012 |
| GWB EKN - 15 | 1,75 | 15000 | 3 - 12 | 6 - 10 | 20 | 30 | 0,014 |
| GWB EKN - 20 | 2,4 | 15000 | 3 - 16 | 6 - 14 | 25 | 26 | 0,016 |
| GWB EKN - 20 | 2,4 | 15000 | 3 - 16 | 6 - 14 | 25 | 32 | 0,018 |
| GWB EKN - 20 | 2,4 | 15000 | 3 - 16 | 6 - 14 | 25 | 36 | 0,02 |
| GWB EKN - 45 | 5,5 | 15000 | 6 - 22 | 6 - 16 | 33 | 39 | 0,048 |
| GWB EKN - 45 | 5,5 | 15000 | 6 - 22 | 6 - 16 | 33 | 48 | 0,052 |
| GWB EKN - 100 | 12 | 15000 | 6 - 28 | 6 - 25 | 40 | 44 | 0,048 |
| GWB EKN - 100 | 12 | 15000 | 6 - 28 | 6 - 25 | 40 | 54 | 0,058 |
Why Choose Ringfeder Metal Bellows Couplings GWB EKN?
The coupling can achieve higher torques without increasing its dimensions, enhancing its performance while maintaining a compact design. The extended bore ranges offer versatility in various applications. Customer-specific solutions are available, catering to unique requirements. The design enhances safety in applications by preventing errors such as incorrect screw tightening torques.
Ringfeder GWB EKN encoder coupling excels in a wide range of applications. They are perfect for axial and vertical drive pumps, high dynamic gate drives, spindle lifts, linear units, packaging machines, machine tools, and special machines.
As the authorized representative of Ringfeder Germany in Vietnam
Dai Hong Phat Corp proudly showcases their dedication to delivering high-quality Ringfeder products and services. This prestigious authorization underscores their commitment to meeting the needs of Vietnamese customers.
By holding this authorization, Dai Hong Phat Corp guarantees that customers in Vietnam receive genuine Ringfeder products along with the essential technical support needed for optimal application and performance.
---------------------------------------------------------------------------------------
