Key Characteristics of the Metal Bellows Couplings GWB DKN

Thanks to its compact design, the Metal Bellows Coupling model 'DKN' is ideally suited for backlash-free connections in confined spaces. It also as known "khớp nối encoder GWB DKN".

The coupling is mounted on both driver and driven components using clamping hubs, ensuring secure and efficient attachment. The high-quality construction and premium materials used in the 'DKN' model guarantee maximum durability and long-lasting performance.

Additionally, this coupling excels in various applications where space constraints are a significant concern, providing reliable torque transmission and compensation for misalignments. The precision engineering of the 'DKN' model makes it an excellent choice for achieving high-performance in demanding conditions.

- The coupling is available in 6 different sizes, accommodating various application needs.

- The bore diameter ranges from 3 to 24 mm, while the outer diameter spans from 16 to 40 mm.

- The overall length varies between 21 and 57 mm, offering flexibility in different setups.

- It operates at maximum rotational speeds of up to 15,000 RPM, ensuring high-performance levels.

- The torque capacity ranges from 0.5 to 12 Nm, making it suitable for applications requiring precise torque transmission and effective misalignment compensation.

Product Specifications of Metal Bellows Couplings GWB DKN

GWB DKN Catalogue	GWB DKN Installation Instruction

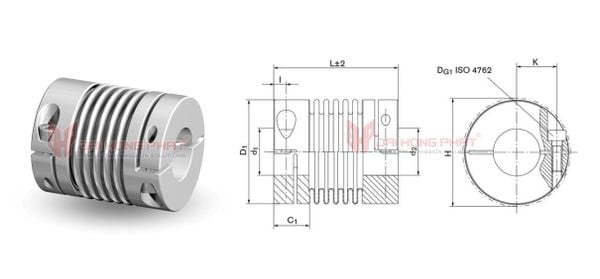

Size Coupling	TKN	n_max	Dimensions [mm]				Gw
Size Coupling	[Nm]	1/min	d_1;d₂ min - max	d_1K;d_2K min - max	D1	L	[kg]
GWB DKN - 4	0,5	15000	3 - 8	6 - 8	16	21	0,005
GWB DKN - 4	0,5	15000	3 - 8	6 - 8	16	24	0,006
GWB DKN - 4	0,5	15000	3 - 8	6 - 8	16	28	0,007
GWB DKN - 9	1,1	15000	3 - 8	6 - 8	16	23	0,006
GWB DKN - 9	1,1	15000	3 - 8	6 - 8	16	26	0,007
GWB DKN - 9	1,1	15000	3 - 8	6 - 8	16	30	0,008
GWB DKN - 15	1,75	15000	3 - 10	6 - 10	20	26	0,012
GWB DKN - 15	1,75	15000	3 - 10	6 - 10	20	30	0,014
GWB DKN - 20	2,4	15000	3 - 14	6 - 14	25	32	0,02
GWB DKN - 20	2,4	15000	3 - 14	6 - 14	25	38	0,022
GWB DKN - 20	2,4	15000	3 - 14	6 - 14	25	42	0,024
GWB DKN - 45	5,5	15000	5 - 17	6 - 17	33	41	0,058
GWB DKN - 45	5,5	15000	5 - 17	6 - 17	33	50	0,062
GWB DKN - 100	12	15000	5 - 24	6 - 24	40	47	0,06
GWB DKN - 100	12	15000	5 - 24	6 - 24	40	57	0,07

Why Choose Ringfeder Metal Bellows Couplings GWB DKN?

The GWB DKN coupling is versatile and finds application in various fields. It is used in pumps with both axial and vertical drives, ensuring efficient power transmission. In high dynamic portal drives, it provides reliable performance under dynamic conditions.

The coupling is also suitable for spindle lifting units and linear units, where precision and accuracy are essential. In packaging machines, it ensures smooth and consistent operation. Additionally, it is utilized in machine tools and special machines, contributing to enhanced productivity and performance in specialized applications.

As the authorized representative of Ringfeder Germany in Vietnam

Dai Hong Phat Corp proudly showcases their dedication to delivering high-quality Ringfeder products and services. This prestigious authorization underscores their commitment to meeting the needs of Vietnamese customers.

By holding this authorization, Dai Hong Phat Corp guarantees that customers in Vietnam receive genuine Ringfeder products along with the essential technical support needed for optimal application and performance.

---------------------------------------------------------------------------------------
