Metal Bellows Couplings GWB CKN

Key Characteristics of the Metal Bellows Coup­lings GWB CKN

The GWB CKN production series provides customers with extensive application flexibility. Its flange mounting allows for numerous connection options, including the addition of hubs, flanges, and fittings. It also as known "khớp nối encoder GWB CKN".

The metal bellows couplings are made of stainless steel, offering durability and resistance to wear and corrosion. The coupling is designed for simple and safe assembly, facilitating easy installation.

It compensates for radial, axial, and angular misalignments, ensuring optimal performance even when the connected shafts are not perfectly aligned. It is free of wear, maintenance-free, and requires no downtimes, enhancing its reliability and longevity.

- The GWB CKN coupling is available in 12 sizes, providing a wide range of options for different applications.

- The bore diameter ranges from 22 to 145 mm, while the outer diameter spans from 46 to 230 mm.

- The overall length varies between 36 and 143 mm, offering versatility in various setups.

- The coupling can operate at maximum rotational speeds of 3,000 to 13,900 RPM, ensuring high-performance levels.

- It is capable of handling torque values ranging from 22 to 5,000 Nm, making it suitable for a variety of torque transmission requirements.

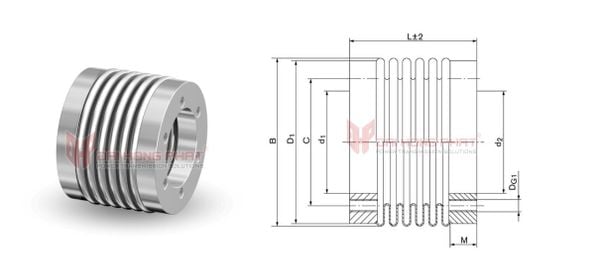

Product Specifications of Metal Bellows Coup­lings GWB CKN

GWB CKN Catalogue	GWB CKN Installation Instruction

Why Choose Ringfeder Metal Bellows Coup­lings GWB CKN?

The Metal Bellows Couplings GWB CKN offer higher torques while maintaining the same dimensions, a compact design, and extended bore ranges. They ensure higher safety in applications and are ideal for mechanical engineering, where precise torque or rotary motion transmission from shaft to shaft is essential.

Ringfeder GWB CKN encoder couplings are suitable for applications for: axial and vertical drive pumps, high dynamic gate drives, spindle lifts, linear units, packaging machines, machine tools, special machines,..
