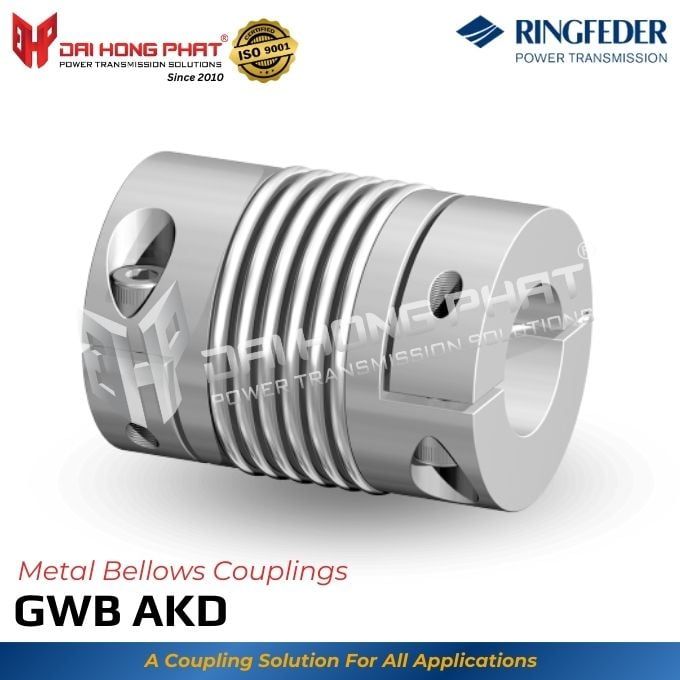

Metal Bellows Couplings GWB AKD

Key Characteristics of the Metal Bellows Coup­lings GWB AKD

The Metal Bellows Couplings GWB AKD production series features traditional metal bellows couplings suitable for a wide range of applications. It also as known "khớp nối encoder GWB AKD".

They are characterized by backlash-free torque transmission, high torsional stiffness, and excellent compensation of angular, axial, and radial misalignments. Additionally, operational safety and easy assembly make the AKD series a favorable choice.

- The couplings perform reliably in a wide temperature range between -30°C and +100°C, making them suitable for various environmental conditions. They can handle nominal torques ranging from 0.1 to 5000 Nm, making them versatile for different torque transmission requirements.

- The coupling is available in 9 sizes, offering flexibility for different applications.

- The bore diameter ranges from 8 to 75 mm, accommodating various shaft sizes. The outer diameter spans from 45 to 132 mm, ensuring compatibility with different spatial constraints. The overall length varies between 71 and 140 mm, providing versatility in installation.

- The coupling operates at maximum rotational speeds ranging from 5,000 to 12,700 RPM, ensuring high-performance capabilities.

- It can handle torque values between 18 and 800 Nm, making it suitable for a wide range of torque transmission needs.

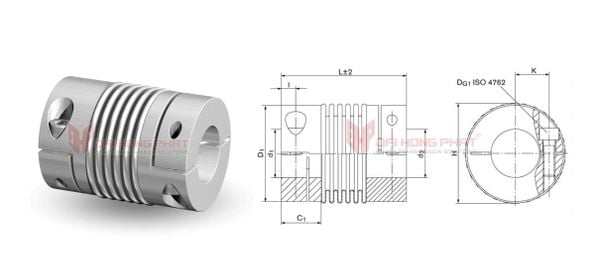

Product Specifications of Metal Bellows Coup­lings GWB AKD

GWB AKD Catalogue	GWB AKD Installation Instruction

Why Choose Ringfeder Metal Bellows Couplings GWB AKD?

The Metal Bellows Couplings GWB AKD offer higher torques while maintaining the same dimensions, featuring a compact design and extended bore ranges. They enhance safety in applications and are ideal for mechanical engineering, ensuring precise torque or rotary motion transmission between shafts.

Ringfeder GWB AKD encoder couplings are suitable for various applications, including axial and vertical drive pumps, high dynamic gate drives, spindle lifts, linear units, packaging machines, machine tools, and special machines.

As the authorized representative of Ringfeder Germany in Vietnam

Dai Hong Phat Corp proudly demonstrates their commitment to delivering top-quality Ringfeder products and services. This prestigious authorization underscores their dedication to meeting the needs of Vietnamese customers.

With this authorization, Dai Hong Phat Corp ensures that customers in Vietnam receive genuine Ringfeder products along with essential technical support for optimal use and performance.

---------------------------------------------------------------------------------------
