Metal Bellows Couplings GWB AKN

Key Characteristics of the Metal Bellows Coup­lings GWB AKN

The 'AKN' series metal bellows couplings are renowned for their trusted quality and enhanced torsional stiffness. The design features reduced shafts that ensure high stiffness while effectively compensating for angular, axial, and radial misalignments. These couplings connect to shafts using clamping hubs on both sides, providing a secure and reliable attachment. It also as known "khớp nối encoder GWB AKN".

- The coupling is free of wear and maintenance-free, which means it operates without requiring regular maintenance and eliminates downtimes.

- It remains effective in temperatures ranging from -30°C to +100°C, ensuring reliable performance in various environmental conditions. The coupling can handle nominal torques ranging from 0.1 to 5000 Nm.

- Its compact design and low moment of inertia contribute to high efficiency. The metal bellows are made of stainless steel, providing durability and resistance to corrosion.

- The coupling is available in 8 sizes, with bore diameters from 8 to 64 mm and outer diameters from 45 to 119 mm.

- Its overall length ranges from 63 to 111 mm.

- The coupling operates at maximum rotational speeds of 4,900 to 12,700 RPM and can handle torque values between 18 and 600 Nm.

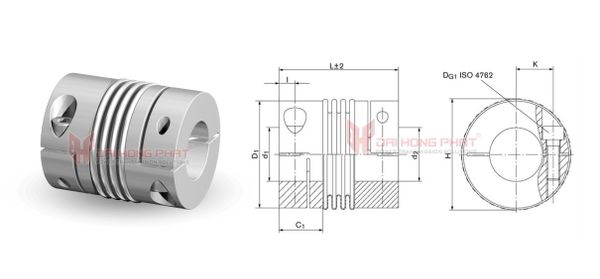

Product Specifications of Metal Bellows Coup­lings GWB AKN

GWB AKN Catalogue	GWB AKN Installation Instruction

Why Choose Ringfeder Metal Bellows Coup­lings GWB AKN?
