Gear Coup­lings TNZ ZCA-BT / ZCB-BT

Key Characteristics of the Gear Couplings TNZ ZCA-BT / ZCB-BT

Thanks to lubrication with high-quality grease with extreme pressure additives, Ringfeder gear couplings TNZ ZCA-BT/ZCB-BT achieve minimal restoring forces and thus ensure reliable, almost wear-free operation. It also known as "khớp nối răng vỏ thép TNZ ZCA-BT/ZCB-BT".

The unique modular system offers the user maximum flexibility in assembling precisely tailored coupling designs – the appropriate components, e.g. brake discs or drums and torsion shafts, can be adapted to specific requirements.

- TNZ ZCA-BT / ZCB-BT rigid helical gear couplings are made of high-quality steel and feature a very compact design.

- They compensate for angular, radial, and axial misalignment, making them versatile for various applications.

- These couplings are suitable for use at temperatures up to +120°C.

- Elastomeric O-rings can be replaced without moving the coupled machines, ensuring easy maintenance.

- They support bores up to 270 mm, handle torque up to TKn = 195,000 Nm and TKmax = 390,000 Nm, and can operate at speeds up to nmax = 6,000 rpm.

Learn more: Gear Couplings TNZ: Solutions for Heavy Load Applications

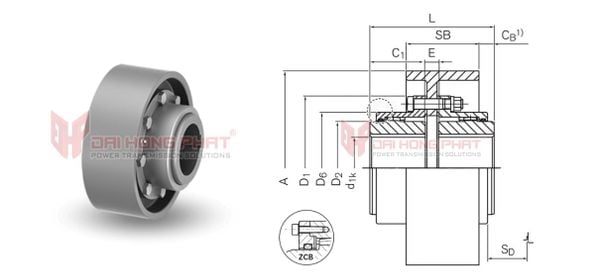

Product Specifications of Gear Couplings TNZ ZCA-BT / ZCB-BT

TNZ ZCA-BT / ZCB-BT Catalogue	TNZ ZCA-BT / ZCB-BT Installation Instruction

Coupling Model	Torque [Nm]		nmax	Dimension [mm]				Gw
Coupling Model	T_KN	T_Kmax	1/min	d1k min - max	D1	D2	L	[kg]
ZCA-BT-69	1750	3500	2850	12_50	111	59	100	9.5
ZCA-BT-85	2750	5500	2300	18 - 60	152	85	114	13.6
			2300		152	85	116	18.5
			1820		152	85	118	28.7
ZCA-BT-107	5500	11000	2300	28 - 75	178	107	140	23.8
			1820		178	107	142	51.5
			1450		178	107	144	51.5
ZCA-BT-133	8500	17000	1820	40 - 95	213	133	172	44
ZCA-BT-133	8500	17000	1450	40 - 95	213	133	174	61.5
ZCA-BT-152	13500	27000	1820	50 - 110	240	152	200	54.8
ZCA-BT-152	13500	27000	1450	50 - 110	240	152	202	72.1
ZCA-BT-179	22000	44000	1450	60 - 130	280	179	233	92.6
ZCA-BT-179	22000	44000	1150	60 - 130	280	179	234	122.1
ZCA-BT-209	35000	70000	1450	70 - 155	318	209	263	119.9
			1150		319	209	264	149.4
			910		318	209	269	207.3
ZCA-BT-234	43000	86000	1150	80 - 170	346	234	296	174.9
			910	85 - 170	346	234	304	232.5
			800	85 - 170	346	234	308	289.5
ZCA-BT-254	68000	136000	1150	95 - 190	389	254	326	222.2
			910		389	254	331	279.3
			800		389	254	338	335.7
